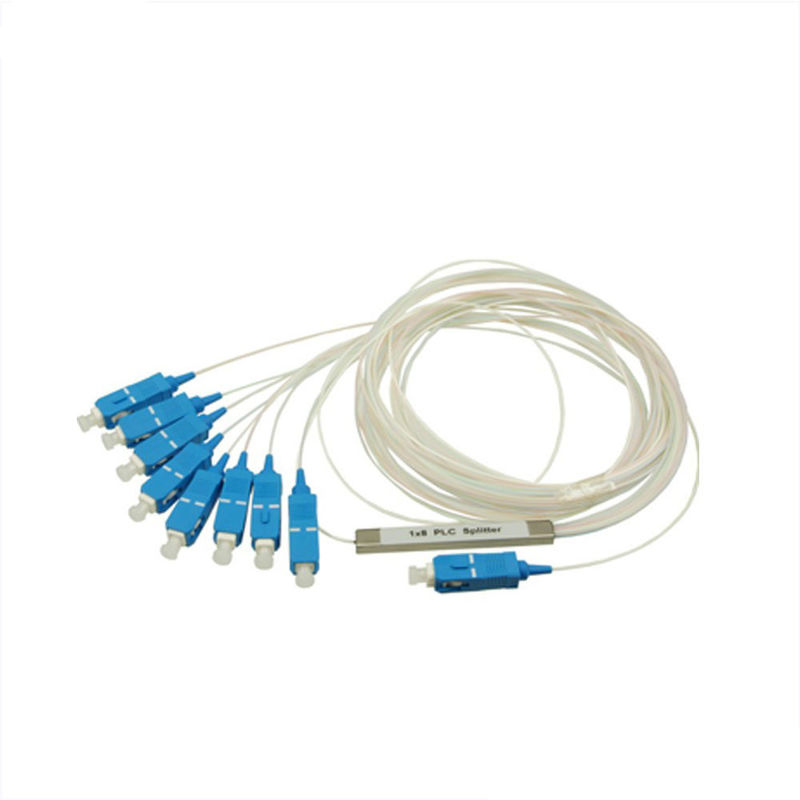

SC / ST / FC Coupler Fiber Optic Splitter Single Mode PLC Internet Application

SC / ST / FC Coupler Fiber Optic Splitter Single Mode PLC Internet Application

    • SC / ST / FC  Coupler Fiber Optic Splitter Single Mode PLC Internet Application
    • SC / ST / FC  Coupler Fiber Optic Splitter Single Mode PLC Internet Application
  • SC / ST / FC  Coupler Fiber Optic Splitter Single Mode PLC Internet Application

    Product Details:

    Place of Origin: Shenzhen China
    Brand Name: New Light
    Certification: CE , ISO ,RoSH
    Model Number: LC / FC / SC / ST / E2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: foam + carton box
    Delivery Time: 2-10 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Brand Name: New Light Fiber Type: 0.9
    Connector Type: LC / FC / SC / ST / E2000 Operating Wave: 1260-1650
    Mode Type: Single Mode OEM / ODM: Acceptable
    Fiber Length: As Your Requirement Warranty: 3 Years
    Delivery Time: 2-10 Working Days After Receive Payment Payment: T/T , L/C , Paypal , Westen Union , Money Gram
    Products Name: SC / ST / FC Coupler Fiber Optic Splitter PLC Internet Application








    Description



    SC / ST / FC Coupler fiber optic splitter PLC internet application





    Overview

    This optical splitter use Planer Light wave Circuit (PLC) technology for split ratio 2, 4, 8,16, 32 and 64. Optical splitter micro tube type refers to the port 0.9 mm slip-on fiber multi channel direct output with a compact design and easy to use.Application for FTTXnetwork, LAN/WAN or CATV network.



    PLC splitter(Planar Lightwave Circuit) is a type of optical power management device that is fabricated using silica optical wave guide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.



    Parameter 4 Channel 8 Channel 16 Channel
    Mux Demux Mux Demux Mux Demux
    Channel Wavelength(nm) 1270~1610
    Center wavelength Accuracy(nm) ±0.5
    Channel Spacing(nm) 20
    Channel Pass band(@-0.5dB bandwidth (nm) >14
    Insertion Loss(dB) ≤1.4 ≤2.6 ≤5.0
    Channel Uniformity (dB) ≤0.5 ≤0.5 ≤0.5
    Channel Ripple (dB) 0.3
    Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
      Non-adjacent N/A >40 N/A >40 N/A >40
    Insertion Loss Temperature Sensitivity (dB/℃) <0.005
    Wavelength Temperature Shifting (nm/℃) <0.002
    Polarization Dependent Loss (dB) <0.1
    Polarization Mode Dispersion (PS) <0.1
    Directivity (dB) >50
    Return Loss(dB) >45
    Maximum Power Handling(mW) 500
    Operating Temperature(℃) -5~+75
    Storage Temperature (℃) -40~85
    Package dimension(mm) 1. L100 x W80 x H10 ( 2 CH~8CH Module)
    2. L120xW800xH18 (9 CH~18CH Module)



    • CATV;
    • Active device termination;
    • Telecommunication networks;
    • Metro;
    • Local Area Networks;
    • Data processing networks;
    • Test equipment;
    • Premise installation;
    • Wide Area Networks








    Company Introduction


    New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.

    Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.

    Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.

    Products with high reputation and feedback from all customers!

    Please contact us if any we can support and cooperate together!




    Quality control




    Packing



    • Packaging : bags&carton box
    • Shipping: International Express: Fedex, DHL, UPS, TNT and EMS , or by sea ..If you have another

    preferred carrier, please notify us in advance.

    • FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
    • DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.





    Delivery and payment


    1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
    2. 30% deposit in advance , 70% balance paid before delivery .




    Our Services

    • "One to one" heart to heart service: Sales representative serve for five clients only. We look forward the continuing long-term services for you, but not just one or two times' co-operation.
    • Perfect after-sales service :24-hour designated telephone number, e-mail and customer manager
    • Long warranty : 3 years warranty . We can polish or test it for free if the cable is not artificial damaged . (but you need to pay for freight ) .
