1 X 8 SC PC Fiber Optic Cable Splitter , FBT Optical Cable Coupler FTTH / CATV

1 X 8 SC PC Fiber Optic Cable Splitter , FBT Optical Cable Coupler FTTH / CATV

    • 1 X 8 SC PC Fiber Optic Cable Splitter , FBT Optical Cable Coupler FTTH  / CATV
    • 1 X 8 SC PC Fiber Optic Cable Splitter , FBT Optical Cable Coupler FTTH  / CATV
  • 1 X 8 SC PC Fiber Optic Cable Splitter , FBT Optical Cable Coupler FTTH  / CATV

    Product Details:

    Place of Origin: Shenzhen China
    Brand Name: New Light
    Certification: CE , ISO ,RoSH
    Model Number: LC / FC / SC / ST / E2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: foam + carton box
    Delivery Time: 2-10 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Brand Name: New Light Fiber Type: 0.9
    Connector Type: LC / FC / SC / ST / E2000 Operating Wave: 1260-1650
    Mode Type: Single Mode OEM / ODM: Acceptable
    Fiber Length: As Your Requirement Warranty: 3 Years
    Delivery Time: 2-10 Working Days After Receive Payment Payment: T/T , L/C , Paypal , Westen Union , Money Gram
    Products Name: FTB Coupler / PLC







    Description

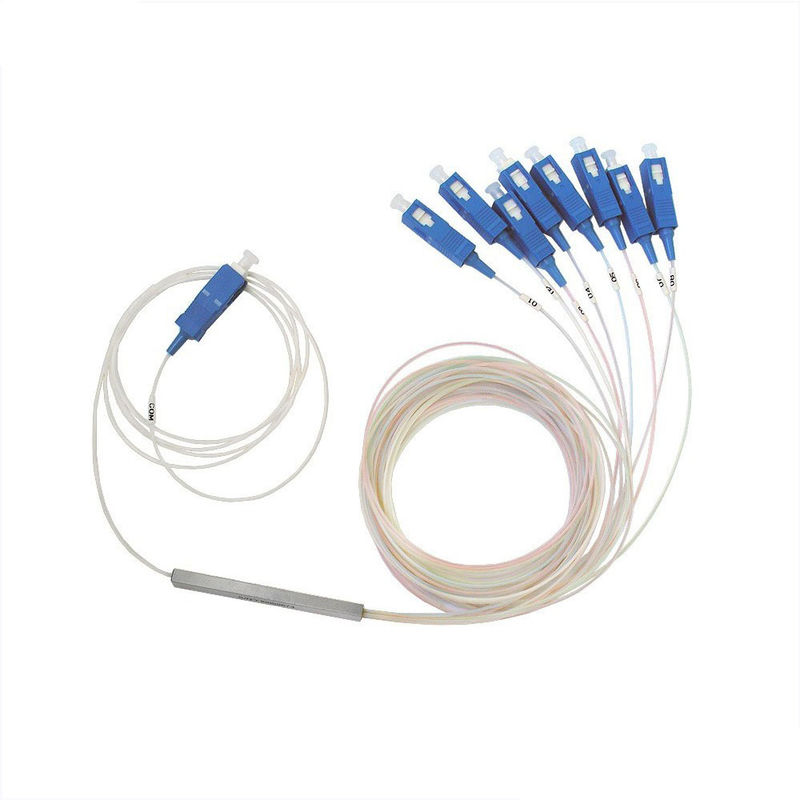

    0.5 meter 1 x 8 SC PC fiber optic splitter FBT Coupler FTTH / CATV







    Hongkong New light optics technology limited  is a manufacturer of optical fiber communication equipment . factory located in Shenzhen ,China.



    We have optical fiber patch cord , pigtail ,  MPO / MTP ,E2000 , MU , MTRJ ,SMA 905/906 , PLC, FWDM , CWDM , adaptor , attenuator , armoured patch cord , pull far optical fiber patch cord , indoor and outdoor drop cable , fan-out  cable patch cord , transceiver , quick assembly connector , distribution box , 1U tray , terminal box / ODF unit box , fiber fusion stray



    Optical Couplers can couple the optical signals in the coupling area, and then re-distribute the light power. The key parameters include operating wavelength, bandwidth, and excess loss, coupling ratio, PDL and so on.


    Steel tube type plc splitter Application:

    Fiber to The Home (FTTH)
    Passive optical networks (PON)
    Local Area Networks (LAN)
    Cable Television (CATV)
    Test Equipment





    Steel tube type plc splitter key features and the applications

    Key Features Applications
    - Low IL Key Features - FTTX (FTTP, FTTH, FTTN, FTTC)
    - High reliability - Local Area Networks (LAN)
    - High channel counts - Test Equipment
    - Wide wavelength range - CATV
    - Large operating temperature range - Analog/Digital Passive Optical Networks (PON)
    - Excellent Environmental & Mechanical Stability



    1×N Steel tube type plc splitter Specifications
    Port Configuration ch 1x2 1x4 1x8 1x16 1x32 1x64 1x128
    Fiber Type   SMF-28e, G652, G655, G657 (or Customized)
    Operating Wavelength   1260~1650
    IL dB ≤4.1 ≤7.4 ≤10.5 ≤13.5 ≤16.8 ≤20.4 ≤23.7
    UL dB ≤0.5 ≤0.6 ≤0.8 ≤1.0 ≤1.3 ≤1.8 ≤2.1
    PDL dB ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.4
    RL dB ≥55
    Operating Temperature °C -40~+85
    Storage Temperature °C -40~+85
    Steel tube size mm

    40*4*4

    50*7*4

    60*12*4










    Company Introduction


    New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.

    Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.

    Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.

    Products with high reputation and feedback from all customers!

    Please contact us if any we can support and cooperate together!






    Packing



    • Packaging : bags&carton box
    • Shipping: International Express: Fedex, DHL, UPS, TNT and EMS , or by sea ..If you have another

    preferred carrier, please notify us in advance.

    • FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
    • DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.


    1 X 8 SC PC Fiber Optic Cable Splitter , FBT Optical Cable Coupler FTTH  / CATV


    Delivery and payment


    1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
    2. 30% deposit in advance , 70% balance paid before delivery .




    Our Services

    • "One to one" heart to heart service: Sales representative serve for five clients only. We look forward the continuing long-term services for you, but not just one or two times' co-operation.
    • Perfect after-sales service :24-hour designated telephone number, e-mail and customer manager
    • Long warranty : 3 years warranty . We can polish or test it for free if the cable is not artificial damaged . (but you need to pay for freight ) .
