12 Fibers MPO MTP Cable with IEC Standard 61754-7 Compliance and TIA-568-C Structured Cabling

Brand Name:	NEW LIGHT
Model Number:	MPO MTP
MOQ:	1 pcs
Price:	0.1~100
Packaging Details:	OPP bag + Carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE , ISO , RoHS

Material:

PVC / LSZH

Connector Type:

MPO / MTP Male And Female

Mode:

Single / Multi Mode

Delivery Time:

2-7 Days After Receive Payment

Production:

500 Pcs Per Day

Length:

As Your Requirement

Shipping Term:

By Sea Or By Air

Fiber Cord:

8 Core / 12 Core / 32 Core

Products Name:

MTP MPO Cable Fan Out OM3 - 300 12 Fibers MPO Fiber Optic Patch Cable

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

PVC / LSZH Material MPO MTP Cable, Custom Length Fiber Optic Patch Cord Cable

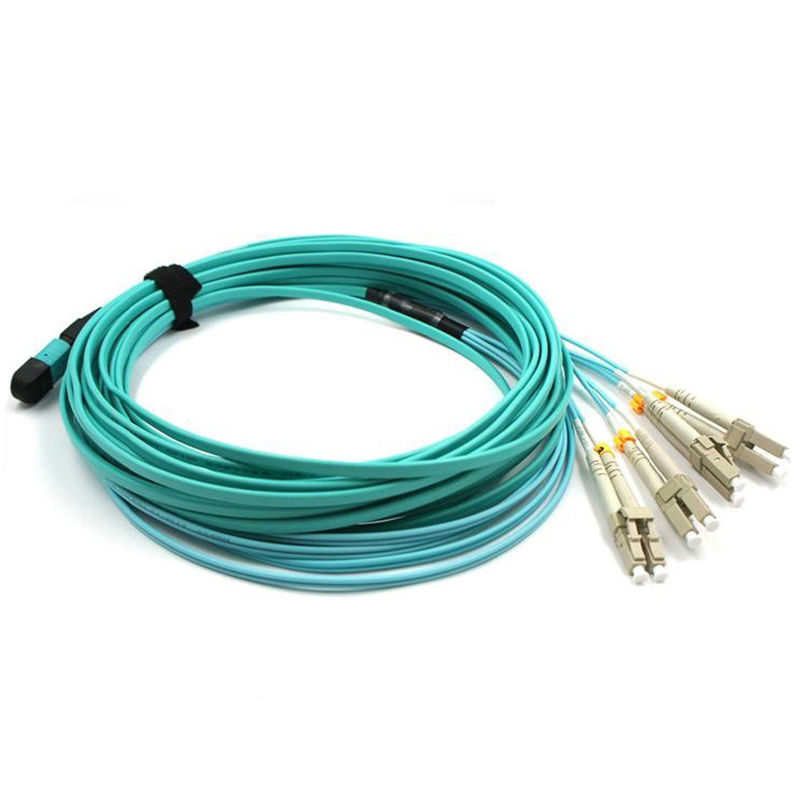

MTP MPO Cable Fan Out OM3 - 300 12 Fibers MPO Fiber Optic Patch Cable

High Performance in IL & RL
4,8,12 and 24 fiber connector terminations and assemblies
Designed for low loss and standard loss SM and MM applications
Economical solution for mass-termination of fiber
Suitable for MPO/MTP application
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade

Associated Standards

Meets IEC Standard 61754-7 & JIS C5982
Structured cabling per TIA-568-C
Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
Infiniband
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP

Connector Performance - MTP

Connector Type	12-Fiber Or 24Fiber MPO/MTP (non-pinned)
Polish	PC(MM); APC(SM)
Housing Colour	MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical (MTP/MPO)	≤ 0.10 dB
Insertion loss, max. (MTP/MPO)	≤ 0.3 dB
Return loss (MTP/MPO SM)	PC >55dB; APC> 60dB
Insertion Loss, Typical (LC/SC)	≤ 0.10 dB
Insertion loss, max. (LC/SC)	≤ 0.3 dB
Return loss (LC/SC SM)	PC >55dB; APC> 65dB
Durability(500 Matings)	< 0.2dB

Fiber Cable Performance

Fiber Type	OS2, OM1, OM2, OM3, OM4
Fiber Count	12,24,48,72,96,144 cores
Fiber Attenuation dB (OS2)	≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm)
Fiber Attenuation dB (OM1)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm)
Fiber Attenuation dB (OM2)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM3)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM4)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Min.Bandwidth:Overfilled Launch[Mhz-km]	OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm) ≥500(1300nm)OM4≥3500(850nm) ≥500(1300nm)
Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km]	OM3 ≥2000(850nm) OM4 ≥4700(850nm)
Outer diameter	12fiber:3.0 or 5.5mm ; 24fiber:3.0 or 5.5mm
Outer jacket Colour	OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple or Aqua)
Outer jacket material	LSZH,OFNP,OFNR
Tensile strength	>500N
Operating Temperature	-40 ~ +85°C

Ordering Information

Packing & Labeling

The package will be packed according to standard export requirements, customer satisfaction is our target.

Label printing: Customer logo or our label are available
Inner packing: 5pcs in one carton
Outer packing: the carton will be packed with sack, well protect carton from dust and wet
The transportation: By air, by sea, by DHL, Fedex TNT, UPS

Frequently Asked Questions

Q1. When can I get the price?

A1: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q2. Can you accept small order?

A2: Yes, small order is available in our company. We support new project of our customers as we know business is always from small to big. Your success is my business.

Q3. Can I order samples before placing the bulk order?

A3: Yes, sample is certainly for your test before the bulk order. It is normal process, we always deal with other clients.

Q4. What is your term of delivery?

A4: We accept EXW, FOB, CIF, CFR etc. You can choose the one which is the most convenient or cost effective for you.

Q5. What if there is quality problem when we get the goods?

A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future.
