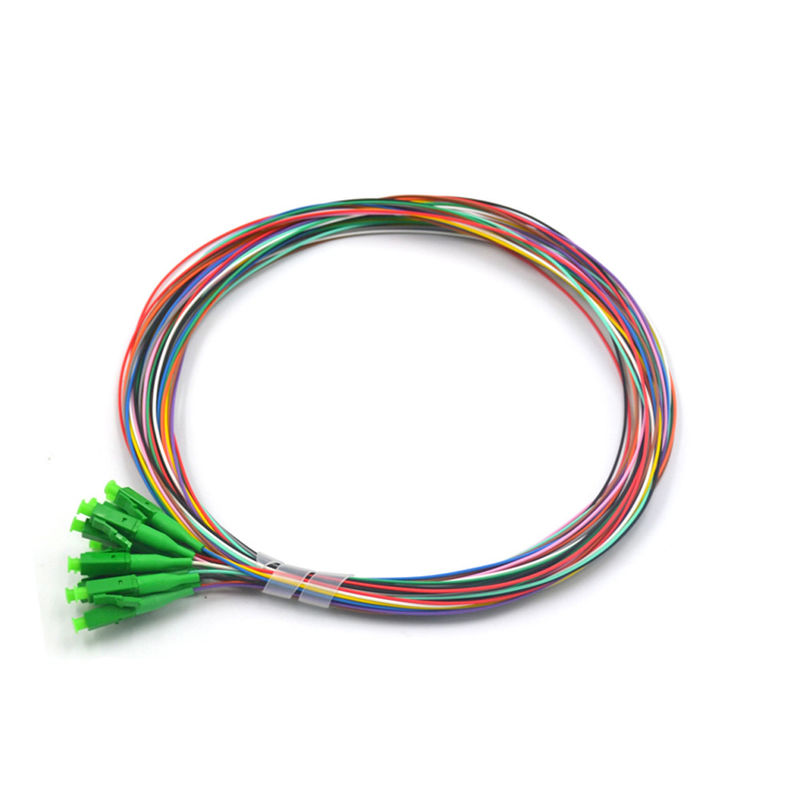

LC APC 12 Cores Fiber Optic Pigtail With High Precision Ceramic Ferrule

LC APC 12 Cores Fiber Optic Pigtail With High Precision Ceramic Ferrule

  • LC APC 12 Cores Fiber Optic Pigtail With High Precision Ceramic Ferrule
  • LC APC 12 Cores Fiber Optic Pigtail With High Precision Ceramic Ferrule
LC APC 12 Cores Fiber Optic Pigtail With High Precision Ceramic Ferrule
Product Details:
Place of Origin: ShenZhen , China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: SC/ PC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days after receive payment
Payment Terms: L/C, T/T, Western Union, MoneyGram , paypal
Supply Ability: 12000 pcs / day
Contact Now
Detailed Product Description
Products Name: LC APC 12 Cores Optic Fiber Pigtail Optical Fibre Communication Products For Box Connector Type: LC APC ( Can Be SC , FC ,ST , MPO , MTRJ , MU )
Cable Type: 12 Core Cable Color: According To Your Request
Cable Diameter: 0.9mm Cable Length: (can Be Customized )
Insertion Loss: ≤ 0.3 DB Return Loss: ≥ 60dB
Delivery Time: 2-7 Working Days Payment Term: 30% Deposit In Advance , 70% Balance Paid Before Delivery
High Light:

pigtail fiber optic cable

,

single mode fiber pigtails





LC APC 12 cores optic fiber pigtail optical fibre communication products for box





Description



 Connector type: FC, SC, LC, ST, MTRJ, MU
 Ferrule End-face: PC, UPC, APC
 Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, duplex or customized
Cable Diameter: 3.0mm, 2.0mm, 0.9mm
Cable Length: 1, 2, 3 meter or customized
 Cable type: PVC, LSZH, OM3,OM2,OM1



Specification



Fiber Type Connector Type Polishing Type IL RL
Single mode FC,SC,LC,ST,DIN,D4,MU PC <0.2dB >50dB
FC,SC,LC,ST,DIN,D4,MU UPC <0.2dB >55dB
FC,SC,LC,ST,DIN,D4,MU APC <0.2dB >60dB
MTRJ,MPO,ESCON,FDDI / <0.5dB >35dB





Feature



  1. Adopts high precision ceramic ferrule with good concentricity;
  2.  Based on advanced termination facilities & process, to deliver good geometry characteristics of apex offset & radius of curvature & fiber height;
  3.  100% inspected for optic characteristics & fiber end face finish;
  4.  Low insertion loss & return loss, clean and scratch-free end faces;
  5. Connectors SC/ST/FC/LC/MU/E2000/LX.5/DIN/D4/SMA/MTRJ(only in duplex) in option;
  6. 900um tight buffered cable as standard type, jacketed cable are also available;
  7. Many standard colors are optional for cable jacket & connector boots;
  8. Fire rating cables are in option with OFNR, LSZH & OFNP;
  9. Good performance endurance under circumstances changing.



LC APC 12 Cores Fiber Optic Pigtail With High Precision Ceramic Ferrule 0
















LC APC 12 Cores Fiber Optic Pigtail With High Precision Ceramic Ferrule 1





Payment term and delivery



1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram

2. 30% deposit in advance , 70% balance paid before delivery .

3. Package : internatinal standard package ( OPP bag + Carton Box )

4. Delivery time : 2-7 working days ( according to your quantity )after received payment .

5. Warranty : 3 year (after delivery ) .

6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
