12 Core SC APC single mode distribution Fiber Optic Pigtail For Telecommunication Networks

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

12 Core SC APC Single Mode Distribution Fiber Optic Pigtail For Telecommunication Networks

Connector Type:

SC APC

Cable Type:

12 Core

Cable Color:

Blue,orange,green ,brown,grey,white ,red ,black ,yellow,pink ,aqua

Cable Diameter:

0.9mm

Cable Length:

(can Be Customized )

Insertion Loss:

≤ 0.3 DB

Return Loss:

≥ 60dB

Wavelength:

1310/1550nm

Mode Type:

Single Mode G652D

Cable Material:

OEM/ODM:

Acceptable

Supply Ability:

1000000

Highlight:

single mode fiber pigtails

fibre optic tails

Product Description

12 Core SC APC single mode distribution Fiber Optic Pigtail For Telecommunication Networks

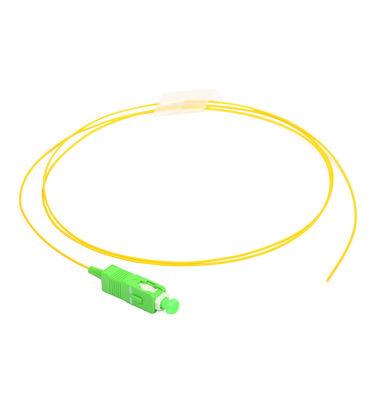

Fiber optic pigtail normal use in distribution box or terminal box , it is can be splicing .

fiber optic pigtail can be single mode and multi mode . Single mode have UPC and APC polished ferrule . it is according to your request .

New Light optics technology can produce simplex pigtail and 12 /24 and other count pigtail according to your requirements .

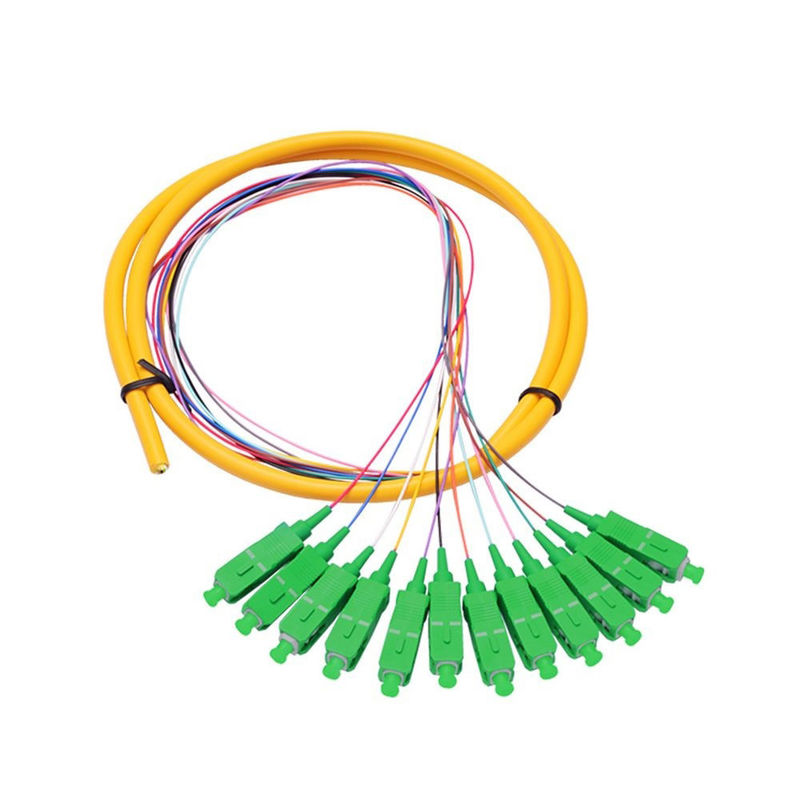

there are 12 color cable in this pigtail .and all the cable will have a common out jacket . the diameter of outjacket can be customized accoridng to your request .

Single mode out jacket is yellow color .and material can be PVC and LSZH .

The length of the distribution can be customized , normal is 0.5 meter ,1meter ,1.5meters

Parameter

products name	12 Core SC APC single mode distribution Fiber Optic Pigtail For Telecommunication Networks
mode type	single mode
cable count	12 core
core type	G655D ( G652D/G657A1/G657A2/G655)
cable color	12 colors ( can be customized according to your request )
cable diameter	0.9mm
patch cord length	( can be customized according to your request )
out jacket material	PVC ( can be PVC or LSZH )
insertion loss	≤ 0.3dB ( low insertion loss can be ≤ 0.35dB )
return loss	≥60 dB
wave length	1310/1550
core type	9/125um
connector type	APC
connector color	green
ferrule material	Ceramic
operater temperature	-40~ +85℃
cable print	standard print ( can customized )
OEM/ODM	acceptable
warranty	3 years after delivery
Delivery time	2-15 working days ( according to your quantity )

Application

1. Metro / CATV / Video
2. Telecommunication networks
3. FTTH FTTX applications
4. Optical Switch Interframe Connection
5. Asynchronous Transmission Mode ( ATM)
6. Premise installations

12 Core SC APC single mode distribution Fiber Optic Pigtail For Telecommunication Networks 0

12 colors cable

More connectory for reference

How to order

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA

2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )

3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )

4. Coating material : PVC / LSZH

5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on

6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5

7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
