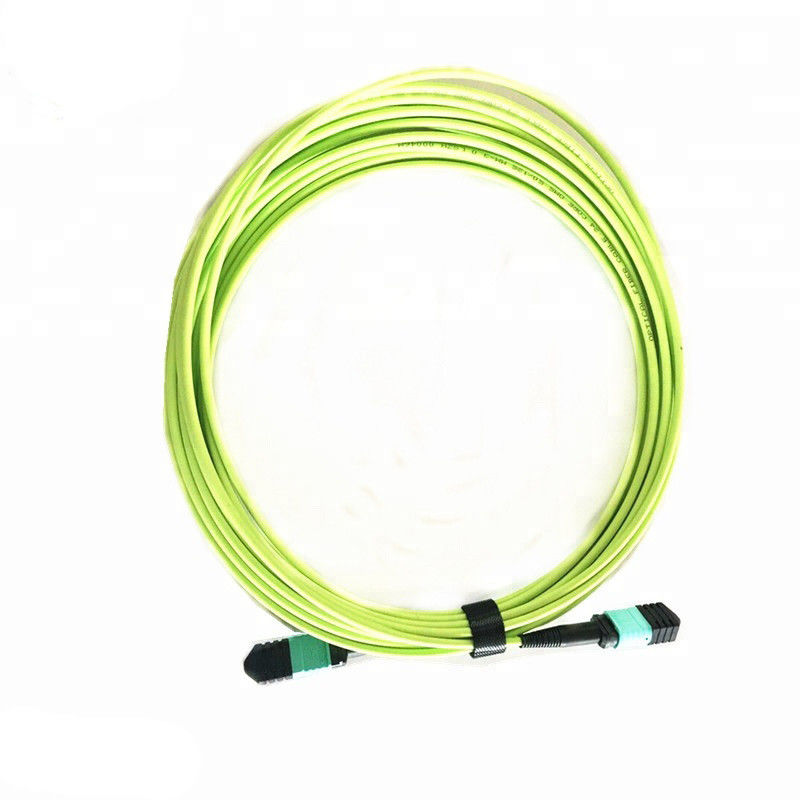

OM5 - 600 MPO Fiber Optic Patch Cord Multi Mode With Female Connector

OM5 - 600 MPO Fiber Optic Patch Cord Multi Mode With Female Connector
OM5 - 600 MPO Fiber Optic Patch Cord Multi Mode With Female Connector
OM5 - 600 MPO Fiber Optic Patch Cord Multi Mode With Female Connector OM5 - 600 MPO Fiber Optic Patch Cord Multi Mode With Female Connector OM5 - 600 MPO Fiber Optic Patch Cord Multi Mode With Female Connector

Large Image :  OM5 - 600 MPO Fiber Optic Patch Cord Multi Mode With Female Connector

Product Details:
Place of Origin: Shenzhen, China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: MPO MTP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + Carton box
Delivery Time: 2-7 Working days
Payment Terms: L/C, T/T, Western Union, MoneyGram , Paypal
Supply Ability: 500 pcs per day

OM5 - 600 MPO Fiber Optic Patch Cord Multi Mode With Female Connector

Description
Material: PVC / LSZH Connector Type: MPO / MTP Male And Female
Mode: Single / Multi Mode Delivery Time: 2-7 Days After Receive Payment
Production: 500 Pcs Per Day Length: As Your Requirement
Shipping Term: By Sea Or By Air Fiber Cord: 8 Core / 12 Core / 32 Core
Products Name: OM5 - 600 Cable MTP MPO Cable 12 Fibers MPO Male / Female Connector Patch Cord
High Light:

mpo fiber cable

,

mpo to mpo cable



OM5 - 600 cable MTP MPO cable 12 fibers MPO male / female connector patch cord



Product Description:



MTP/MPO Fiber Optic Patch Cable consists of multi core fiber optic cable and corresponding 4/8/12/24 core high density MPO/MTP connector. The connector might be female or male with guide pin. The fiber support single mode and multimode, the single mode fiber including G652D / G657A1 / G657A2, the multimode fiber including OM1 / OM2 / OM3 / OM4 / OM5, or bending insensitive multimode cable.



Feature



Customized, high adaptability

Optional different fiber cores and cable structure for different installation requirement

PVC, LSZH, OFNR, OFNP cable jacket available

Improved and simplified cabling, reduce cabling spacing

All patch cable are 100% tested, test report supplied with each cable assembly

Tests Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived



Application

Data Center

Fiber to the home

High density fiber optic cable management

40Gb/s or 100Gb/s Applications


Fiber Cable Performance

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 12,24,48,72,96,144 cores
Fiber Attenuation dB (OS2) ≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm)
Fiber Attenuation dB (OM1) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm)
Fiber Attenuation dB (OM2) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM3) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM4) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)



Min.Bandwidth:Overfilled Launch[Mhz-km]

OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm) ≥500(1300nm)OM4≥3500(850nm) ≥500(1300nm)
Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km] OM3 ≥2000(850nm) OM4 ≥4700(850nm)
Outer diameter 12fiber:3.0 or 5.5mm ; 24fiber:3.0 or 5.5mm

Outer jacket Colour



OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple or Aqua) -
Outer jacket material LSZH,OFNP,OFNR
Tensile strength >500N
Operating Temperature -40 ~ +85°C







Packing & Labeling





The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or our  brand are available
Inner packing: 5pcs in one carton
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation: By air ,by sea ,by DHL ,Fedex TNT ,UPS ...







FQA



Q1.When can I get the price?

A1:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



Q2. Can you accept small order?

A2:Yes, small order is available in our company. We support new project of our customers as we know business is always from small to big.Your sucess is my business.



Q3. Can I order samples before placing the bulk order?

A3:Yes, sample is certainly for your test before the bulk order. It is normal process, we always deal with other clients.



Q4.What is your term of delivery?

A4:We accept EXW, FOB, CIF, CFR etc. You can choose the one which is the most convenient or cost effective for you.



Q5.What if there is quality problem when we get the goods?

A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you ,Furthermore we will also take action to improve the quality in future.
