Product Details:
Place of Origin: Shenzhen, China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: MPO MTP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + Carton box
Payment Terms: L/C, T/T, Western Union, MoneyGram , Paypal
Supply Ability: 500 pcs per day

12 Strand MPO MTP Cable Customized Length 33 Foot Male / Female Connector Type

Description
Material: PVC / LSZH Connector Type: MPO / MTP Male And Female
Mode: Single / Multi Mode Delivery Time: 2-7 Days After Receive Payment
Production: 500 Pcs Per Day Length: As Your Requirement
Shipping Term: By Sea Or By Air Fiber Cord: 8 Core / 12 Core / 32 Core
Products Name: MPO MTP Cable Multimode OM3 Duple X 12 Strand 40 / 100 50 / 125 10 Meter ( 33 Foot )
High Light:

mpo fiber cable

,

mpo to mpo cable

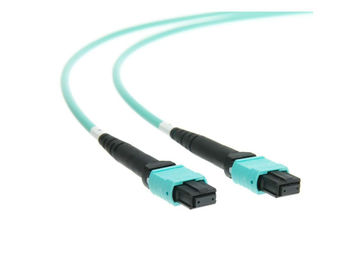

MPO MTP Cable Multimode OM3 Duple x 12 Strand 40 / 100 50 / 125 10 meter ( 33 foot )



This 10 meter (33 foot) high-quality Plenum approved fiber optic cable is 40/100 gigabit rated MTP / MTP (MPO). It features 12 fiber strands with an Aqua Blue colored jacket. Plenum cable is jacketed with a fire-retardant plastic jacket of either a low-smoke polyvinyl chloride (PVC) or a fluorinated ethylene polymer (FEP). Local building codes may require all cables run inside the walls or ceiling be Plenum rated. OM3 Multimode cables can come with many different fiber optic connector types and a couple different core sizes. This particular 40/100 gigabit Multimode fiber optic cable offers MTP connectors, is and has a 50/125 micron core. MTP is a perfect solution cable. It can bridge over older legacy 1G/10G networks to the 40G/100G networks. By using a MTP to LC breakout cable you can connect 12LC connections to single MTP device. You can also use the 12 strand MTP cable to use as a trunk line on the backbone of your network. As you can run a single cable to connect 12 devices the higher density is is perfect to condense the amount of cables you need to run, also saving on installation labor.



Feature


  • End 1 & End 2: MTP Female Fiber Jack
  • High-quality Plenum approved fiber optic cable
  • Bridge over older legacy 1G/10G networks to the 40G/100G networks


Specification


    Multimode Singlemode


IL

MPO

Single max :0.35db (L)
Single Max : 0.60db (G)

Single max :0.35db(L)
Single max :0.75db (G)

LC

MAX :0.10dB(L)
MAX :0.15 db (G)

Max:0.3db


RL

MPO >20DB >60DB (8 degree Angle Polish )
LC >30DB >50 db (UPC) >60DB(APC)


Mechanical

MPO <0.2DB, 200 times insertion
LC <0.2DB, 500 times insertion


Enviromental

working temperature -20~ +60 'C
storage temperature -40~ + 70'C







Packing & Labeling



The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or our lable are available
Inner packing: 5pcs in one carton
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation: By air ,by sea ,by DHL ,Fedex TNT ,UPS ...
