12 Core MPO / MTP High Density Push Pull tab Fiber Patch Cord Female Connectorl

Brand Name: New Light
Model Number: MPO MTP
MOQ: 1~10000
Price: 6~15
Packaging Details: OPP bag + Carton box
Payment Terms: L/C, T/T, Western Union, MoneyGram , Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE , ISO , RoHS
Connector Type:
MPO / MTP Female
Mode Type:
Multi Mode OM3-300
Fiber Count:
12 Core
Cable Material:
PVC
Cable Diameter:
3.0mm
Cable Color:
Aqua
Mathed:
A Type
Insertion Loss:
≤ 0.5 DB
Return Loss:
≥25dB
Wavelength:
850/1300
Patch Cord Length:
Customized
OEM/ODM:
Acceptable
Package:
1pcs / Bag
Supply Ability:
500 pcs per day
Highlight:

mpo fiber cable

,

mpo to mpo cable

Product Description

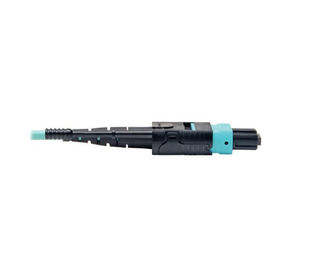

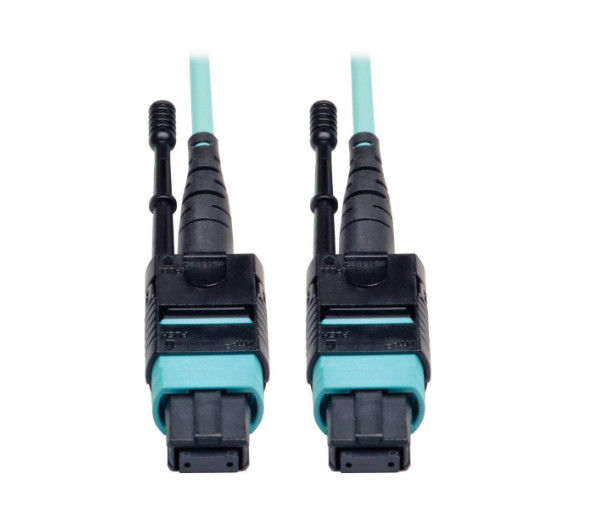

12 Core MPO / MTP High Density Push Pull tab Fiber Patch Cord Female Connector



With the addition of many more Ribbon array MPO configurations / ferrule choices available such as 4,8,12,16,24 and 32 fibers. Along with the ability to change the gender or polarity of the MPO connector on site a quick method of easily identifying the attributes of your MPO infrastructure is very beneficial. The pull tab also assist you in high density applications.



  • MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections
  • 12 times the density of SC style connectors
  • No need for long fan-out cables or individual long duplex cable runs
  • High Density design cuts down on installation costs
  • 50/125 OM3 Rated Multimode Fiber, 850nm
  • Plenum rated jacket
  • Unique cable ID label for Quality Control and Traceability
  • Each cable 100% tested for low insertion loss and back reflection



Designed for high-density fiber patching in data centers, the MTP/MPO Patch Cable with Push/Pull Tab Connectors ensures peak performance throughout your local area network. The N844-10M-12-P is OM3-rated for 10Gb Ethernet applications and can support speeds up to 40GbE.



It also supports 40GBASE-SR4 and 100GBASE-SR10 in applicable parallel optics networks. The N844-10M-12-P meets the most current industry standards, including IEEE 802.3ba and TIA LOMMF. For quality control and traceability, this cable features a serial number on the jacket.





products name 12 Core MPO / MTP High Density Push Pull tab Fiber Patch Cord Female Connectorl
mode type multi mode
cable count 22 core ( can be 4/8/12/16/24/32 core )
core type OM3-300 ( OM1/OM2/OM3-150/OM3-300/OM4/OM5)
cable color Aqua ( can be customized according to your request )
cable diameter 3.0 ( can be 3.0 and customized diameter )
patch cord length 6 meter ( can be customized according to your request )
out jacket material PVC ( can be PVC or LSZH )
insertion loss ≤ 0.5dB ( low insertion loss can be ≤ 0.35dB )
return loss ≥25 dB
wave length 850/1300
core type 50/125um
connector type female
Method  Method A  ( it have A/B/C three method )
connector color Aqua / Magenta /beige are ok
ferrule material plastic
operater temperature -40~ +85℃
cable print standard print ( can customized )
OEM/ODM acceptable
warranty 3 years after delivery
Delivery time 2-15 working days ( according to your quantity )






Method A



12 Core MPO / MTP High Density Push Pull tab Fiber Patch Cord Female Connectorl 0

How to order



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
