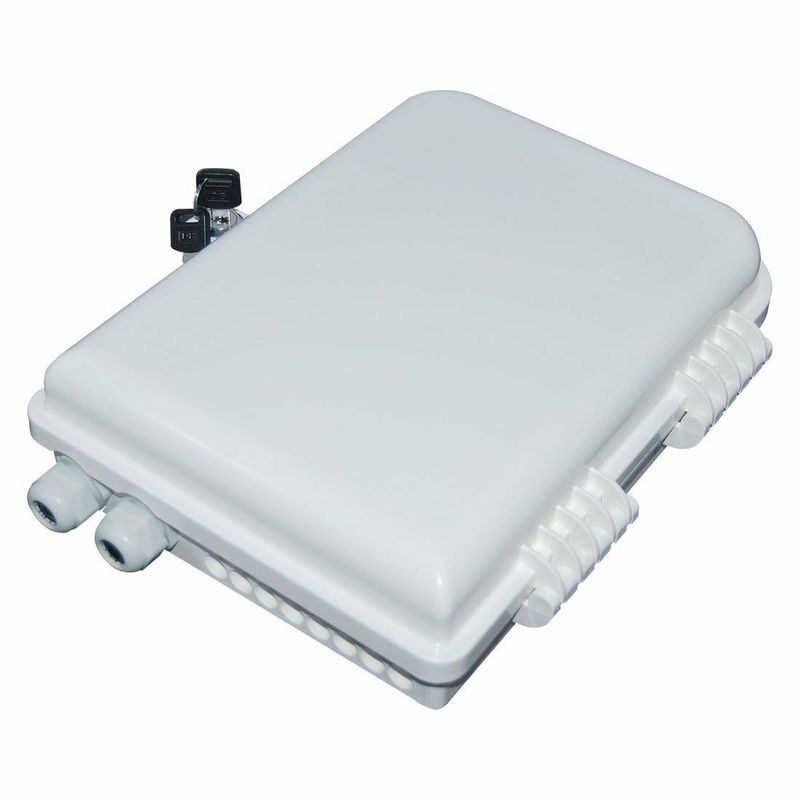

16 Core Fiber Optic Splitter Box , 11.8 X 10.2 X 3.5 Inches Fiber Optic Termination Box

Brand Name:	New Light
Model Number:	SC / LC
MOQ:	10
Price:	2~100
Packaging Details:	standard export package
Payment Terms:	T/T, Western Union, MoneyGram, paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

ABS / PC

Port Type:

16 Port

Weight:

2.4 Pounds

Specification:

11.8 X 10.2 X 3.5 Inches

Delivery Time:

2-10 Working Days After Receive Payment

Packing:

Standard Export Package

Payment Term:

T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM

Fiber Count:

16 Fiber

Use Type:

Supply Ability:

10,000 pcs per month

Highlight:

fiber optic termination box

wall mount fiber termination box

Product Description

16 Core Fiber Optic Splitter Box , 11.8 X 10.2 X 3.5 Inches Fiber Optic Termination Box

Easy to operate and maintain High qulity material Well wate Solid sturcure Trays can be increased or reduced according to the application .

16 core termination box can be use for 2/4/6/8/12/16 core as your requirements . but the maximun core is for 16 core . if you want to use for more , you can choose our other type can meet the demands .

The 16 core termination box can use for pigtail and PLC splitter , the instruction of inside is different .

We have 4/8/16/32/48/96 core termination box . and the material can be PC and ABS+PC .

The color of 16 core termination box have white color ,grey color and black color .

Technical Specification

Dimensions:11.8 X 10.2 X 3.5 Inches(W x H x D)

Material :Plastic (ABS+PC)

IP Protection level:IP65

Suitable for adapter type:SC Simplex / LC Duplex

Splice capacity:16 SC / 24 LC

Number of ports:16

Cable entry:2 (20mm)

Cable exit:Up to 28 simplex cables

Color:Grey (Standard)

Operating temperature:-40°C to +60°C

Installation type:Wall or Pole Mount

Description:

---The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

---The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Specification:

---Environmental requirement
Working temperature:-40°C~+85°C
Relative humidity:≤85%(+30°C)
Atmospheric pressure:70KPa~106Kpa

---Main technical data

Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times

Product name:	16 Core Fiber Optic Splitter Box , 11.8 X 10.2 X 3.5 Inches Fiber Optic Termination Box
water proof level	IP65
function	indoor and outdoor
installation type	wall amount
Application:	FTTH
Color:	white
Dimension:	11.8 X 10.2 X 3.5 Inches
Adaptor type:	SC / LC
Capacity:	8 /16 /24 /48/96 port
Packing:	1 pcs/box
Material:	ABS /PC
deliver time	3-15 working days after received payment

Delivery and payment

1. Delivery time : 2-15 working days after received payment
2.package: export sdandard package
3. payment term: T/T ,PAYPAL,westen union ,L/C . 30% deposit , 70%balance paid before delivery
4.warranty : 3 years
5.Delivery method : by aire ( DHL, UPS,FEDEX ,TNT,etc ) by sea

16 Core Fiber Optic Splitter Box , 11.8 X 10.2 X 3.5 Inches Fiber Optic Termination Box 0
