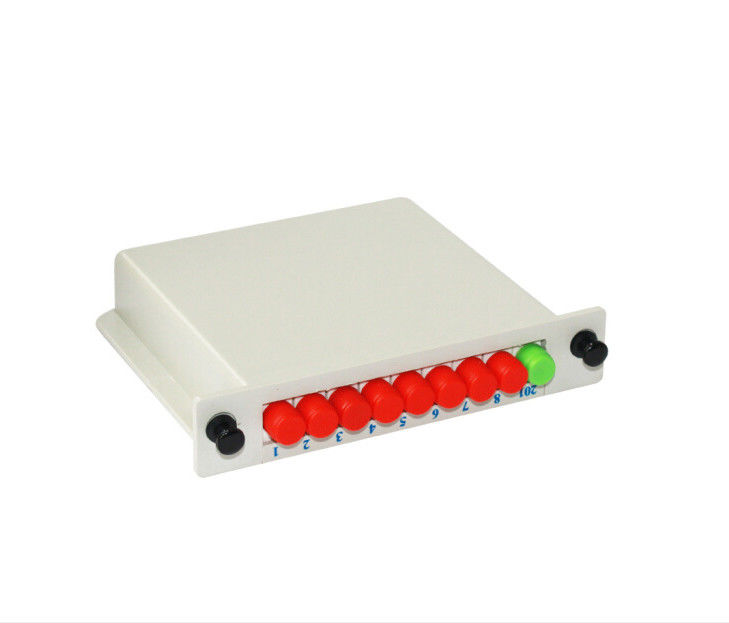

ABS Material Fiber Optic Cassette Low Insertion Loss With White Color

ABS Material Fiber Optic Cassette Low Insertion Loss With White Color

    • ABS Material Fiber Optic Cassette Low Insertion Loss With White Color
    • ABS Material Fiber Optic Cassette Low Insertion Loss With White Color
  • ABS Material Fiber Optic Cassette Low Insertion Loss With White Color

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: New Light
    Certification: CE / ISO / RoHS
    Model Number: MPO / MTP - LC / SC / FC / ST

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: foam + carton box
    Delivery Time: 2-10 working days after received payment
    Payment Terms: L/C, , T/T, Western Union, MoneyGram , paypal
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: ABS / PC Application: FTTH / FTTB/ FTTX Network
    Operating Temperature: -20° ~ +80 ° Max Capacity: 1X8/16/32/64 Cores
    Suitable Adaptor: LC / SC / ST / FC OEM/ ODM: Acceptable
    Deliery Time: 2-10 Working Days After Receive Payment Payment Method: T/T , Paypal , Western Union , Money Gram
    OEM / OEM: Acceptable Warranty: 3 Years
    Shipping: By Air Or By Sea





    Description



    FC Fiber Optic ABS material cassette PLC splitter white color



    PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.


    LGX Box PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.


    Installation is simple using a variety of connector types or fusion splicing.
    Drawing



    Noted: 1x2,1x4,1x8 LGX Box Type PLC Splitter has same size .


     PLC Splitter LGX Box Features


    Low insertion loss
    Low Polarization Dependent Loss
    Compact design
    Good channel-to-channel uniformity
    Wide Operating Wavelength: 1260~1650nm
    High Reliability and Stability
    Telcordia GR-1209-CORE-2001 Compliant
    Telcordia GR-1221-CORE-1999 Compliant


    Application


    Installed in Outdoor Cabinet and Floor Terminal Box
    FTTH Fiber to the home
    PON network
    CATV
    Fiber LAN



    Standard Operating Wavelength
    850nm,1310nm ,1550nm
    Insertion loss
    ≤0.3dB, additional loss variation is not more than 0.2dB, additional loss variation of not more than 5dB
    Return loss



    PC≥40dB,UPC≥50dB,APC≥60dB



    Dielectric strength
    ≥ 3KV (DC) / 1min without breakdown, no arcing



    Insulation resistance
    ≥ 1000MΩ / 500V (DC) Life: ≥ 1000 times
    Optical fiber bending radius
    ≥40mm
    Optical fiber connector
    500 times after plugging: no mechanical damage, the pin surface without obvious scratches

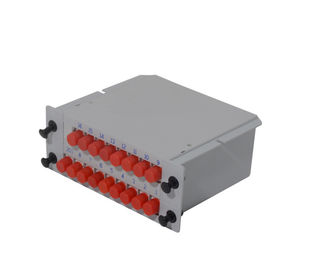

    More pictures



    ABS Material Fiber Optic Cassette Low Insertion Loss With White Color
