Product Details:
|
Material: | Metal | Connector Type: | SC / LC / ST / FC / MPO |
---|---|---|---|
Mode Type: | Single Mode | Repeatability: | >1000 Times |
Attenuation: | 1-30 DB | Return Loss: | PC ≥ 45dB UPC ≥55dB APC ≥65dB |
Delivery Time: | 2-10 Working Days After Receive Payment | Packing: | Standard Export Package |
Payment Term: | T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM | Certificate: | CE , ISO , RoHS |
Highlight: | variable optical attenuator,fixed optical attenuator |
Product Description

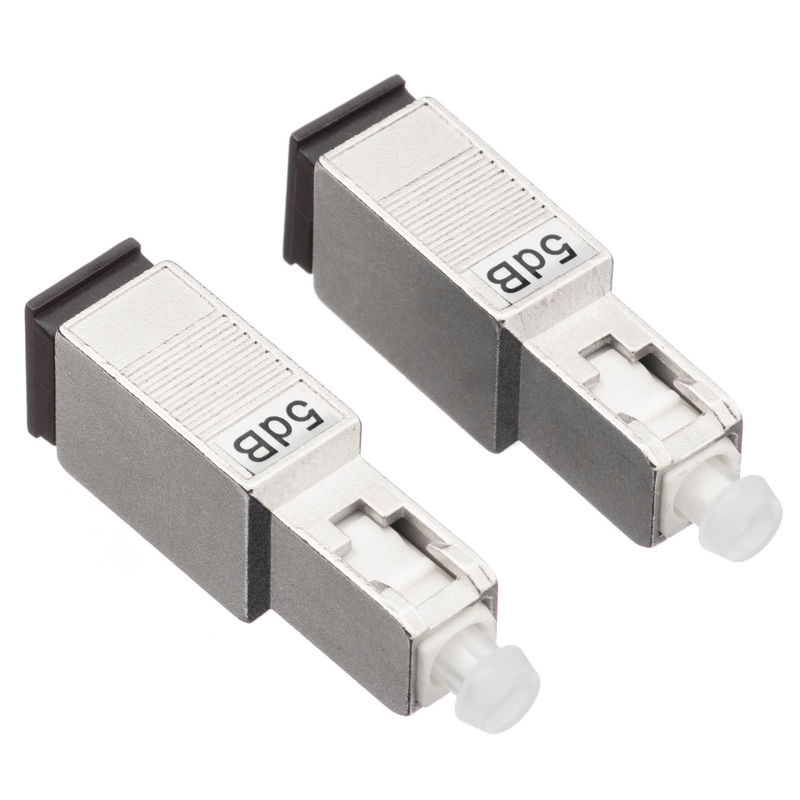

Singlemode simplex Fiber Optic Attenuator SC/PC Fixed , 20dB
Attenuation Options 5dB 10dB 15dB 20dB | Fiber Cables Direct | sc sm attenuator 15dB
APPLICATION
Telecommunication Networks
Data Networks
Video & CATV
SPECIFICATIONS
Operating Wavelength: SM: 1310nm, 1550nm
Attenuation Accuracy: +/-0.5 (1-10) +/-1.0 (11-30)
Polarization Dependent Loss: Less than 0.2dB
Maximum Optical Input Power: 200mW
Operating Temp Range: -40 ~ 80oC
Specification:
Item | Parameter |
Model | Fixed, Female&Male, In-line, Variable |
Operating Wavelength | SM:1310/1550nm MM: 850/1300nm |
Attenuation Range | 1~30dB |
Return Loss | PC:≥50dB UPC: ≥55dB APC: ≥60db |
Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
Maximum Optical Input Power | 1000mW |
Polarization Dependent Loss | ≤0.1dB |
Working Temperature | -40°C~+75°C |
Storage Temperature | -40°C~+ 85°C |
Humidity | 95%RH |
More picture
Your may like
Company introduction
New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.
Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc.
Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.
Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.
Products received high reputation and feedback from all customers!
Please contact us if any we can support and cooperate together!
Delivery and payment
1. Delivery time : 2-15 working days after received payment
2.package: export sdandard package
3. payment term: T/T ,PAYPAL,westen union ,L/C . 30% deposit , 70%balance paid before delivery
4.warranty : 3 years
5.Delivery method : by aire ( DHL, UPS,FEDEX ,TNT,etc ) by sea
Ordering Information:
Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
