Type A Fiber Optic Patch Cord Cable MPO With LC Duplex Uniboot Connector

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP Male

Material:

Mode Type:

Multi Mode

Cable Diameter:

3.0mm

Core Count:

8 Core

Method:

Type A

Cable Color:

Cable Type:

OM3 50/125

Length:

Can Be Customized According To Your Requirements

Insertion Loss:

≤ 0.5dB

Return Loss:

≥25dB

Wavelength:

850/1300

OEM/ODM:

Acceptable

Package:

1 Pcs /bag With Test Report

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

Product Description

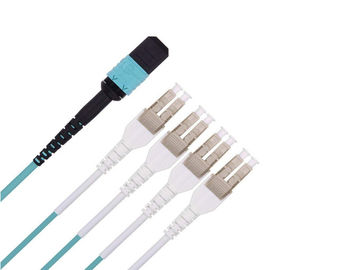

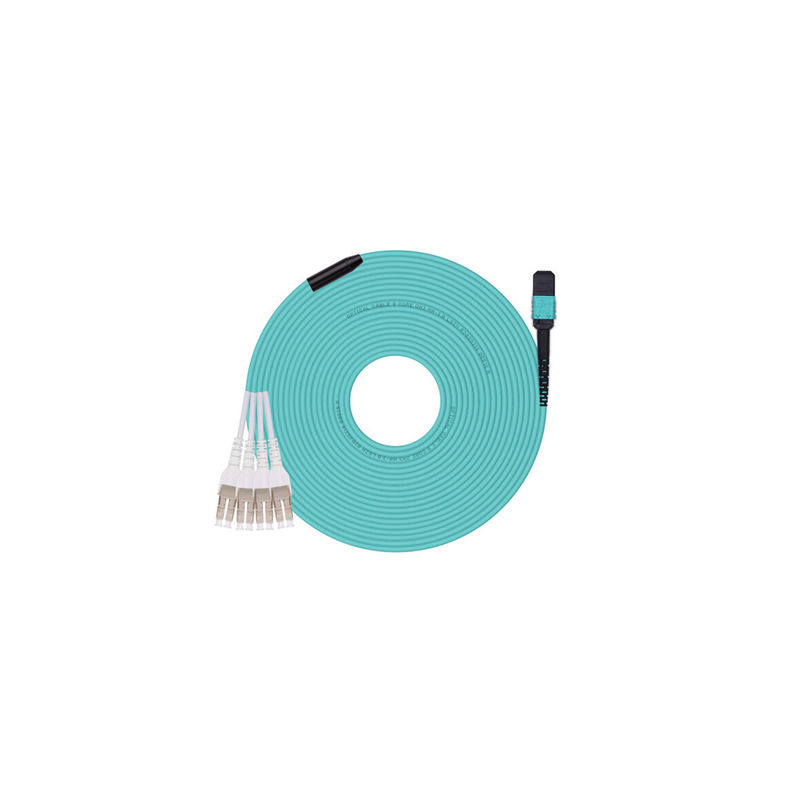

Type A Fiber Optic Patch Cord Cable MPO With LC Duplex Uniboot Connector

This patch cord is 8 core male connector , A method and multi mode . the cable diameter is 3.0mm , it also can be customized according to your requirements .

another side connector is LC unitboot . it is duplex connector .

MPO to 8x LC Uniboot Fanout Cable, (MPO Connector Female without PIN).
MMF(50/125um), OM3, LSZH 8-Core Fiber.
For QSFP+ Transceivers Link, Contact us for OEM or Custom.
The LC Duplex Uniboot Connector is a unique design that allows the use of round style, 2mm jacketed cable Instead of the traditional zipcord duplex cable for a more compact design.
The 10Gtek’s High Quality MTP MPO Cable Guarantee:
1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

Technical Parameter

products name	Type A Fiber Optic Patch Cord Cable MPO With LC Duplex Uniboot Connector
mode type	multi mode
cable count	12 core ( can be 4/8/12/16/24/32 core )
core type	OM3-300( OM1/OM2/OM3-150/OM3-300/OM4/OM5)
cable color	Aqua ( can be customized according to your request )
cable diameter	( can be customized diameter )
patch cord length	5 meter ( can be customized according to your request )
out jacket material	PVC ( can be PVC or LSZH )
insertion loss	≤ 0.5dB
return loss	≥25 dB
wave length	850/1300nm
core type	50/125um
connector type	male
connector color	Aqua
ferrule material	plastic
operater temperature	-40~ +85℃
cable print	standard print ( can customized )
OEM/ODM	acceptable
warranty	3 years after delivery
Delivery time	2-15 working days ( according to your quantity )

The three polarity methods Type A, Type B and Type C .

Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.

Type A Fiber Optic Patch Cord Cable MPO With LC Duplex Uniboot Connector 0

Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.

Type A Fiber Optic Patch Cord Cable MPO With LC Duplex Uniboot Connector 1

Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.

Type A Fiber Optic Patch Cord Cable MPO With LC Duplex Uniboot Connector 2

Using temperature

-40° ~ +80°

Application :

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

more connectory type

Type A Fiber Optic Patch Cord Cable MPO With LC Duplex Uniboot Connector 3
