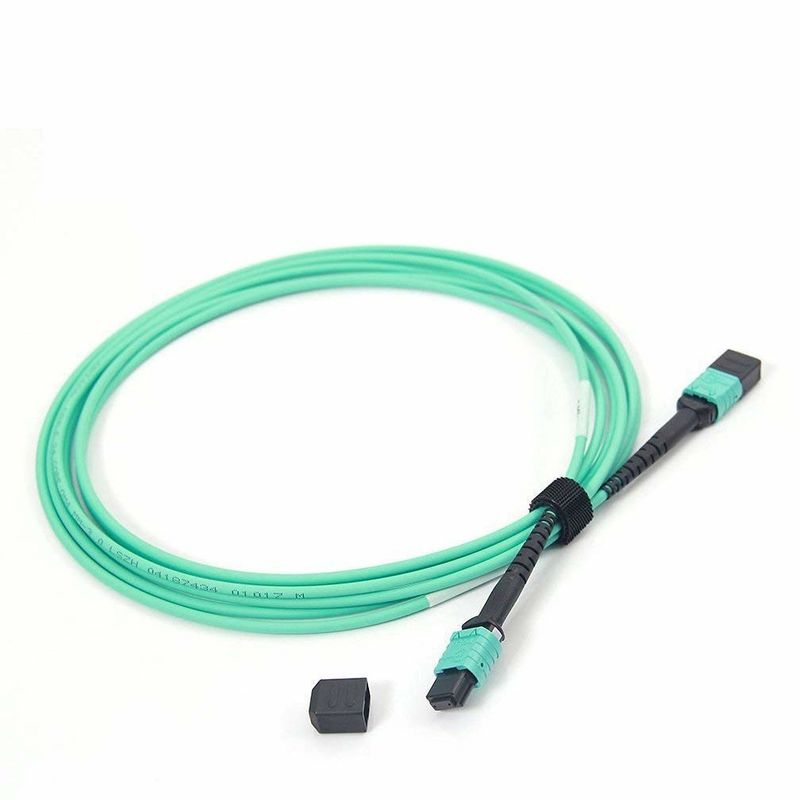

Female MPO - MPO Fiber Patch Cord OM4 50 / 125 24 Core Multimode 10ft Length

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C, T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP

Material:

Mode Type:

Multi Mode

Core Type:

12 Core

Cable Color:

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

Product Description

female MPO - MPO fiber Patch Cord OM4 50/125 3.0 cable Multimode Fiber 24 core Fiber 10ft

Delivery :

We can delivery it by air and by sea . it is according to your quantity and requirements .

Payment :

Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .

Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR

Application :

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

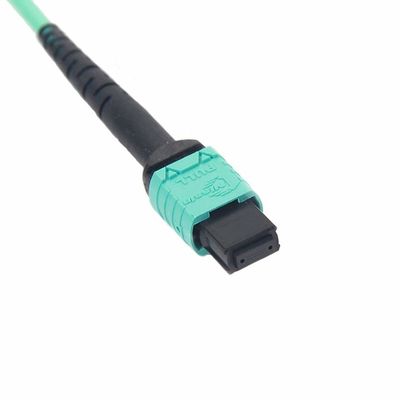

MPO to MPO Patch Cable, (MPO connector Female without PIN), low Insertion Loss.
MMF(50/125um), OM4, LSZH 24-Core Fiber.
Cross Connection : AB/BA For QSFP+ Transceivers Link, contact us for OEM or Custom.
The 10Gtek’s High Quality MTP/MPO Cable Guarantee: 1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules. 2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards. 3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

Technical Parameter

Item	Technical Parameters
Connector	MPO (F or M)	MPO (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
Return Loss	SM:≥60dB; MM:≥35dB
The MPO end type	Male: with guide pin; Female: without guide pin
Fiber count	8,12&24 MT fiber
Connector type of the other end	MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type	250um ribbon fiber,ribbon cable,Bundle fiber optic cable

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.

Female MPO - MPO Fiber Patch Cord OM4 50 / 125 24 Core Multimode 10ft Length 0

Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.

Female MPO - MPO Fiber Patch Cord OM4 50 / 125 24 Core Multimode 10ft Length 1

Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.

Female MPO - MPO Fiber Patch Cord OM4 50 / 125 24 Core Multimode 10ft Length 2

Using temperature

-40° ~ +80°

More products :

We have optical patch cord , pigtail , adaptor , attenuator , distribution box , Quick Assmembly connector .etc . If you need more products or catalogue , you can feel free to contact us

Female MPO - MPO Fiber Patch Cord OM4 50 / 125 24 Core Multimode 10ft Length 4
