Product Details:
|
| Connector Type: | MPO / MTP | Material: | LSZH |
|---|---|---|---|
| Mode Type: | Single Mode | Core Type: | 12 Core |
| Cable Color: | Yellow | Length: | Can Be Customized According To Your Requirements |
| Certificate: | CE , ISO , RoHS | Delivery Time: | 2-7 Working Days After Received Deposit |
| Production Ability: | 500 Pcs / Day | Payment Term: | T/T , 30% Deposit In Advance |
| High Light: | mpo to mpo cable,mpo fanout cable |
||
Product Description

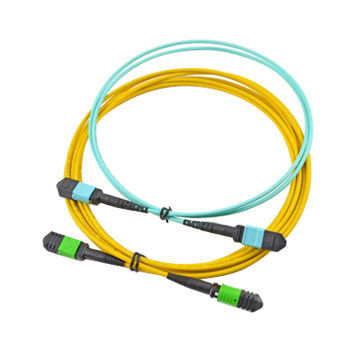

MPO female connector 12 core single mode Trunk fiber optic Cable Assemblies for SFP
Optical patch Cord and pigtail is the basic parts for optical transmission. They are consist of fiber optic cable and terminated connector. Wolon hold strong capacity for cable and termination so as to support any large demand.
Technical Parameter
| Item | Technical Parameters | |
| Connector | MPO (F or M) | MPO (F or M) |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
|
| Return Loss | SM:≥60dB; MM:≥35dB | |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 MT fiber | |
| Connector type of the other end | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |
Delivery :
We can delivery it by air and by sea . it is according to your quantity and requirements .
Payment :
Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .
Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR
Application :
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.
Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.
Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.
Using temperature
-40° ~ +80°
More products :
We have optical patch cord , pigtail , adaptor , attenuator , distribution box , Quick Assmembly connector .etc . If you need more products or catalogue , you can feel free to contact us
