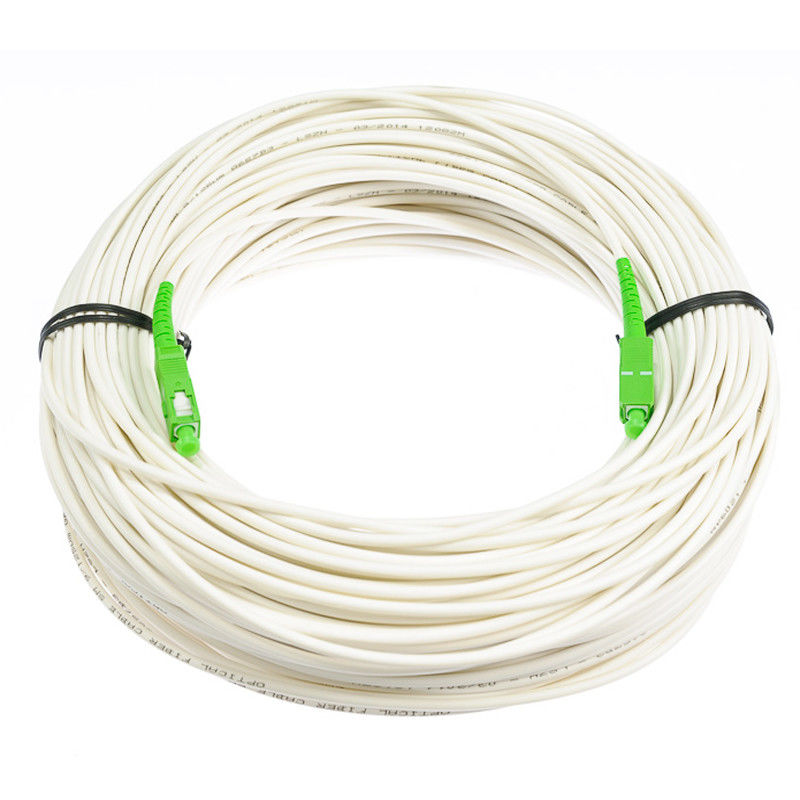

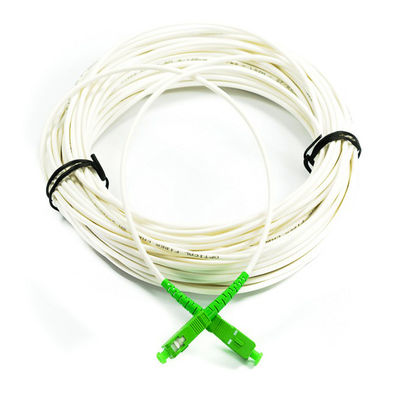

G657B3 Anti-Bending Fiber Optic Patch Cord Single Mode with LSZH Material

Brand Name:	New Light
Model Number:	SC APC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

SC APC - SC APC

Cable Type:

G657B3

Cable Diameter:

2.0 Mm

Jacket Material:

Mode Type:

Single Mode

Delibery Time:

2-7 Working Days (after Receive Payment )

Warranty:

3 Year After Delivery

Cable Color:

White

Wave Length:

1310/1550

Sale Point:

Anti - Bending

Connector Type:

SC APC - SC APC

Cable Type:

G657B3

Cable Diameter:

2.0 Mm

Jacket Material:

Mode Type:

Single Mode

Delibery Time:

2-7 Working Days (after Receive Payment )

Warranty:

3 Year After Delivery

Cable Color:

White

Wave Length:

1310/1550

Sale Point:

Anti - Bending

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

sc sc fiber patch cord

Product Description

G657B3 Anti-Bending Fiber Optic Cable

Product Overview

The G657B3 is an advanced anti-bending single-mode fiber optic patch cord with white LSZH (Low Smoke Zero Halogen) material. Designed for long-distance signal transmission, this cable delivers exceptional performance with low insertion loss and high return loss.

G657B3 outperforms other fiber types with its superior bending capability. While G652D has a 30mm bending diameter, G657A1 at 10mm, and G657A2/B2 at 7.5mm, the G657B3 achieves an impressive 5mm bending diameter. This enhanced flexibility provides superior protection against breakage during installation and enables easier cable distribution in 1U boxes and other equipment.

Technical Specifications

Performance Data

Mode	Singlemode (OS1, OS2 9/125)	Multimode (OM1 50/125, OM2 62.5/125, OM3 50/125, OM4 50/125)
Polishing	PC \| UPC \| APC \| PC	PC
Insertion Loss	≤ 0.2dB (Typical ≤0.1dB)	≤ 0.2dB
Return Loss	≥ -45dB \| ≥ -50dB \| ≥ -60 dB	N/A
Diameter	Φ0.9, Φ2.0, Φ3.0mm
Vibration	≤ 0.2dB (5~50Hz, 1.5mm Amplitude)
Thermal Cycle	≤ 0.2dB (-40℃ ~ +80℃, 21 Cycles)

Polishing Specifications

Polishing	PC	APC
Radius of Curvature	5 ~ 30 mm	5 ~ 12 mm
Apex Offset	≤ 70 um
Fiber Spherical Height	-125 to +100 um
Angular Error	N/A	8° ± 0.5°

Key Features

Complies with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005 standards
Low insertion loss and high return loss
High-density connection capability
Easy operation and installation
High reliability and stability
Excellent repeatability and exchangeability

Applications

Testing equipment
FTTX+LAN networks
Optical fiber CATV systems
Optical communication systems
Telecommunication infrastructure

Cable Bend Demonstration

How to Order

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core
Cable type: G652D / G657A1 / G657A2 / G655 / G657B3 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: Customized to your requirements

Available Connector Types

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What is the pricing?

Pricing depends on quantity. We offer competitive pricing for bulk orders.

Can you provide FOB pricing?

We typically ship via air courier (DHL, TNT, UPS, FedEx). EXW or CFR pricing is preferred for most orders.

How is your quality control?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What is your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces, with regular products in stock.

What is your warranty policy?

We offer 2 years warranty for non-artificial damage. Artificial damage repairs are free, but customer pays freight.

What packaging do you use?

We use international export packaging and can print your logo upon request.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight).

Packaging Example
