Product Details:
|
| Products Name: | Uni Boot Multi Mode Fiber Optic Cable Jumper Cable 50 / 125 3.0 Fiber Cable | Connector Type: | LC |
|---|---|---|---|
| Mode Type: | Multi Mode | Cable Type: | OM3 |
| Cable Material: | PVC/LSZH | Cable Diameter: | 0.9/2.0/3.0mm |
| Delivery Time: | 2-7 Working Days After Payment Done | Warranty: | 3 Years After Delivery |
| Payment Term: | T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery | Length: | Can Be Customized |
| High Light: | fiber optic pigtail,ftth fiber optic cable |
||

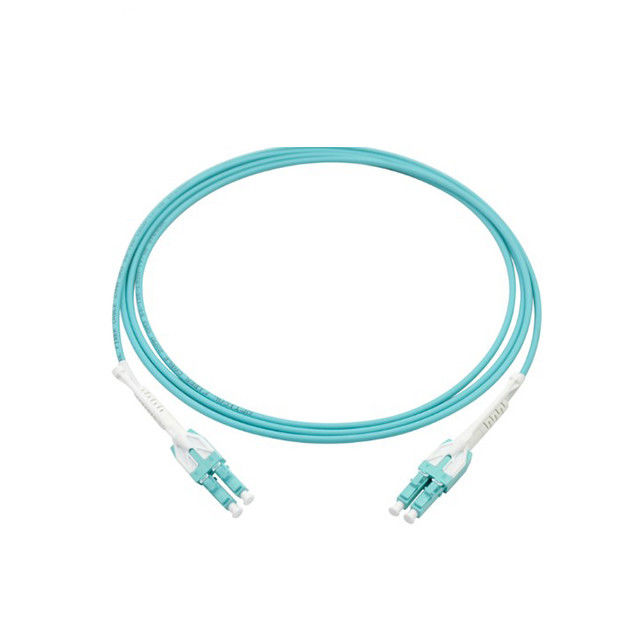

Uni boot multi mode fiber optic cable jumper cable 50 / 125 3.0 fiber cable
Features
Available in simplex for one-way information transfer, or duplex for simultaneous bi-directional data transfer
Each cable is packaged in a sealed plastic bag (with cleaning instructions) to ensure a pristine cord
Multimode is most commonly used for lower speed, short-distance applications
Application
Fiber Optic Telecommunications
FTTH (Fiber To The Home)
CATV & CCTV
Data Processing Networks
Telecom Equipment
Local Area Networks
Patchcord Features
Low Insertion and Return Loss
Various Connector Type
Standard Connector Housing
Using the JC Com Standard Zirconia Ferrule
Technical Parameter
| products name | Uni Boot Fiber Pigtails Patch Cords For Telecom Equipment / Local Area Networks |
| mode type | multi mode |
| cable count | duplex ( can be simplex /4/8/12/16/24/32 core ) |
| core type | OM3-300( OM1/OM2/OM3-150/OM3-300/OM4/OM5) |
| cable color | Aqua ( can be customized according to your request ) |
| cable diameter | ( can be customized diameter ) |
| patch cord length | 5 meter ( can be customized according to your request ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.3dB |
| return loss | ≥45 dB |
| wave length | 850/1300nm |
| core type | 50/125um |
| connector type | LC UNIBOOT |
| connector color | Aqua |
| ferrule material | Ceramic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
| Fiber type | Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A1,G657A2,G657B2,G657B3 |
Multimode: | |
| Fiber brand | YOFC, Corning, OFS... |
| Connector type | SC, LC, FC, ST, MU, MTRJ, MPO/MTP,E2000, SMA, DIN |
| Cord type | Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores... |
| Cable diameter | 0.9mm, 2.0mm, 3.0mm.... |
| Cable jacket | PVC, LSZH, OFNR, OFNP |
| Length(M) | 0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized ) |
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
