MPO MTP Patch Cord

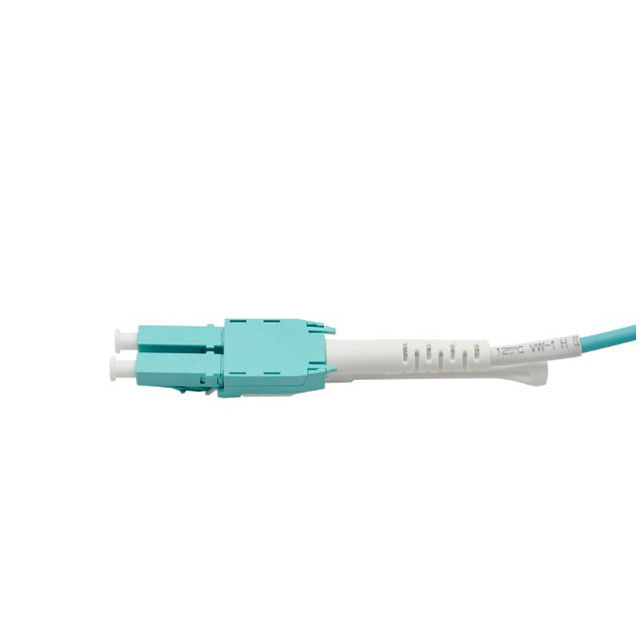

Pulling uniboot Aqua cable LC Connector Fiber Optic Jumper Cables 3 Meter 50 / 125 2.0 Diameter

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Pulling uniboot Aqua cable LC Connector Fiber Optic Jumper Cables 3 Meter 50 / 125 2.0 Diameter

Brand Name:	NEW LIGHT
Model Number:	LC-LC
MOQ:	1 pcs
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T, Western Union, MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO,RoHS , CE

Products Name:

Pulling Uniboot Aqua Cable LC Connector Fiber Optic Jumper Cables 3 Meter 50 / 125 2.0 Diameter

Connector Type:

LC PC

Mode Type:

Multi Mode

Cable Type:

Cable Material:

PVC/LSZH

Cable Diameter:

2.0mm

Delivery Time:

2-7 Working Days After Payment Done

Warranty:

3 Years After Delivery

Length:

Can Be Customized

Insertion Loss:

≤ 0.3dB

Return Loss:

≥40dB

OEM /ODM:

Acceptable

Supply Ability:

50000 pcs / month

Highlight:

fiber optic pigtail

ftth fiber optic cable

Product Description

Pulling uniboot Aqua cable LC Connector Fiber Optic Jumper Cables 3 Meter 50 / 125 2.0 Diameter

The LC is a small form factor (SFF) connector and is ideal for high density applications. A Behind the Wall (BTW) version is available with short connector and boot for ultracompact requirements.

The LC connector has a zirconia ceramic ferrule measuring 1.25mm O.D. with either a PC or APC endface, and provides optimum insertion and return loss.* The LC connector is used on small diameter mini-cordage (1.6mm/2.0mm) as well as 3.0mm cable.

LC Connectors are available in pre-assembled or kit (unassembled) formats.

The pulling type LC design utilizes a flexible "pull-tab" allowing for the connector to be disengaged easily from densely loaded panels without need for special tools.

Applications

Gigabit Ethernet
Video
Active Device Termination
Premise Installations
Telecommunication Networks
Multimedia
Industrial
Military

Features

Compact, pull-proof design
RJ-45 style interface
Low insertion loss and low back reflection*
Polarized and color coded (TIA 568-A & ISO 11801)
UL-Rated plastic housing and boot
High precision alignment
Behind the Wall (BTW) style short connector & boot

Parameter

products name	Pulling uniboot Aqua cable LC Connector Fiber Optic Jumper Cables 3 Meter 50 / 125 2.0 Diameter
mode type	multi mode
cable count	duplex ( can be simplex or others)
core type	OM3 ( multi mode core have OM1/OM2/OM3-150/OM3-300/OM4/OM5)
cable color	Qaua ( can be customized according to your request )
cable diameter	2.0 ( can be 3.0 and customized diameter )
patch cord length	3 meter ( can be customized according to your request )
out jacket material	PVC ( can be PVC or LSZH )
insertion loss	≤ 0.3dB ( can be ≤ 0.1dB )
return loss	≥0 dB
wave length	850/1300
core type	50/125um
ferrule polished	PC
connector color	Aqua
ferrule material	ceramic
operater temperature	-40~ +85℃
cable print	standard print ( can customized )
OEM/ODM	acceptable
warranty	3 years after delivery
Delivery time	2-15 working days ( according to your quantity )

More connector type you can choose :

Pulling uniboot Aqua cable LC Connector Fiber Optic Jumper Cables 3 Meter 50 / 125 2.0 Diameter 0

How to order

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
