Product Details:
|
| Products Name: | FTTH Outdoor Optical Fiber Cable 2 Core Black Color UV And Flame Resistant LSZH Material | Mode Type: | Single Mode |
|---|---|---|---|
| Cable Type: | G652D/G657A1/G657A2 | Cable Material: | PVC/LSZH |
| Cable Diameter: | 2.0*3.4+-0.2 | Delivery Time: | 2-7 Working Days After Payment Done |
| Warranty: | 1 Year After Delivery | Payment Term: | T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery |
| Length: | Can Be Customized | Core: | 2 Core |
| High Light: | duplex fiber optic patch cable,simplex fiber optic cable |
||
FTTTH drop cable indoor 8 core single mode fiber optic cable PVC

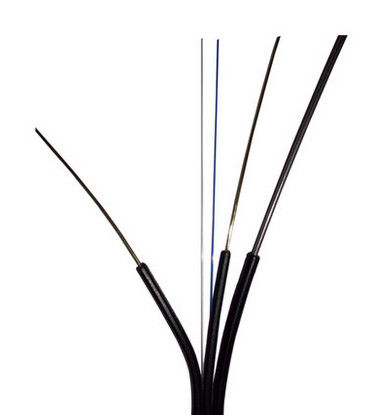

The optical fiber unit is positoned in the centre. Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath,the ftth cable is widely used in fiber to the home project ..
Characteristics:
1.Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2.Two paralled FRP strength members ensure good performance of crush resistance to protect the fiber;
3.Simple structure, light weight and high practicability;
4.Novel flute desigh ,easily strip and splice, simplify the installation and maintenance;
5.Low smoke, zero halogen and flame retardant sheath
Cable construction details
| Number of fiber | 8core | |||||||
| Loose tube | material | PBT | ||||||
| diameter | 2.2(outer/inner) | |||||||
| Tube-filling | Tube filling compoun | |||||||
| Steel wire | size | 0.8mm | ||||||
| Number | 2 | |||||||
| Outer sheath | material | PE,HDPE,LDPE | ||||||
| diameter | 1.8±0.2mm | |||||||
Cable Mechanical characteristic
| core | Cable diameter | weight | |||||
| 1~8 | 8.0mm+-0.3mm | 65kg/km+-10kg | |||||
| Temperature range | -40+70(℃) | ----- | |||||
| Min Bending Radius(mm) | Long term | 10D | |||||
| Min Bending Radius(mm) |
Short term | 20D | |||||
| Min allowable Tensile Strength(N) |
Long term | 1200 | |||||
| Min allowable Tensile Strength(N) |
Short term | 1500 | |||||
| Operation temperature | -40+70(℃) | ||||||
| Installation temperature | -20+60(℃) | ||||||
| Storage temprature |
-40+70(℃) | ||||||
| Fiber type | Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A1,G657A2,G657B2,G657B3 |
|
Multimode: (8)50/125-OM5 |
|
| Fiber brand | YOFC, Corning, OFS... |
| Connector type | SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN |
| Cord type | Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores... |
| Cable diameter | 0.9mm, 2.0mm, 3.0mm.... |
| Cable jacket | PVC, LSZH, OFNR, OFNP |
| Length(M) |
0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized )
|
