Product Details:
|
| Products Name: | Ftth Drop Cable Special Low Bend Sensitivity Fiber LSZH Material 2 Core Cable | Mode Type: | Single Mode |
|---|---|---|---|
| Cable Type: | G652D/G657A1/G657A2 | Cable Material: | PVC/LSZH |
| Cable Diameter: | 2.0*3.4+-0.2 | Delivery Time: | 2-7 Working Days After Payment Done |
| Warranty: | 1 Year After Delivery | Payment Term: | T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery |
| Length: | Can Be Customized | Core: | 2 Core |
| High Light: | duplex fiber optic patch cable,simplex fiber optic cable |
||

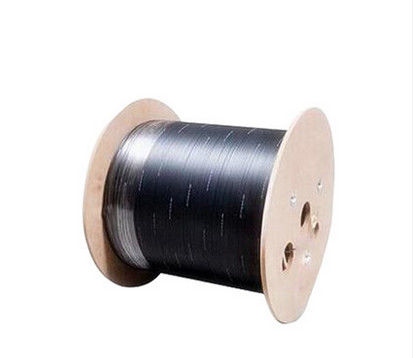

ftth drop cable special low bend sensitivity fiber LSZH material 2 core cable
Technical Parameters
| Fiber count |
Cable Diameter mm |
Cable weight kg/km |
Tensile Strength Long/short term N |
Crush Resistance Long/short term N/100mm |
Bending Radius Static/Dynamic mm |
| 1 | (2.0±0.2)*(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)*(3.4±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| 1 | (2.0±0.2)*(3.8±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)*(4.0±0.2) | 10 | 30/60 | 300/1000 |
15/30 |

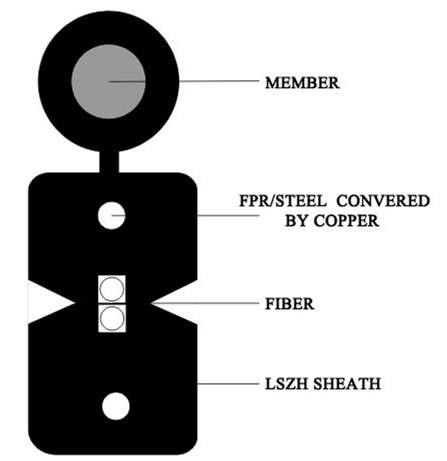

The optical fiber unit is positoned in the centre. Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath,the ftth cable is widely used in fiber to the home project ..
Characteristics:
1.Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2.Two paralled FRP strength members ensure good performance of crush resistance to protect the fiber;
3.Simple structure, light weight and high practicability;
4.Novel flute desigh ,easily strip and splice, simplify the installation and maintenance;
5.Low smoke, zero halogen and flame retardant sheath
Cable construction details
| Fiber type | Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A1,G657A2,G657B2,G657B3 |
|
Multimode: (8)50/125-OM5 |
|
| Fiber brand | YOFC, Corning, OFS... |
| Connector type | SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN |
| Cord type | Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores... |
| Cable diameter | 0.9mm, 2.0mm, 3.0mm.... |
| Cable jacket | PVC, LSZH, OFNR, OFNP |
| Length(M) |
0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized )
|
