Product Details:
|
| Products Name: | GYFTY FRP Outdoor Underground 12 24 48 96 Core Single Mode Fiber Optic Cable | Mode Type: | Single Mode |
|---|---|---|---|
| Cable Type: | G652D/G657A1/G657A2 | Cable Material: | PVC/LSZH |
| Delivery Time: | 2-7 Working Days After Payment Done | Warranty: | 1 Year After Delivery |
| Payment Term: | T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery | Length: | Can Be Customized |
| Core: | 2/4/6/8/12/24/48 | ||
| High Light: | duplex fiber optic patch cable,fiber optic drop cable |
||

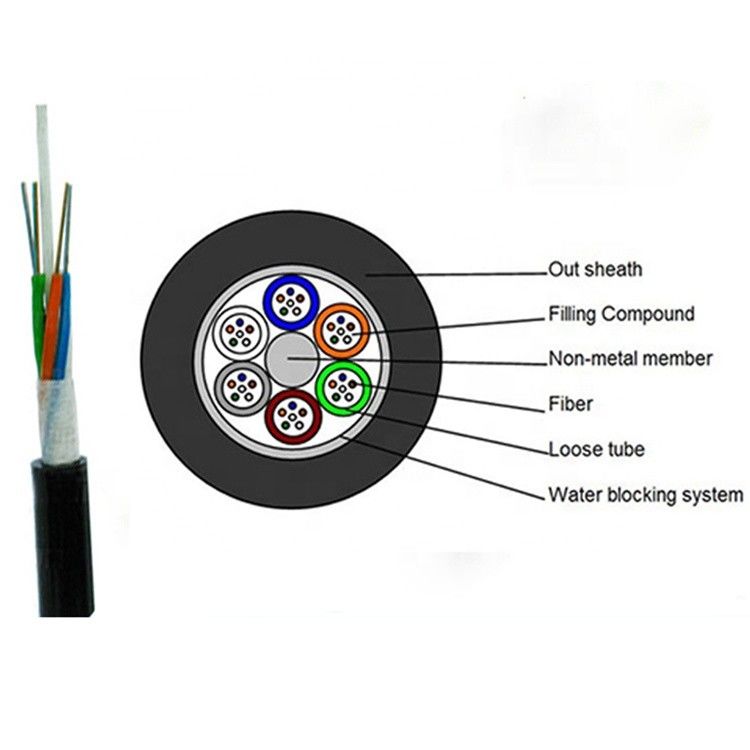

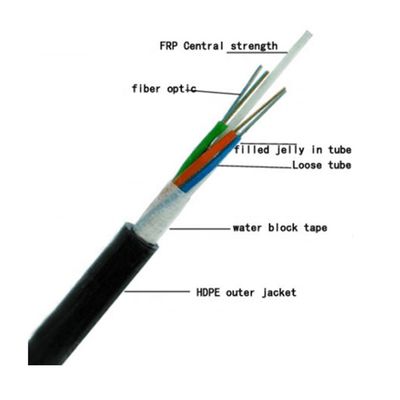

GYFTY FRP outdoor underground 12 24 48 96 Core Single Mode Fiber Optic Cable
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2.The dimensions and raw materials can be designed according to the demand of the customers.
3.Standard Reel Length: 3000m/reel: other lengths available on request.
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| (+20°C) | @1300nm | ≤1.0 dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.36dB/km | ≤0.4dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth | @850nm | ≥500MHz/km | ≥200MHz/km | ||
| (Class A) | @1300nm | ≥1000MHz/km | ≥600MHz/km | ||
| Numerical Aperture | 0.2±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off | ≤1260nm | ≤1480nm | |||
Characteristics:
1.Excellent mechanical and temperature
performance guaranteed by the accurate excess Fiber length
2.Critical protection to fibers
3.The following measures are taken to ensure the
water blocking performance of the cable.
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube.
- 100% cable core filling
The Single mode optical fiber cable herein after referred to as the ''Cable'' comply with the requirements of this specification and generally meet ITU-T Recommendation G.652.
G652 covers single-mode NDSF (non-dispersion shifted fiber) which is optimized for 1310nm wavelength.
Application: Duct/Aerial
Temperature Range:
Storing temperature:-40℃ to +70℃
Operating temperature:-40℃ to +70℃
Technical Parameters:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Attenuation (+20°C) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
|
Bandwidth (Class A) |
@850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
||
operate temperature :
-20℃~+70℃
