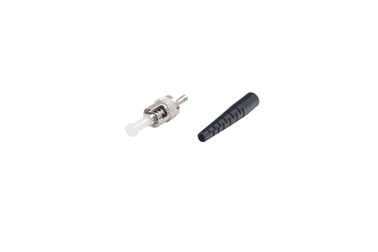

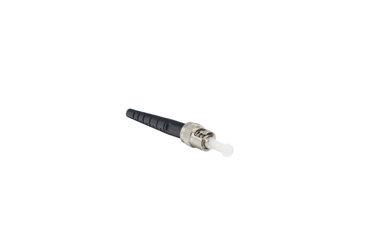

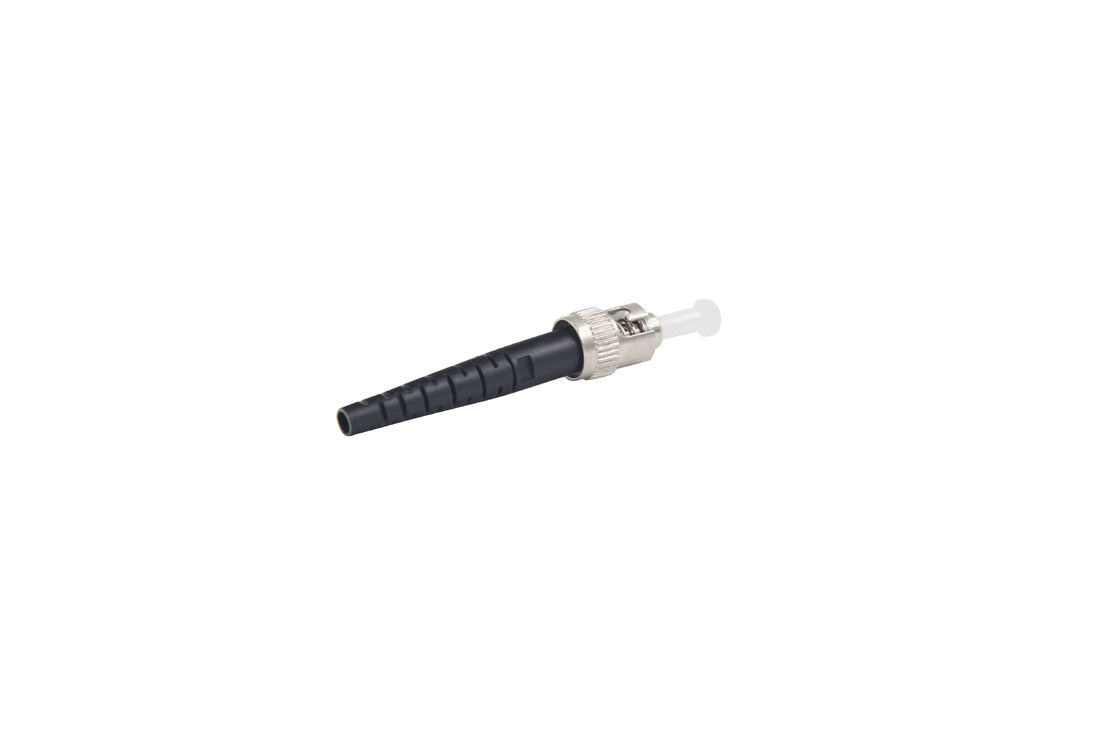

ST Single Mode 2.0mm Fiber Optic Connector with Metal Material and Black Net Boot

Brand Name:	New Light
Model Number:	ST
MOQ:	100
Price:	0.1~100
Packaging Details:	standard export package
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Material:

Metal

Mode Type:

Single Mode

Connector Type:

UPC

Insertion Loss:

<0.3dB

Delivery Time:

2-10 Working Days After Receive Payment

Packing:

Standard Export Package

Payment Term:

T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM

Certificate:

CE , ISO , RoHS

Return Loss:

PC≥40 UPC≥50 APC≥60 DB

Supply Ability:

10,000 pcs per month

Highlight:

fiber optic cable connectors

fiber optic fast connector

Product Description

ST Single Mode 2.0 Fiber Optic Connectors

Metal material with black net boot for reliable fiber optic connections

Product Overview

ST single mode 2.0 optical fiber connector with black net boot designed for high-performance networking applications.

Key Features

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key
Nickel plated brass body
Telcordia style boots
Free-floating ceramic ferrule

Applications

Gigabit Ethernet
Active device termination
Telecommunication networks
Video and multimedia systems
Industrial applications
Military communications
Premise installations

Technical Specifications

Parameter	Singlemode	Multimode
Insertion loss	<0.1dB	<0.15dB
Return loss	≥55dB (≥65dB APC)	-
Durability	<0.1dB typical change, 500 mating cycles
Operating Temperature	-40°C to +75°C

Configuration Options

Ordering Choices: FC SM SX PC, MM DX APC
Key Ring: Tunable; Fixed
Ferrule Size: 125.0μm, 125.3μm, 125.5μm, 126.0μm, 127.0μm, 128.0μm
Boot Type: Slotted boot, Smooth boot
Boot Size: 0.9mm; 2.0mm; 3.0mm
Boot Color: Beige; Black; Blue; Grey; Red; White; Yellow
Ferrule End (APC): 8 degree angled; Not angled

Detailed Specifications

Parameter	Unit	FC, SC, LC, ST Connector
SM UPC/APC Insertion Loss	dB	≤0.3
MM UPC Insertion Loss	dB	≤0.3
SM UPC Return Loss	dB	≥50
SM APC Return Loss	dB	≥60
MM UPC Return Loss	dB	≥35
Exchangeability	dB	≤0.2
Mechanical Endurance	dB	≤0.2
Vibration	dB	≤0.2
Operating Temperature	°C	-40°C to +75°C
Storage Temperature	°C	-45°C to +85°C
