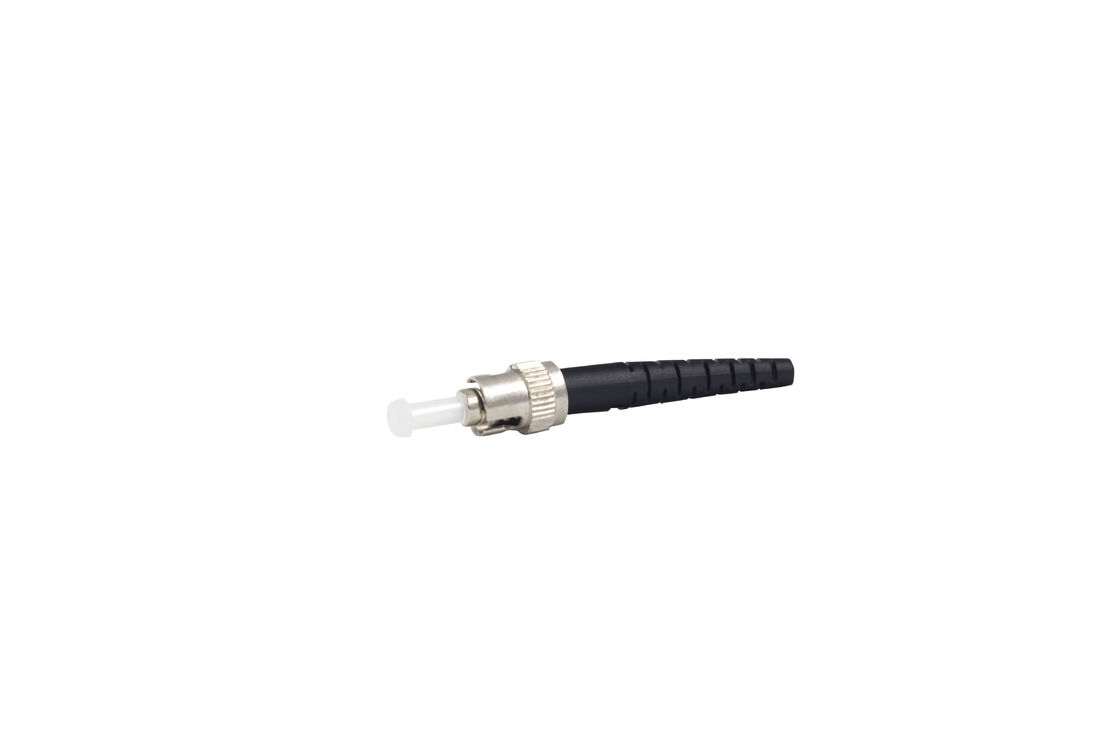

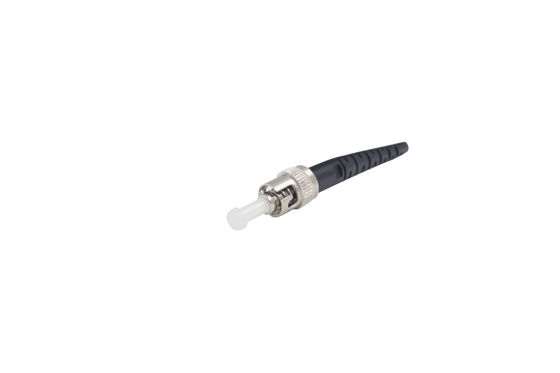

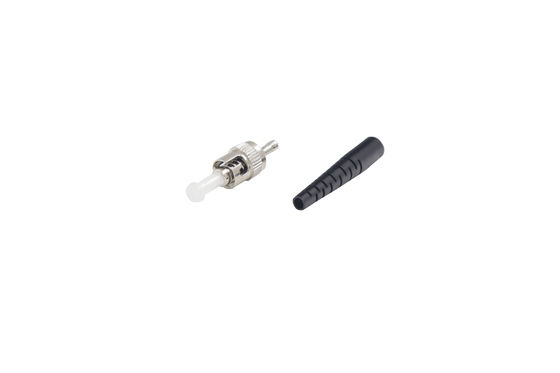

3.0mm Low Insertion Loss Nickel Plated Brass Body Fiber Optic ST Connector for Indoor Distribution

Brand Name:	New Light
Model Number:	ST
MOQ:	100
Price:	0.1~100
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Material:

Metal

Mode Type:

Single Mode / Multi Mode

Connector Type:

3.0mm

Insertion Loss:

<0.3dB

Certificate:

CE , ISO , RoHS

Return Loss:

PC≥40 UPC≥50 APC≥60 DB

Supply Ability:

10,000 pcs per month

Highlight:

fiber optic cable connectors

fiber optic fast connector

Product Description

OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord

This OEM/ODM 3.0mm ST fiber optic connector is designed for indoor distribution patch cords. The ST connector is a widely used fiber optic connector type, commonly employed in 10Base-F applications.

Featuring a bayonet mount and a 2.5mm long cylindrical ceramic or polymer ferrule that securely holds the fiber, the ST connector operates on a "Stab & Twist" principle - first insert, then tighten for secure connection.

The connector features a round outer casing with a turnbuckle fixing mechanism for reliable installation.

Key Features

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key
Nickel plated brass body
Telcordia style boots
Free-floating ceramic ferrule

Technical Specifications

Product Name	OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord
Mode Type	Single mode / Multi mode
Cable Diameter	3.0 mm
Insertion Loss	≤ 0.3dB (low insertion loss can be ≤ 0.35dB)
Return Loss	≥60 dB
Wavelength	1310/1550
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
OEM/ODM	Acceptable
Warranty	3 years after delivery
Delivery Time	2-15 working days (according to your quantity)

Additional Connector Options

How to Order

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (can customize other diameters)
Coating material: PVC / LSZH
Fiber count: Simple / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: According to your requirement
MPO/MTP connector specifications: Please specify method (A type / B type / C type), male or female, and fiber count (4/8/12/16/24/32 fiber)
