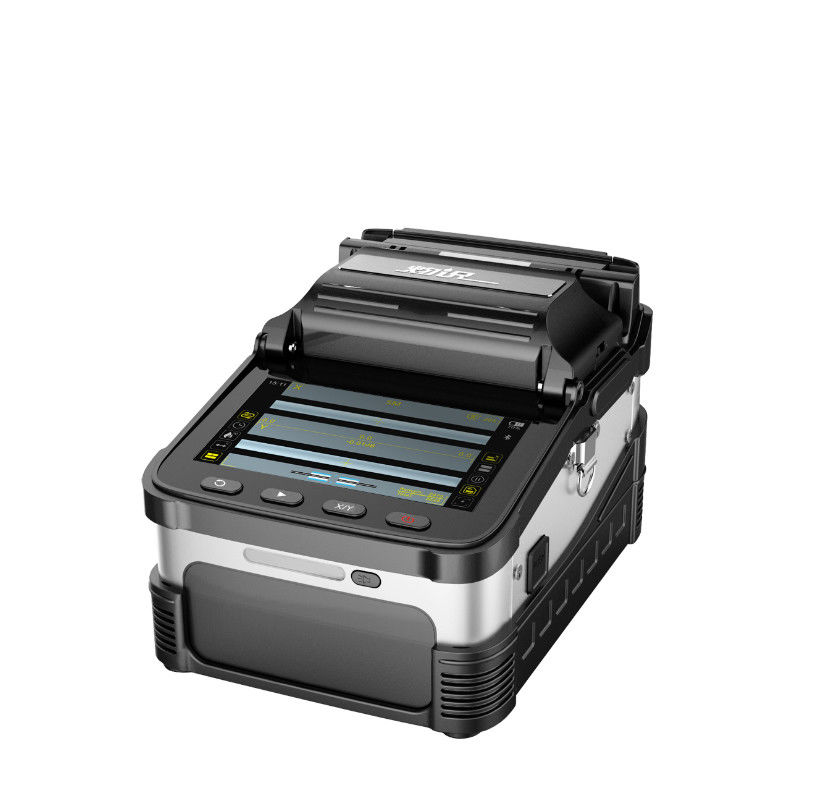

Full Set Fiber Optic Tools Automatic Fusion Splice Machine Standard 2N Tension Test

Full Set Fiber Optic Tools Automatic Fusion Splice Machine Standard 2N Tension Test

    • Full Set Fiber Optic Tools Automatic Fusion Splice Machine Standard 2N Tension Test
    • Full Set Fiber Optic Tools Automatic Fusion Splice Machine Standard 2N Tension Test
    • Full Set Fiber Optic Tools Automatic Fusion Splice Machine Standard 2N Tension Test

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: New Light
    Certification: CE,ISO
    Model Number: AI-7

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: can be negotiated
    Packaging Details: carton box
    Delivery Time: 3-15 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Size: 122*130*148mm Time For Fusion: 8s
    Time For Heat: 18s Focus Mode: Six Motor Auto- Focusing
    Return Loss: >60dB Tension Test: Standard 2N
    Battery Capacity: 7800mAh Power Supply: Input AC100-240V 50/60HZ ,output DC13.5V/4A
    Splice Sleeve: 40mm / 60mm



    Optical fiber Equipment Automatic fusion splice machine with tool set











    Optical fiber alignment Manual alignment
    fusion time 8s
    heat time 18s
    heat mode aotomatic
    focus mode six motor auto- focusing
    return loss >60dB
    tension test standard 2N

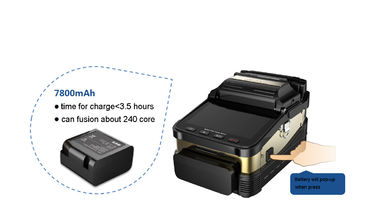

    battery capacity 7800mAh
    power supply input AC100-240V 50/60HZ ,output DC13.5V/4A
    splice sleeve 40mm / 60mm
    use for core type SM ,MM,DS ,NZDS
    fusion loss 0.025dB(SM) ,0.01dB(MM) ,0.04dB (DS/NZDS)







    Full Set Fiber Optic Tools Automatic Fusion Splice Machine Standard 2N Tension Test













    Full Set Fiber Optic Tools Automatic Fusion Splice Machine Standard 2N Tension Test







    Additional parts

    Full Set Fiber Optic Tools Automatic Fusion Splice Machine Standard 2N Tension Test

    Tag:

    fiber optic tool kit,

    fiber optic splicing tool kit
