Product Details:
|
| Brand Name: | New Light | Fiber Type: | 2.0 |
|---|---|---|---|
| Connector Type: | SC APC | Operating Wave: | 1260-1650 |
| Mode Type: | Single Mode | OEM / ODM: | Acceptable |
| Fiber Length: | As Your Requirement | Warranty: | 3 Years |
| Delivery Time: | 2-10 Working Days After Receive Payment | Payment: | T/T , L/C , Paypal , Westen Union , Money Gram |
| Products Name: | CATVSCOPE PLC Fiber Optic Splitter With 1x8 SC/APC Green Connector, Steel Tube Input 250μm Fiber | ||
| High Light: | fiber optic plc splitter,single mode fiber splitter |
||

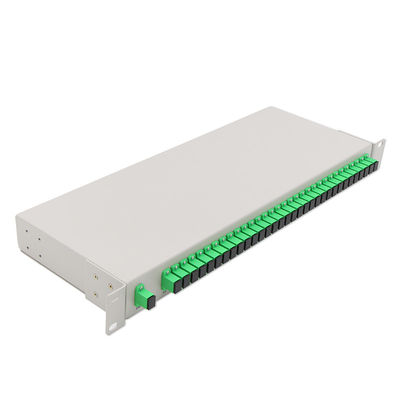

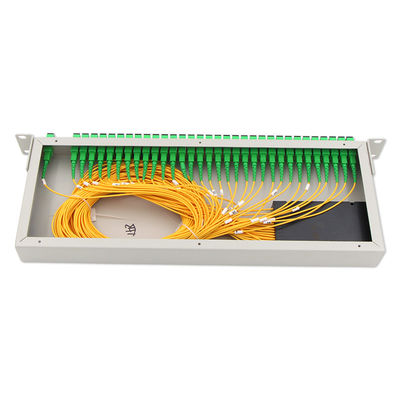

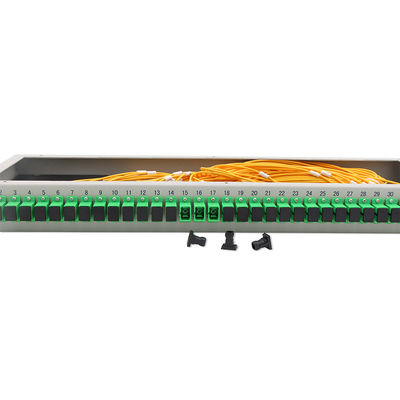

Rack Mount mini tube 1 128 plc fiber optic splitter with sc / apc connector
1. Description
2. Application
3. Feature
4. Compliance
5. Specifications
Table 1 – 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | SMF-28e or customer specified | |||||
| Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~85 | |||||
| Storage Temperature (°C) | -40~85 | |||||
| Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
Notes:
Rack Mount mini tube 1 128 plc fiber optic splitter with sc / apc connector
Order information
PLC Splitter Type-----Input/Output Count-----Input Connector Type-----Input Tube Type------Input Tube Length------Output Connector Type-----Output Tube Type-----Output Tube Length
Pa
preferred carrier, please notify us in advance.
Delivery and payment
1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
2. 30% deposit in advance , 70% balance paid before delivery .
