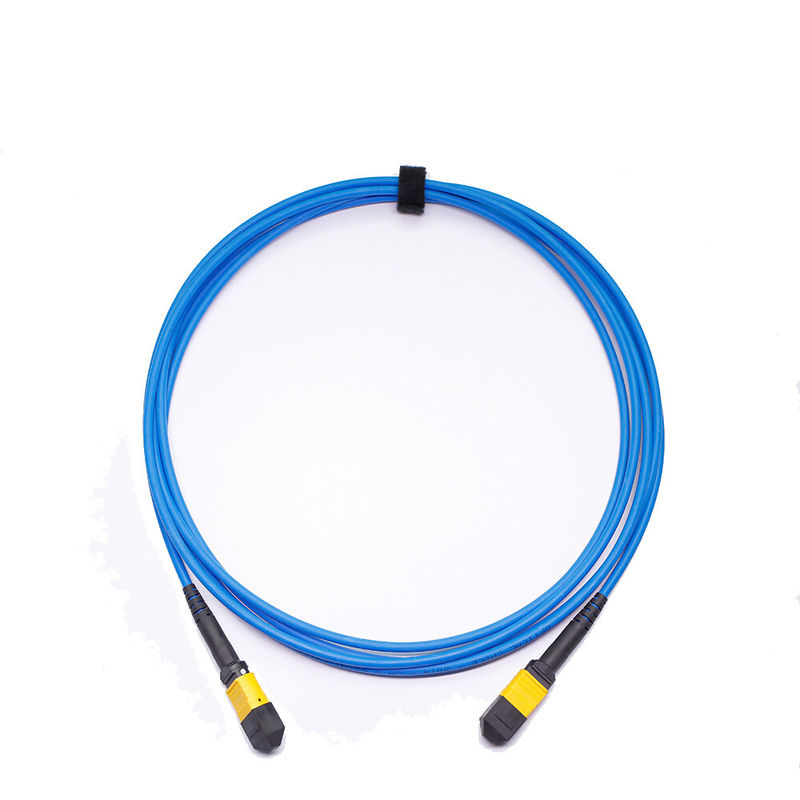

Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters

Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters
Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters
Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters

Large Image :  Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters

Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: MPO / MTP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days ( according to your quantity )
Payment Terms: T/T, Western Union, MoneyGram , paypal
Supply Ability: 500 pcs per day

Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters

Description
Connector Type: MPO / MTP Material: LSZH
Mode Type: Single Mode Fiber Count: 24 Core
Cable Color: Blue Armored Cable Length: Can Be Customized
Cable Diameter: 3.0mm Method: Method B
Cable Type: G657A2 Insertion Loss: ≤ 0.35dB
Return Loss: ≥55dB Wavelength: 1310/1550nm
Patch Cord Length: Customized OEM/ODM: Acceptable
Package: 1 Pcs / Bag
High Light:

mpo fiber cable

,

mpo to mpo cable



Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters





The MPO MTP connectors have standard insertion loss and low insertion loss  . There is a little different between two types .



first of all , the color of the connector of low insertion loss is yellow color  , and standard insertion loss of single mode is green color . If you order the low insertion loss MPO MTP , the color of connector will be yellow .



second , the insertion loss of low insertion loss MPO MTP can be less than 0.35dB , but the insertion loss of standard MPO MTP is less than 0.75dB .



at last , the price of low insertion loss and standard insertion loss connector is different  .





Assembly is built using 24xfibres ferrule interface MPO/MTP® connectors which can be used directly with CFP/CXP 100G

transceivers or when used together with Transition Modules/ Cables can provide 100G compatible infrastructure for 40G QSFP+ transceivers.





MPO/MTP® 24xFibres Ferrule Cable Assembly can be used with 24xfibres ferrules MPO/MTP® to LC

module providing 40/100G compatible infrastructure for legacy non-parallel optics 4/8/10/16G Ethernet/ Fiber

Channels protocols networks.






Type B

Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters 0







Technical Parameter



products name   Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters
mode type  single mode
cable count  24 core ( can be 4/8/12/16/24/32 core )
core type  G657A2 armored cable ( G652D/G657A1/G657A2/G655)
cable color  Blue ( can be customized according to your request )
cable diameter  3.0 ( can be 3.0 and customized diameter )
patch cord length  3 meter ( can be customized according to your request )
out jacket material  LSZH ( can be PVC or LSZH )
insertion loss  ≤ 0.35dB
return loss  ≥40 dB
wave length  1310/1550
core type  9/125um
connector type  female
connector color  Yellow
ferrule material  plastic
operater temperature  -40~ +85℃
cable print  standard print ( can customized )
OEM/ODM  acceptable
warranty  3 years after delivery
Delivery time  2-15 working days ( according to your quantity )



more connector you can choose



Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters 1







How to order



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
