Product Details:
|
| Connector Type: | MPO / MTP | Material: | LSZH |
|---|---|---|---|
| Mode Type: | Single Mode | Core Type: | 24 Core |
| Cable Color: | Yellow | Length: | Can Be Customized |
| Certificate: | CE , ISO , RoHS | Delivery Time: | 2-7 Working Days After Received Deposit |
| Production Ability: | 500 Pcs / Day | Payment Term: | T/T , 30% Deposit In Advance |
| Products Name: | USCOME 24 Core G657A1 LSZH 3.0 Cable Single Mode Fiber Optical MPO / MTP Patch Cord | ||
| High Light: | mpo fiber cable,mpo to mpo cable |
||

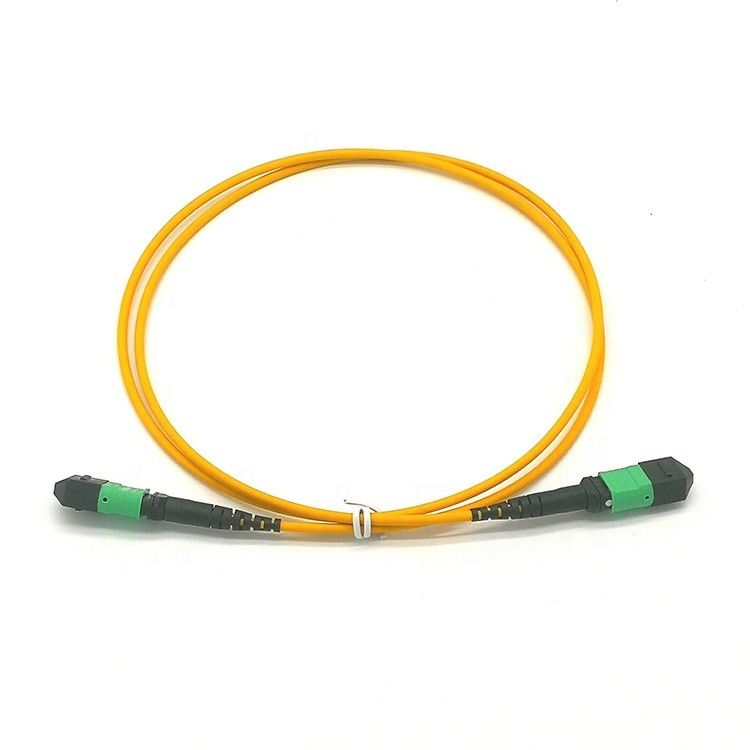

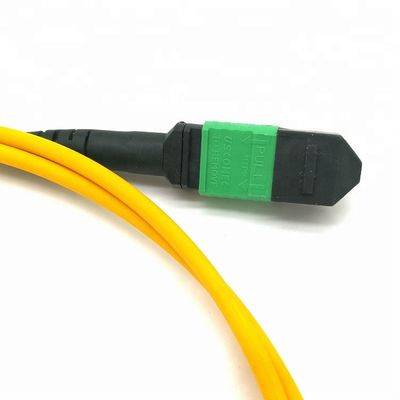

USCOME 24 core G657A1 LSZH 3.0 cable single mode Fiber Optical MPO / MTP Patch cord
The MTP Trunk Cable is designed for 40G (12 cores) and 100G (24 cores) optics direct connection and high-density data center applications; The original US Conec MTP connectors are fully compliant with the MPO standards.
FIBERCAN Fiber optic cable meets RoHS and UL compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality.
| Product Name : | USCOME 24 core G657A1 LSZH 3.0 cable single mode Fiber Optical MPO / MTP Patch cord |
| Model | MTP/2-3-4/5-6-78 |
| 1. A connector | MTP |
| 2. A polish type | PC, UPC, APC. |
| 3. A PIN | F=female |
| 4. B end connector | MTP |
| 5. B polish type | PC, UPC, APC. |
| 6. A PIN | F=female |
| 7. Fiber Type | B6A1=G657A1; |
| 8. Fiber counts | 24 cores |
| 9.Cable Jacket | V=PVC; Z=LSZH |
| 10. Length | 1m |
| 11 Polarty . | A, B, C available |
IEC61754-7 & GR-1435-CORE compliant.
Modular design, plug-locking structure,easy for test,Install,remove and adjust. Usually,single MTP / MPO connectors typically can accommodate 12 or more fiber, 1U height wiring space can accommodate up to 96 LC optical interface, Section. Saving Cabinet and rack space, easy cable management Kinds of fiber,cable available,to meet different customer needs.
Can choice of male,female.Achieve precise positioning with the adapter connected via Pin-pin positioning function,high stability.
Multi-core ferrule, small size, high speed and high capacity to meet the needs of optical fiber communication systems and high-efficiency high-density interconnect wiring. For future network infrastructure, highly scalable, supports Ethernet and Fiber Channel requirements 10/100-1Gbps.
What is the MPO/MTP test requests?
a.Endface request:
| 400 X | Defect description | Allow quantity | |
| Fiber(9um,50um,62.5um) | White scratches | ≤3um | No limited |
| Spot | ≤2um | 5 PCS | |
| Defect | / | No allowed | |
| Cladding (62.5-125um) |
White scratches | ≤3um | No limited |
| ≤5um | 1 PCS | ||
| Black scratches | ≤3um | 2 PCS | |
| Black spot | ≤2um | No limited | |
| ≤5um | 3 PCS | ||
| Defect | ≤2um | Around no limited | |
| ≤15um | Total length is less than the side length 1/4 | ||
| Plastic ring | / | No limited | |
b.Performance:
| MPO/MTP | SM standard ferrule | SM low loss ferrule | MM standard ferrule | MM low loss ferrule | |
| IL Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB | |
| RL | APC≥50dB | ≥ 25dB | ≥ 35dB | ||
| PC ≥ 40dB | |||||
| Repeatability | ≤0.30dB(Plug more than 500 times) | 0.30dB(Plug more than 1000 times) | |||
| Interchangeability | ≤0.30dB(With either a matching connector) | ||||
| Tensile strength | ≤0.30dB(Maximum tension 66N) | ||||
| Shock | ≤0.30dB(10~55Hz) | ||||
| Temperature Range | -40°C ~ +75°C | ||||
c.Interference indicators:
| MPO/MTP Connector | Dimension 3D Test |
| Radius of Curvature | X ≥2000mm ,Y ≥50mm |
| Fiber Height | 1000~4000 nm |
| Endface Angle | X ±0.3° ,Y ±0.3° |
| Core Dip | ±300nm |
d.Length Tolerance:
| Length(M) | Tolerance |
| ≤10 | + 10CM |
| 10<L≤30 | + 15CM |
| >30 | + 10% |
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.
Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.
Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.
Using temperature
-40° ~ +80°
Application :
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Pakcing :
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
Delivery :
We can delivery it by air and by sea . it is according to your quantity and requirements .
Payment :
Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .
Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR
