Product Details:
|
| Connector Type: | MPO / MTP -MPO/MTP | Material: | PVC |
|---|---|---|---|
| Mode Type: | Single Mode | Core Type: | 12 Core |
| Cable Color: | Yellow | Length: | Can Be Customized |
| Certificate: | CE , ISO , RoHS | Delivery Time: | 2-7 Working Days After Received Deposit |
| Production Ability: | 500 Pcs / Day | Payment Term: | T/T , 30% Deposit In Advance |
| Products Name: | 12 Fiber Trunk MTP / MPO Pvc Round Cable Single Mode 9 / 125 Fiber Optic Patch Cord | ||
| Highlight: | mpo fiber cable,mpo to mpo cable |
||

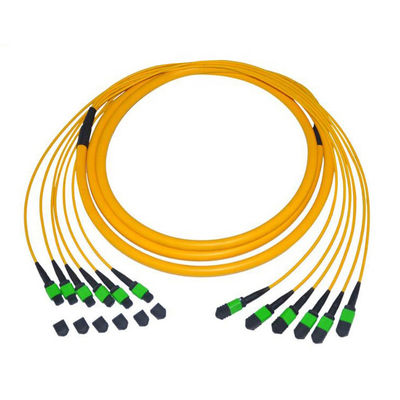

12 Fiber trunk MTP / MPO pvc round cable single mode 9 / 125 Fiber Optic Patch Cord
Connector type: MPO-female, MPO-male
Ferrule End-face: PC, APC
Number of fiber cores: 4, 8, 12, 24
Connector type: MPO-female, MPO-male, FC, SC, LC, ST, MTRJ
Ferrule End-face: PC, UPC, APC
Core Type: SM, MM(OM1, OM2, OM3, OM4)
Cable Diameter(mm): 0.9,2, 3
Cable Length(M): L=1, 2, 3......
Pigtail length(M): L1=0.5, 0.6, 1.0
Cable type: RJ: Ribbon Cable, RB:Bare Ribbon Cable, RI: Mini Round Cable
MPO Interference index
| Connector type | Testing items | Min | Max |
| MPO PC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | ||
| Angle_X(deg) | -0.2 | 0.2 | |
| Angle_Y(deg) | -0.2 | 0.2 | |
| Max.DH.All Fiber(nm) | -600 | 600 | |
| Max.DH.Ave(nm) | -300 | 300 | |
| Max.DH.Adj(nm) | -300 | 300 | |
| Max. Core Dip(nm) | -300 | 300 | |
| Fiber height(nm) | -300 | 300 | |
| ROC_X(abs)(mm) | 1000 | 3000 | |
| MPO APC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | ||
| Angle_X(deg) | -0.2 | 0.2 | |
| Angle_Y(deg) | 7.8 | 8.2 | |
| Max.DH.All Fiber(nm) | -600 | 600 | |
| Max.DH.Ave(nm) | -300 | 300 | |
| Max.DH.Adj(nm) | -300 | 300 | |
| Fiberheight(nm) |
What is the MPO/MTP test requests?
a.Endface request:
| 400 X | Defect description | Allow quantity | |
| Fiber(9um,50um,62.5um) | White scratches | ≤3um | No limited |
| Spot | ≤2um | 5 PCS | |
| Defect | / | No allowed | |
| Cladding (62.5-125um) |
White scratches | ≤3um | No limited |
| ≤5um | 1 PCS | ||
| Black scratches | ≤3um | 2 PCS | |
| Black spot | ≤2um | No limited | |
| ≤5um | 3 PCS | ||
| Defect | ≤2um | Around no limited | |
| ≤15um | Total length is less than the side length 1/4 | ||
| Plastic ring | / | No limited | |
b.Performance:
| MPO/MTP | SM standard ferrule | SM low loss ferrule | MM standard ferrule | MM low loss ferrule | |
| IL Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB | |
| RL | APC≥50dB | ≥ 25dB | ≥ 35dB | ||
| PC ≥ 40dB | |||||
| Repeatability | ≤0.30dB(Plug more than 500 times) | 0.30dB(Plug more than 1000 times) | |||
| Interchangeability | ≤0.30dB(With either a matching connector) | ||||
| Tensile strength | ≤0.30dB(Maximum tension 66N) | ||||
| Shock | ≤0.30dB(10~55Hz) | ||||
| Temperature Range | -40°C ~ +75°C | ||||
c.Interference indicators:
| MPO/MTP Connector | Dimension 3D Test |
| Radius of Curvature | X ≥2000mm ,Y ≥50mm |
| Fiber Height | 1000~4000 nm |
| Endface Angle | X ±0.3° ,Y ±0.3° |
| Core Dip | ±300nm |
d.Length Tolerance:
| Length(M) | Tolerance |
| ≤10 | + 10CM |
| 10<L≤30 | + 15CM |
| >30 | + 10% |
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.
Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.
Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.
Using temperature
-40° ~ +80°
Application :
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Pakcing :
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
Delivery :
We can delivery it by air and by sea . it is according to your quantity and requirements .
Payment :
Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .
Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR
More products :
We have optical patch cord , pigtail , adaptor , attenuator , distribution box , Quick Assmembly connector .etc . If you need more products or catalogue , you can feel free to contact us
