100G Fiber Optic CWDM Module 4CH/8CH WDM Mux/Demux with Low Insertion Loss for Optical Networks

Brand Name:	New Light
Model Number:	WDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

OEM / ODM:

Acceptable

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

100G Fiber Optic Passive Cwdm Module 4CH/8CH CWDM WDM Mux/demux Add Drop Multiplexer Devices

Mode Type:

Single Mode

Supply Ability:

1000000

Highlight:

wall mount fiber termination box

wdm in optical fiber

Product Description

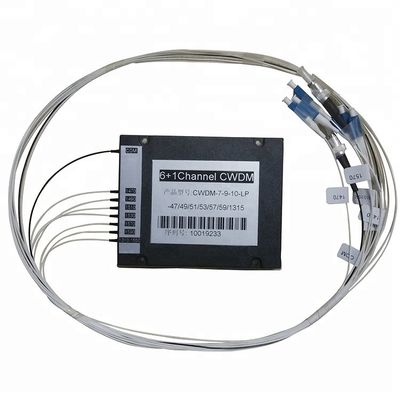

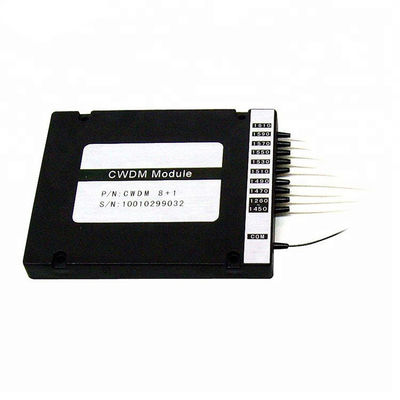

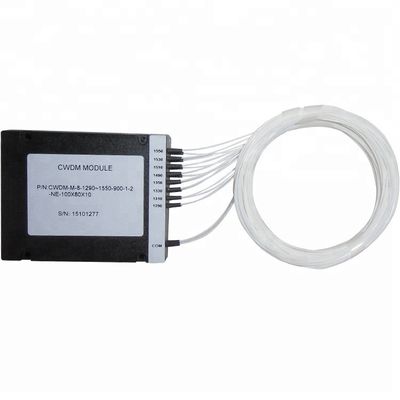

100G Fiber Optic Passive CWDM Module

4CH / 8CH CWDM WDM Mux / Demux Add Drop Multiplexer Devices

FTTH ABS Box 1x16 Channel Fiber Optic CWDM Module with LC Connectors Mux/Demux

We offer a comprehensive range of CWDM Mux-Demux and Optical Add Drop Multiplexer (OADM) units designed for various applications and network solutions. Common applications include: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV.

Technical Specifications

Parameter	Value	Unit
Wavelength	1270~1610	nm
Insertion Loss	3.0	dB
Isolation	≥30 / ≥40	dB
Return Loss	>50	dB
Temperature sensitivity	<0.005	dB/℃
PDL	<0.10	dB
PMD	<0.10	Ps
Directivity	≥50	dB
Max input power	300	W
Working temperature	-20~+70	°C
Storage temperature	-40~+85	°C
Fiber type	SMF-28e
Package Dimension	1008010 ABS Box	mm
Pigtail	250um/900um/2.0mm/3.0mm	mm

1*N CWDM Mux/Demux Module Configuration

ITU	Channels Number	Application Type	Central Wavelength	Fiber diameter	Fiber Length	Connector
1=100G 2=200G	4=4 Channels 8=8 Channels 16=16 Channels	M=Mux D=DeMux	41=1410nm 43=1430nm 45=1450nm 47=1470nm 49=1490nm 51=1510nm 53=1530nm 55=1550nm 57=1570nm 59=1590nm	1=250um 2=900um 3=2.0mm 4=3.0mm XX=Other	05=0.5m 10=1.0m 15=1.5m 20=2.0m XX=Other	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC X=Other

Key Features

Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1620nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability

Applications

CWDM System
Add/Drop
PON Networks
CATV Links

Compliance Standards

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS

Packaging & Shipping

Packaging: Bags & carton box

Shipping Options: International Express via Fedex, DHL, UPS, TNT and EMS, by air or by sea. Please notify us in advance if you have a preferred carrier.

Delivery and Payment Terms

Payment Methods: T/T, PAYPAL, WESTERN UNION, MONEY GRAM, L/C
Payment Terms: 30% deposit in advance, 70% balance paid before delivery
