Product Details:
|
| Products Name: | Indoor E2000 APC Metal Cap Connector SM DX PVC Fiber Optic Patch Cord Yellow Outjacket | Mode Type: | Single Mode |
|---|---|---|---|
| Cable Type: | G652D | Cable Material: | PVC |
| Cable Diameter: | 3.0mm | Cable Color: | Yellow |
| Length: | 1M (can Be Customized) | Fiber Count: | Duplex |
| Insertion Loss: | ≤ 0.3dB | Return Loss: | ≥60dB |
| OEM /ODM: | Acceptable | Warranty: | 3 Years After Delivery |
| Wave Length: | 1310 /1550 | ||
| High Light: | single mode fiber optic cable,duplex fiber patch cord |
||

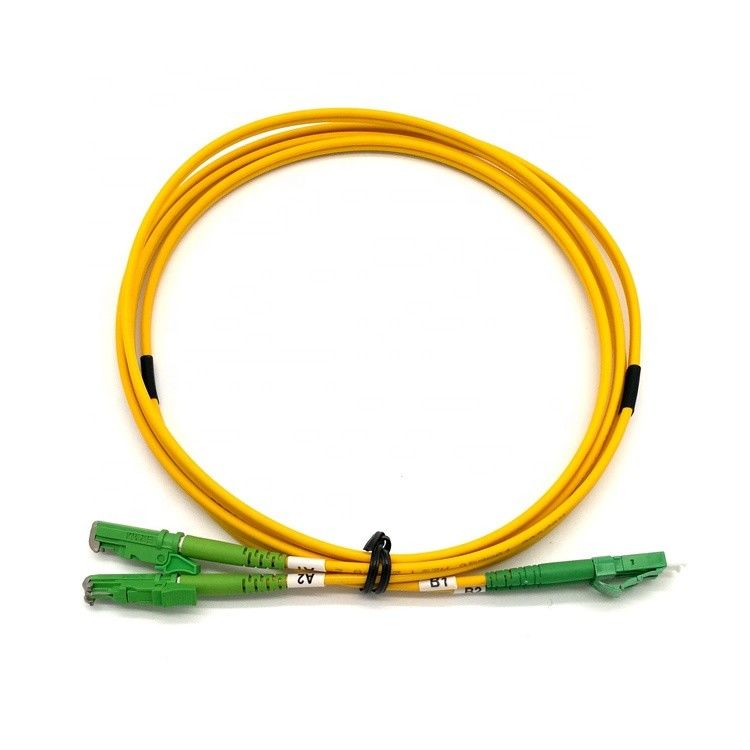

indoor E2000 APC metal cap connector SM DX PVC fiber optic patch cord yellow outjacket
Fiber optic cable have indoor and outdoor type . We can customized the patch cord according to your request of using . the material and function of indoor and outdoor cable is diiferent . If you need use the patch cord in outdoor environment . you should let us know before we offer price . so that we can quote the outdoor cable for you and ensure the patch cord can meet your requirements .
indoor cable will be softer than outdoor cable . The indoor E2000 APC metal cap connector SM DX PVC fiber optic patch cord yellow outjacket is APC connector type . also it is single mode . But the APC ferrule polished is inclined 8° angle .And the color of the connector is Green .
The single mode type connector have UPC and APC . UPC is blue color connector and the surface of the ferrule is flat . But APC type is green color connector and as we mentioned above , the surface of ferrule is inclined 8° angle .
Parameter
| products name | indoor E2000 APC metal cap connector SM DX PVC fiber optic patch cord yellow outjacket |
| mode type | single mode |
| cable count | duplex ( can be simplex or others) |
| core type | G652D ( single mode core have G652D/G657A1/G657A2/G657B3/G655) |
| cable color | yellow ( can be customized according to your request ) |
| cable diameter | 3.0 ( can be 2.0 and customized diameter ) |
| patch cord length | 1 meter ( can be customized according to your request ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.3dB ( can be ≤ 0.1dB ) |
| return loss | ≥55-60 dB |
| wave length | 1310/1550 |
| ferrule polished | APC |
| connector color | green |
| ferrule material | ceramic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
Connector type ,more connector or information , you can feel free to contact us .
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
We will have ODM products each period time , and may can not update here , Any interests , welcome to contact us
