16 Core MPO MTP Cable OM5 50/125 Low Insertion Loss Fiber Optic Patch Cord

Brand Name:	New Light
Model Number:	MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP Female

Material:

Mode Type:

Multi Mode

Core Type:

16 Core

Cable Color:

Green

Cable Diameter:

3.0mm

Insertion Loss:

≤ 0.5 DB ( Low Insertion Loss Can Be ≤ 0.3dB)

Return Loss:

≥25dB

Length:

Can Be Customized

OEM/ODM:

Acceptable

Package:

1pcs /bag OPP Bag + Carton Box

Cable Type:

OM5 50/125

Wavelength:

850/1300nm

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

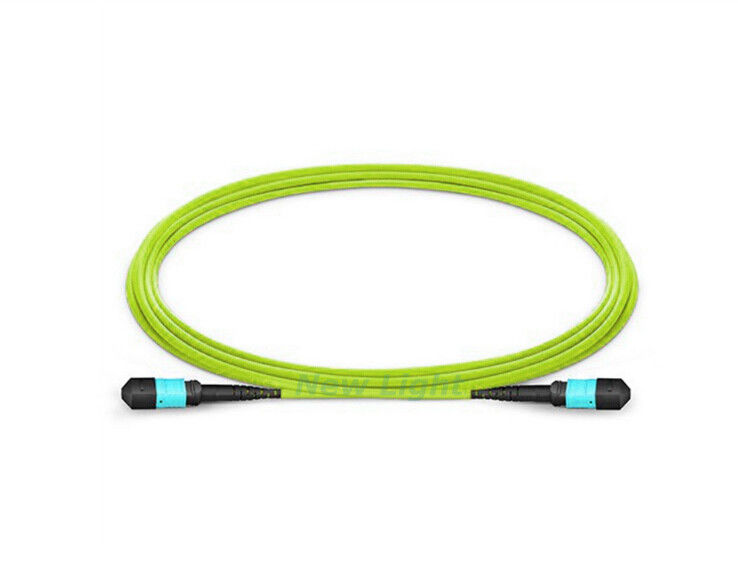

Multi Mode 16 Core MPO MTP Cable Female OM5 50/125 LSZH 3.0mm Low Insertion Loss

16 core MTP/MPO male OM5 50/125 LSZH 3.0mm green cable optical fiber patch cord is a high-density solution designed to support 400G transmission. These assemblies feature single row 16-fiber configurations, providing the highest density physical contact for multi-fiber connectors available in the market.

This high-density trunk cable can directly couple into 16x25G active devices and complies with Telcordia GR-326 Core, TIA 604-18 (FOCIS 18), and IEC 61754-7-3 standards.

Pre-terminated MPO/MTP Technology - Polarity

The three polarity methods - Type A, Type B, and Type C - are implemented to ensure proper bi-directional allocation and connectivity.

Product Features

High precision pins for optimal fiber alignment
Available in UPC and APC configurations
Multiple cable structure options for different installation requirements
Compatible with SM (9/125), MM (50 or 62.5/125), OM3, OM4, and OM5 fiber types
Available in 8/12/16/24/32-fiber configurations
Corning fiber options available
Compliant with Telcordia GR-1435-CORE and RoHS standards

Technical Specifications

Parameter	Specification
Product Name	16 core MTP/MPO female OM5 50/125 LSZH 3.0mm green cable optical fiber patch cord
Mode Type	Multi mode
Cable Count	16 core (can be 4/8/12/16/24/32 core)
Core Type	OM5 (OM1/OM2/OM3-150/OM3-300/OM4/OM5)
Cable Color	Green (customizable)
Cable Diameter	3.0mm (customizable)
Patch Cord Length	3 meter (customizable)
Outer Jacket Material	LSZH (PVC or LSZH available)
Insertion Loss	≤ 0.5dB (low insertion loss can be ≤ 0.35dB)
Return Loss	≥ 25 dB
Wavelength	850/1300nm
Core Type	50/125μm
Connector Type	Female
Connector Color	Aqua/Magenta/Beige available
Ferrule Material	Plastic
Operating Temperature	-40°C to +85°C
Cable Print	Standard print (customizable)
OEM/ODM	Acceptable
Warranty	3 years after delivery
Delivery Time	2-15 working days (depending on quantity)

Available Connector Options

How to Order

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (customizable)
Coating material: PVC / LSZH
Fiber count: Simple / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: Customizable according to your requirements
For MPO/MTP connectors: Specify method (A type / B type / C type), male or female, and fiber count (4/8/12/16/24/32 fiber)

Contact Us: WhatsApp +8613534063703
