Product Details:
|
| Connector Type: | MPO / MTP Female | Mode Type: | Multi Mode |
|---|---|---|---|
| Core Type: | 32 Core | Cable Color: | Green |
| Insertion Loss: | ≤ 0.5 DB ( Low Insertion Loss Can Be ≤ 0.3dB) | Cable Type: | OM5 50/125 600 |
| Wavelength: | 850/953/1300nm | ||
| Highlight: | mpo fiber cable,mpo to mpo cable |
||

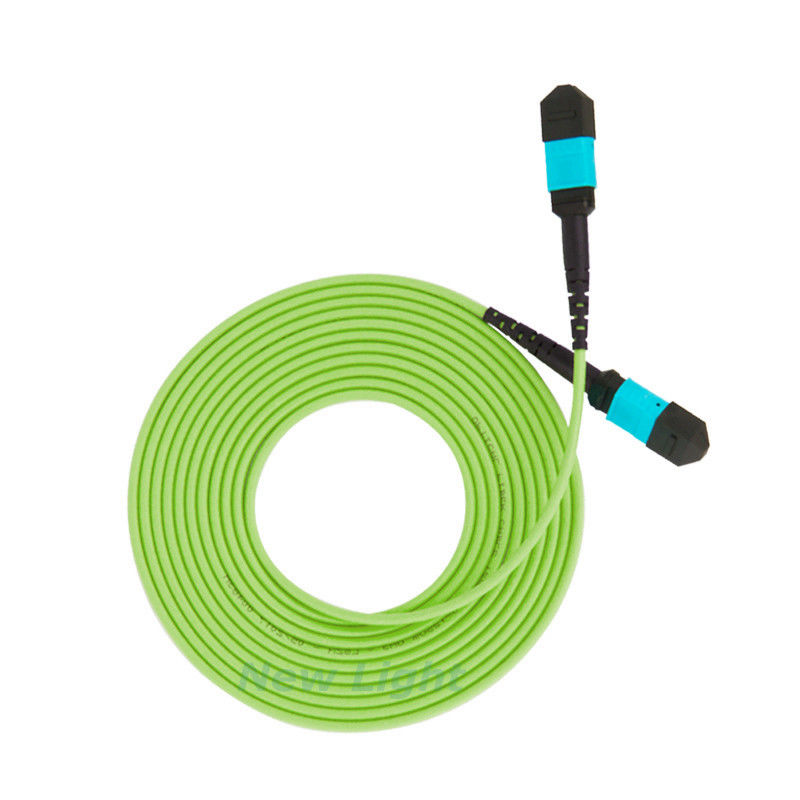

Green Mpo Fiber Optic Patch Cord 32 Core MTP / MPO Female 400G 3 Meter OM5 -600
32 core MPO / MTP is another new type connector ,32-core MTP/MPO OM5 50/125 optic fiber can support 400G transmission. It can satisfied most of the data transmission .
The assemblies are offered in 32-fiber configurations to achieve the highest density physical contact for multi-fiber connectors in the market.
100% factory tested with traceable test data
- Comply Telcordia GR-326 Core, TIA 604-18 and IEC(61754-3) standards
32-Fiber (2x16 Configurations)
- Highest density physical contact for multi-fiber connectors
Ultra high fiber count cabling solution
- Support 400G transmission for Hyperscale Data Center
Available in different fiber modes including singlemode(OS2) & multimode (OM1 ~ OM5) with customized length and structure
- Satisfies client's needs in different industries
Stringent manufacturing process
- Superior optical performance to satisfy customers' need
32-core MTP used in high density trunk solution
Parameter
| products name | 32 core MTP / MPO female 400G 3meter OM5 -600 LSZH 3.0mm green fiber patch cord |
| mode type | multi mode |
| cable count | 32 core ( can be 4/8/12/16/24/32 core ) |
| core type | OM5 ( OM1/OM2/OM3-150/OM3-300/OM4/OM5) |
| cable color | Green ( can be customized according to your request ) |
| cable diameter | 3.0 ( can be 3.0 and customized diameter ) |
| patch cord length | 3 meter ( can be customized according to your request ) |
| out jacket material | LSZH ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.5dB ( low insertion loss can be ≤ 0.35dB ) |
| return loss | ≥25 dB |
| wave length | 850//953/1300 |
| core type | 50/125um |
| connector type | female |
| connector color | Aqua / Magenta /beige are ok |
| ferrule material | plastic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
Connector you can choose :
Related products:
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
