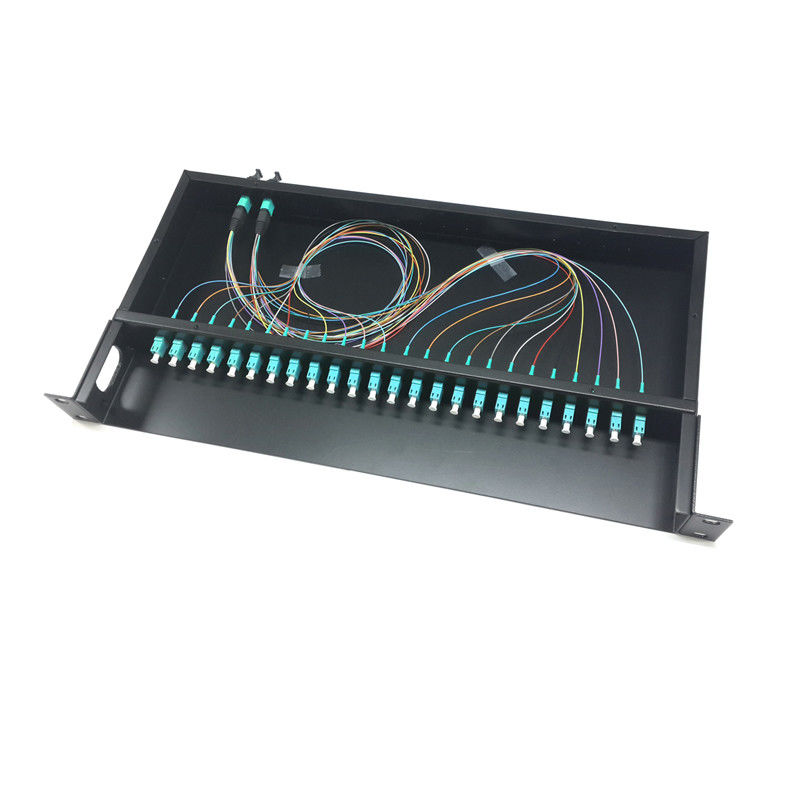

Ribbon Fiber Optic Distribution Frame MPO / MTP cassette Date center Application

Ribbon Fiber Optic Distribution Frame MPO / MTP cassette Date center Application

    • Ribbon  Fiber Optic Distribution Frame MPO / MTP cassette Date center Application
    • Ribbon  Fiber Optic Distribution Frame MPO / MTP cassette Date center Application
  • Ribbon  Fiber Optic Distribution Frame MPO / MTP cassette Date center Application

    Product Details:

    Place of Origin: China
    Brand Name: NL
    Certification: ISO9001
    Model Number: rack mount

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: USD 68-120 set
    Packaging Details: carton box
    Delivery Time: 8-15 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 set per days
    Contact Now
    Detailed Product Description
    Fiber: 16C , 32C ,24C ,8C , 12C , 48C ,96C Material: Specc
    Color: Black Or Customized Application: Date Center
    Feature: Applies To 3.6mm Round Cable And 16C/32C Ribbon Fiber Connector: MPO / MTP
    Mode: SM, MM,MMLL,16C,32C , 24C Spring: Oval Spring
    Cable: 3.6mm Round Cable And 16C/32C Ribbon Fiber Insertion Loss: 0.35dB ; 0.5dB

    MPO / MTP cassette 8C 12C 24C 32C 48C Ribbon fiber optic patch panel





    Specification:



    MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
    These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.





    Offer OEM/ODM :


    Various MPO connectors to meet your requirements.
    Applies to 3.6mm round cable and 16C/32C Ribbon fiber.





    Ribbon  Fiber Optic Distribution Frame MPO / MTP cassette Date center Application



    ​Items Elite Performance Std Performance
    SM MM SM MM
    Insertion Loss 16F 32F 16F 32F 16F,32F 16F,32F
    ≤0.35dB ≤0.5dB ≤0.35dB ≤0.7dB ≤0.7dB
    Return Loss ≥55dB ≥20dB ≥55dB ≥20dB
    Durability 500times
    Operation temperature -40℃~+85℃
    Fiber Type OS2/OM3/OM4/OM5






    Feature :



    1. 100% pre-terminated and tested in factory to ensure transfer performance
    2. Rapid configuration and networking, reduce installation time
    3. Supports 40G and 100G network applications
    4 .Jacket material: LSZH, OFNR, OFNP available
    5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available





    Description:



    MPO connector comes with multifiber applies to high density in data center or telecommunication systems. It depends on the high precision metal guide pin and the high precision ferrule pin hole to ensure the optical alignment. It’s comes with SM, MM,MMLL,16C,32C, high force spring for your choice.

    Ribbon  Fiber Optic Distribution Frame MPO / MTP cassette Date center Application





    Application :



    ▪ Telecom network
    ▪ Ethernet network
    ▪ Optical communication equipment



    Mechanical Properties
    Item Criteria Conformance
    △IL After 50 Matings MPO/MTP ≤0.3dB GR-1435
    △IL After 500 Matings LC/SC/FC/ST ≤0.2dB IEC 61300-2-2
    Min Bend Radius (Dynamic) 20*OD (Cable Diameter)
    Min Bend Radius (Static ) 15*OD (Cable Diameter)









    Compliant to International Standards:


    IEC 61754-7 and GR-1435 complaint; RoHS/REACH and UL94-V0 inflammability grade complaint.







    Note:



    1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

    2.Standard conformance: GR-326,GR-1435.



    Environment Conditions
    Item Criteria Conformance
    Operation Temperature -40~60°C IEC 61753-1
    Storage Temperature -45~85°C
