MPO Cassette Module

50/125 PC Polish MPO Cassette Module 0.5meter Fiber Optic Patch Cord 24 Fiber

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

50/125 PC Polish MPO Cassette Module 0.5meter Fiber Optic Patch Cord 24 Fiber

Brand Name:	New Light
Model Number:	MPO -LC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

24 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Multi Mode

Cable Type:

50/125 OM3

LC/SC Insertion Loss:

≤ 0.3dB

LC/SC Return Loss:

≥45dB

MPO Return Loss:

≥25dB

MPO Insertion Loss:

≤ 0.5dB

Wavelength:

850/1300nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

mpo cassette patch panel

mtp casstte module

Product Description

24 fiber 0.9mm cable MTP casstte module 50/125 PC polish 0.5meter fiber optic patch cord

Casstte patch cord specification :2 pcs 12 core MPO/male -LC multi mode 50/125 OM3-300 LSZH 0.9mm 0.5meter

Features:

◆ Suitable for MPO/MTP application

◆ High-density and small design;Easy and fast installation

◆ 12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts

◆ Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2) fiber.

◆ Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance

◆ Metallic shell with high strength protect the inner fibers effectively

◆ Supports easy reconfiguration for moves, adds, and changes

Application:

◆ Data Centre Infrastructure

◆ Storage Area Network-Fiber Channel

◆ Emerging 40 & 100Gps Protocols

What's Inside:

One MTP brand adaptor in back
Fan out assembly inside the cassette
4 duplex LC connections in the front
Cassette module body can be configured to multiple manufacturers fit and form factor

Technical Parameter

products name	24 fiber 0.9mm cable MTP casstte module 50/125 PC polish 0.5meter fiber optic patch cord
casstte size	1179935mm
mode type	multi mode
cable count	24 core
core type	OM3-300
MPO connector	12 fiber male
cable color	12 color
cable diameter	0.9mm
patch cord length	0.5 meter ( can be customized according to your request )
out jacket material	LSZH ( can be PVC or LSZH )
LC /SC insertion loss	≤ 0.3dB
LC /SC return loss	≥45 dB
wave length	850/1300nm
core type	50/125um
LC /SCconnector color	Aqua
LC/SC ferrule material	Ceramic
MPO ferrule material	plastic
MPO insertion loss	≤0.5dB
MPO return loss	≥25dB
operater temperature	-40~ +85℃
OEM/ODM	acceptable
warranty	3 years after delivery
Delivery time	2-15 working days ( according to your quantity )

Due to the space of the module is small , so the length of the patch cord inside of the module is 0.3-0.5meter .

Warm: this type of MPO cassette module is design for our 1U distribution box , please confirm the size of the patch panel with us before you order .otherwise it will not match for your 1U patch panel .

it have 12 core / 24 core of the module , and the patch cord inside can be customized according to your requirements .

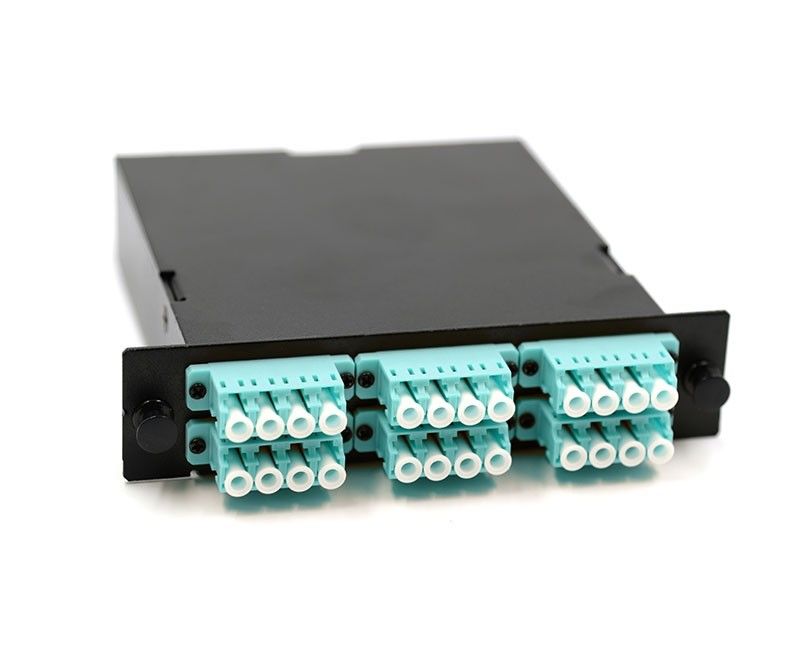

50/125 PC Polish MPO Cassette Module 0.5meter Fiber Optic Patch Cord 24 Fiber 0

How to order

1. Connector type : MPO-LC
2. Mode type : single mode / multi mode
3. Cable diameter : 0.9 mm
4. Coating material : PVC / LSZH
5. fiber count :12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
