24 Fiber 0.5meter MPO Cassette Module with 50/125 OM3 Fiber Optic Patch Cord

Brand Name:	New Light
Model Number:	MPO -LC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

24 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Multi Mode

Cable Type:

50/125 OM3

LC/SC Insertion Loss:

≤ 0.3dB

LC/SC Return Loss:

≥45dB

MPO Return Loss:

≥25dB

MPO Insertion Loss:

≤ 0.5dB

Wavelength:

850/1300nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

mpo cassette patch panel

mtp casstte module

Product Description

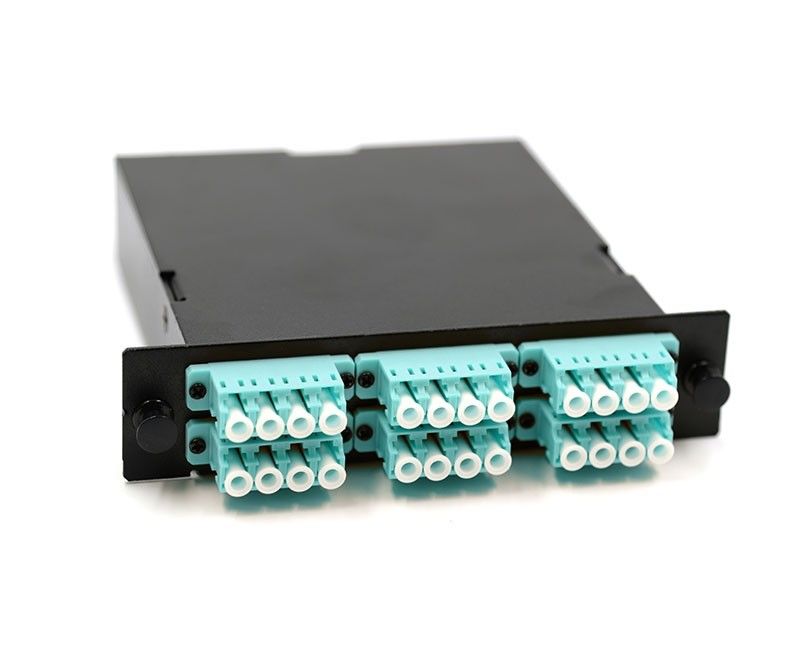

24-Fiber MTP Cassette Module with 0.5m Fiber Optic Patch Cord

24-fiber 0.9mm cable MTP cassette module with 50/125 PC polish 0.5-meter fiber optic patch cord. Configuration includes 2 pieces of 12-core MPO/male to LC multimode 50/125 OM3-300 LSZH 0.9mm 0.5-meter cables.

Key Features

Specifically designed for MPO/MTP applications
High-density, compact design for easy and fast installation
Available in 12 and 24 fiber versions with 12 LC (Duplex) / SC (Simplex) optical parts
Supports Multimode (62.5/125, Standard 50/125, OM3, OM4) and Single mode (OS1/2) fiber
Factory-terminated and tested for guaranteed quality and performance
Metallic shell provides high strength protection for internal fibers
Easy reconfiguration for moves, adds, and changes

Applications

Data Centre Infrastructure
Storage Area Network - Fiber Channel
Emerging 40 & 100Gbps Protocols

What's Included

One MTP brand adapter in back

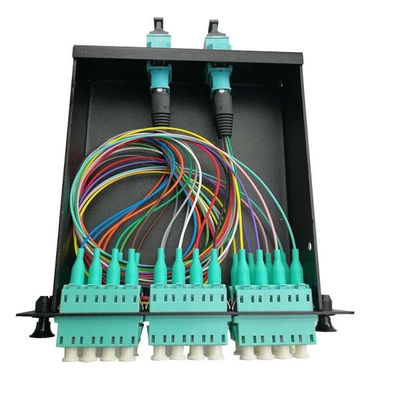

Fan out assembly inside the cassette
4 duplex LC connections in the front
Cassette module body configurable to multiple manufacturers' fit and form factors

Technical Specifications

Parameter	Specification
Cassette Size	1179935mm
Mode Type	Multimode
Cable Count	24 core
Core Type	OM3-300
MPO Connector	12 fiber male
Cable Color	12 color
Cable Diameter	0.9mm
Patch Cord Length	0.5 meter (customizable)
Outer Jacket Material	LSZH (PVC or LSZH available)
LC/SC Insertion Loss	≤ 0.3dB
LC/SC Return Loss	≥ 45dB
Wavelength	850/1300nm
Core Type	50/125μm
LC/SC Connector Color	Aqua
LC/SC Ferrule Material	Ceramic
MPO Ferrule Material	Plastic
MPO Insertion Loss	≤ 0.5dB
MPO Return Loss	≥ 25dB
Operating Temperature	-40°C to +85°C
OEM/ODM	Acceptable
Warranty	3 years after delivery
Delivery Time	2-15 working days (depending on quantity)

Note: Due to the compact module design, the internal patch cord length is 0.3-0.5 meters.

Important: This MPO cassette module is designed for our 1U distribution box. Please confirm your patch panel size with us before ordering to ensure compatibility with your 1U patch panel.

Available in 12-core and 24-core configurations with customizable internal patch cords according to your requirements.

How to Order

Connector type: MPO-LC
Mode type: Single mode / Multi mode
Cable diameter: 0.9mm
Coating material: PVC / LSZH
Fiber count: 12 core / 24 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5

WhatsApp: +8613534063703
