Automatic Fiber Optic Cable Tools , Single Fibre Sion Splicing Machine 70S+ Fujikura

Brand Name: Fujikkura
Model Number: 70S+
MOQ: 1
Price: 1~30
Packaging Details: export packing
Payment Terms: T/T, Western Union, MoneyGram, paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ISO
Product Name:
Automatic Fiber Optic Single Fibre Fusion Splicer 70S+ Fujikura Fusion Splicing Machine
Feature:
Core To Core Alignment Splicing 6sec Tube-heating 9sec
Application Fiber:
Single/SMF,MMF,DSF,NZDSF
Cladding Dia./sheath Dia.:
80-150um/100-3000um
Cleave Length:
5mmto 16mm With Sheath Clamp
Splicing Mode /heating Mode:
Total 100 Splicing Modes/30 Heating Modes
Tupical Splcing Lss:
0.02dB(SM),0.01dB(MM),0.04dB(DSF) And 0.04dB(NZDS)
Return Loss:
≥60dB
Supply Ability:
1000000
Highlight:

fiber optic tool kit

,

fiber optic splicing tool kit

Product Description

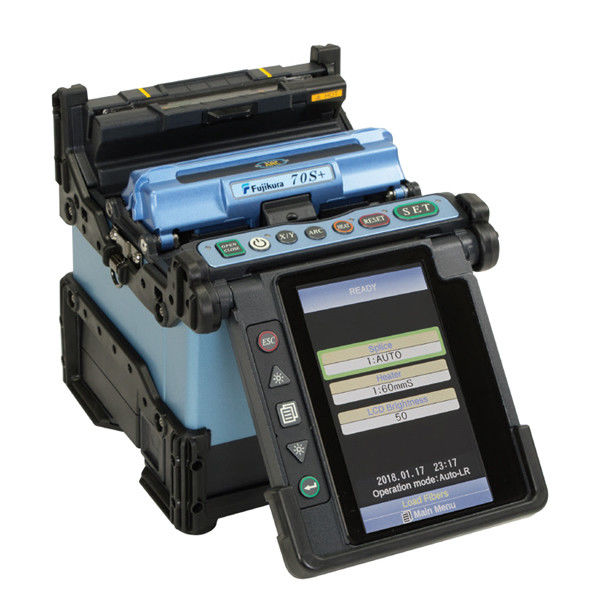

Automatic Fiber Optic Single Fibre Fusion Splicer 70S+ Fujikura Fusion Splicing Machine



The 70S+ is the standard core alignment fusion splicer covering varied splicing needs in those fields with a series of innovative features, such as automated wind protector / tube heaters, 6 seconds splicing and 9 seconds tube heating, ruggedized body, improved carrying case, wireless communication functions, etc. They are all for great splicing efficiency.



  • Bluetooth wireless communication
  • Automated and programmable wind protector
  • 13-second automated tube heater
  • Fully ruggedized for shock, dust and moisture
  • Li-ion battery with 200 splices/shrinks per charge
  • 5mm cleave length for splice on connector or small package needs
  • Sheath clamp or fiber holder operation
  • On-board training and support videos
  • Multi-function transit case with integrated workstation



Model S015591 70S+ fusion splicer kit with cleaver, battery and cord includes:

70S+ Fusion Splicer
CT50 Cleaver
BTR-09 Battery
DCC-18 Battery Charge Cord
ADC-18 AC Adapter
ACC-14 AC Cord
ELCT2-20A Spare Electrodes (pair)
S70C Sheath Clamp
USB Cable
Alcohol Dispenser
Screw Driver
Splicer Carrying Strap
Quick Reference Guide
Video Instruction Manual
CC30 Transit Case with Carrying Strap



Feature




• Splicing 6 sec. ( ULTRAFAST )

• Tube heating time 9 sec. ( Slim 60 mm)

• Minimum manual operation. Splice in 4 steps

• Multi-function transit case with integrated work station

• Slide in AC adaptor

• Bluetooth capability connection



Applicable fibers Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Cladding dia. / Sheath dia. 80-150um / 100-3000um
Cleave length 5mm to 16mm with sheath clamp
Splice mode / heating mode Total 100 splice modes / 30 heating modes
Typical splice loss*1 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) and 0.04dB (NZDS)
Return loss >>60dB
Attenuation splice function Intentional high splice loss of 0.1dB to 15dB 0.1dB step can be made for an in-line fixed attenuator.
Typical splice time 6sec ULTRA FAST
7sec SM FAST, 10sec SM AUTO
Typical tube heating time 13sec FP-03,coating dia.250um
14sec FP-03,coating dia.900um
9sec Slim 60mm ,coating dia.250um
Splice result storage Last 20,000 splices
Viewing methods / magnification 2 axis CMOS camera with 4.73” color LCD.
X / Y (320X magnification), or both X and Y simultaneously (200X magnification)
Tension test 1.96 to 2.25N
Applicable protection sleeve 60mm, 40mm and Fujikura micro sleeves
No. of splice / heating per battery full charge*2 Typical 200 cycles with BTR-09
Electrode life Typical 5000 splices
Wireless connectivity Wireless technical standard : Bluetooth4.1LE*³
OS : Andoroid 5.0 or above, ios 8.0 or above (iphone6 above)
Size / weight 146W x 159D x 150H (mm) / 2.7kg (including battery)
Operating condition Altitude : 0 to 5,000m above sea level, Wind : 15m/sec*4
Temperature : -10 to 50deg C, Humidity : 0 to 95%RH, non-dew
Resistance features*5 Shock : 76cm (30inch) all surface drop
Dust : Exposure to dust (0.1 to 500um dia Alumina Silicate), IP5X
Rain : H=10mm/hr for 10min, IPX2
Other features PC software upgrade / data management
Terminals USB 2.0 (Mini-B type) connector for PC communication.
6-pin Mini-DIN connector for RS02 or RS03 power supply.



Automatic Fiber Optic Cable Tools , Single Fibre Sion Splicing Machine 70S+ Fujikura 0



Automatic Fiber Optic Cable Tools , Single Fibre Sion Splicing Machine 70S+ Fujikura 1


Automatic Fiber Optic Cable Tools , Single Fibre Sion Splicing Machine 70S+ Fujikura 2
