FTTH 12 / 48 / 96 Core Fiber Optic Cable Termination Patch Panel Compact Structure

Brand Name:	New light
Model Number:	96F panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T, Western Union, MoneyGram ,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Fiber:

12 / 24 / 48 / 96 Fiber

Color:

Black

Material:

SPECC

Aplication:

Data Centers,pre-terminated Installations

Adapter Type:

MPO / MTP Adapter

Front Panel:

LC , SC , ST , FC , E2000

Size:

19 Inch

Max Capacity:

From 12 Fiber To 144 Fiber

Interface:

Powder Coated

Product Name:

24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel

Tray:

12/24/48/72/96 Core

Weight:

Supply Ability:

10000 per day

Highlight:

fiber optic parts and accessories

fiber optic accessories

Product Description

FTTH 12 / 48 / 96 core Fiber Optical Patch Panel / Termination Box

Product description:

The patch panel system in its basic form is supplied with the panels unloaded ready for you to install the adapter of your choice.

The panel can also be pre-loaded complete with the required adapter and simple splice management kit, or supplied with pre-terminated cable to meet your project needs.

The module box encapsulation structure, collocation to the wiring boxes, compact structure, high density, use convenient operation.

It can be installed in a 19-inch standard integrated distribution box, network cabinet and open frame.Connect the optical path terminal.It is made of high quality cold rolled sheet material, surface electrostatic spraying treatment, no impurities, no bubble, and even color.

There different models to fit for 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ,e2000 etc . Related fiber accessories and pigtails are optional.

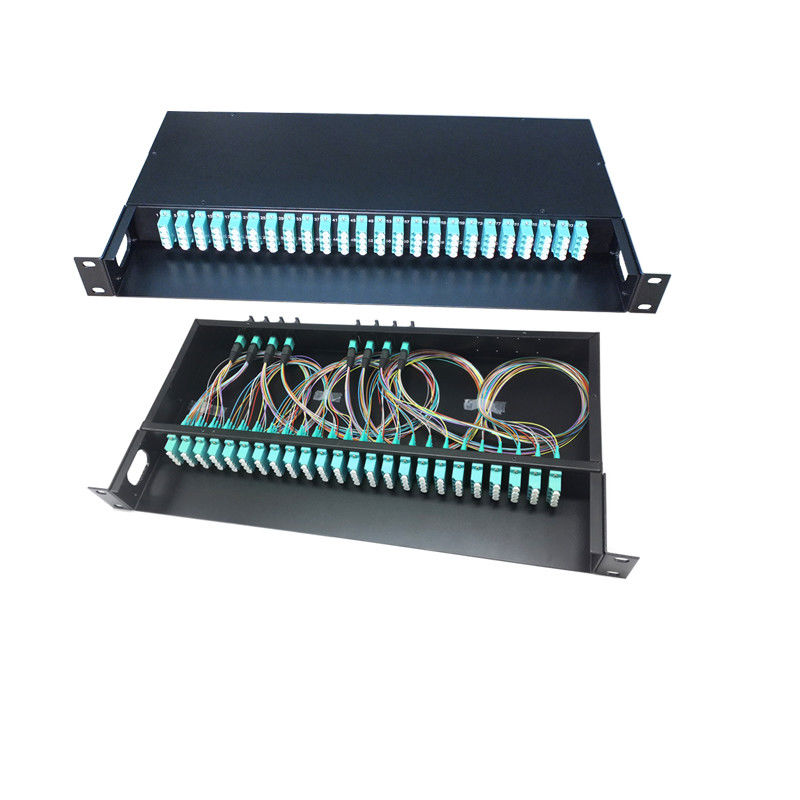

FTTH 12 / 48 / 96 Core Fiber Optic Cable Termination Patch Panel Compact Structure 0

Application:

1. Telecommunications subscriber loop

2. Fiber to the home (FTTH)

3. LAN/WAN

4. CATV

Features:

Used to the branch connection of optical cable termination

19'' Standard Structure, Rack mounting

Available for the installation of adaptors

Drawer Structure, Easy for Operation.

Compact design for space saving

Easy for management and operation

Standard size, light weight and reasonable structure

Mechanical and environmental characteristics:

Projects	Parameter
Operating temperature	-25℃~+40℃
Storage temperature	-25℃~+55℃
Relative humidity	≤85％(+30℃)
Air pressure	70Kpa~106Kpa
Color	Black

Dimension:

Model	MPO-LC Type Cassette Quantity	Height	Dimension(LxWxH)
MPO-LC	2	1U	430354.144mm

FTTH 12 / 48 / 96 Core Fiber Optic Cable Termination Patch Panel Compact Structure 1

FTTH 12 / 48 / 96 Core Fiber Optic Cable Termination Patch Panel Compact Structure 2
