19 Inch 24 Port ODF Fiber Optic Patch Panel Termination Box Easy For Operation

19 Inch 24 Port ODF Fiber Optic Patch Panel Termination Box Easy For Operation

    • 19 Inch 24 Port ODF Fiber Optic Patch Panel Termination Box Easy For Operation
    • 19 Inch 24 Port ODF Fiber Optic Patch Panel Termination Box Easy For Operation
    • 19 Inch 24 Port ODF Fiber Optic Patch Panel Termination Box Easy For Operation
  • 19 Inch 24 Port ODF Fiber Optic Patch Panel Termination Box Easy For Operation

    Product Details:

    Place of Origin: China
    Brand Name: New light
    Certification: ROHS ;ISO9001
    Model Number: 12/ 24 F panel

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: USD 68-120 set
    Packaging Details: opp bag+Carton box
    Delivery Time: 2-15 working days
    Payment Terms: T/T, Western Union, MoneyGram ,Paypal
    Supply Ability: 10000 per day
    Contact Now
    Detailed Product Description
    Fiber: 12 / 24 Fiber Color: Black
    Material: SPECC Aplication: Data Centers,pre-terminated Installations
    Adapter Type: MPO / MTP Adapter Front Panel: LC , SC , ST , FC , E2000
    Size: 19 Inch Max Capacity: From 12 Fiber To 144 Fiber
    Interface: Powder Coated Product Name: 24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel
    Tray: 12/24/48/72/96 Core Weight: 6kg

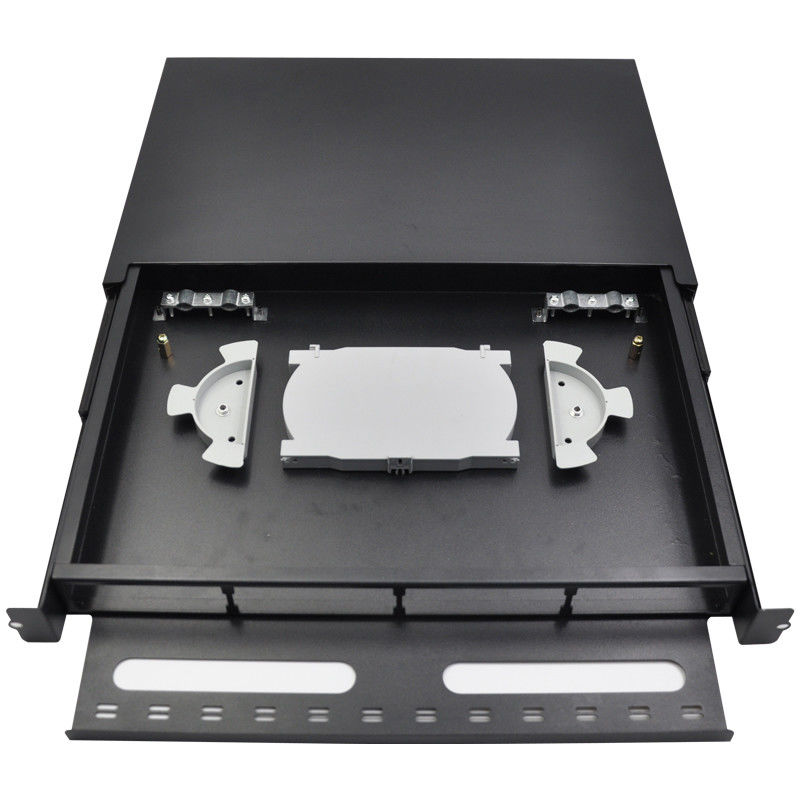

    19 inch 24 Port ODF Fiber Optic Sliding Patch Panel / Termination Box



    Product description:



    The Patch panel is the end of a cable, one is the cable, the other is the pigtail, the equivalent of a fiber optic cable is split into a single optical fiber equipment, installed on the wall of the user cable terminal box, its function is to provide Fiber and fiber welding, fiber and pigtail welding and optical connector transfer. And to provide mechanical protection and environmental protection for optical fibers and their components, and to allow proper inspection to maintain the highest standards of fiber management .



    The module box encapsulation structure, collocation to the wiring boxes, compact structure, high density, use convenient operation.



    It can be installed in a 19-inch standard integrated distribution box, network cabinet and open frame.Connect the optical path terminal.It is made of high quality cold rolled sheet material, surface electrostatic spraying treatment, no impurities, no bubble, and even color.



    There different models to fit for 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ,e2000 etc . Related fiber accessories and pigtails are optional.



    19 Inch 24 Port ODF Fiber Optic Patch Panel Termination Box Easy For Operation







    Application:



    1. Telecommunications subscriber loop

    2. Fiber to the home (FTTH)

    3. LAN/WAN

    4. CATV





    Features:



    Used to the branch connection of optical cable termination

    19'' Standard Structure, Rack mounting

    Available for the installation of adaptors

    Drawer Structure, Easy for Operation.

    Compact design for space saving

    Easy for management and operation

    Standard size, light weight and reasonable structure





    Mechanical and environmental characteristics:



    Projects Parameter
    Operating temperature -25℃~+40℃
    Storage temperature -25℃~+55℃
    Relative humidity ≤85%(+30℃)
    Air pressure 70Kpa~106Kpa
    Color Black






    Dimension:



    Model MPO-LC Type Cassette Quantity Height Dimension(LxWxH)
    MPO-LC 2 1U 430*354.1*44mm









    19 Inch 24 Port ODF Fiber Optic Patch Panel Termination Box Easy For Operation



    19 Inch 24 Port ODF Fiber Optic Patch Panel Termination Box Easy For Operation
