Product Details:
|
| Mode Type: | Single Mode | Insertion Loss: | ≤ 2.5 DB |
|---|---|---|---|
| Connector Type: | SC/UPC | Nuber Of Channels: | 8 Channel |
| Wavelength: | 1470-1610nm | Passband Ripple: | ≤0.30dB |
| Return Loss: | ≥45dB | Derectivity: | ≥50dB |
| Fiber Type: | Corning SMF-28 Ultra | ||
| High Light: | wdm in optical fiber,wall mount fiber termination box |
||

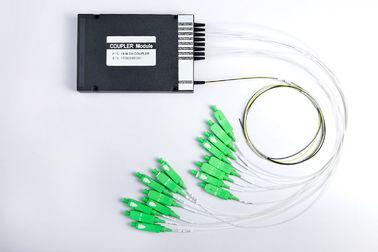

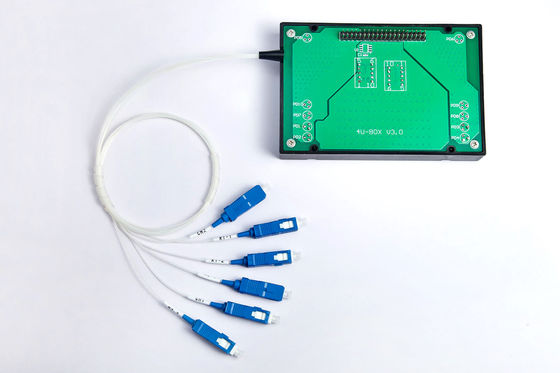

8 channel SC UPC CWDM mux and demux set fiber optic coarse wavelength division multiplexer
| Features |
| ABS Module |
| Low Insertion Loss |
| High Stability |
| Applications |
| CATV Links |
| WDM Systems |
| System Monitoring |
| Test and Measurement Equipment |
| Parameters | Specification | ||||
| MUX | DEMUX | ||||
| Insettion Loss(dB) | 2.5 | 2.5 | |||
| CWDM Central Wavelengths [λc] (nm) | 1470~1610 | ||||
| Passband (@-0.5dB bandwidth)(nm) | ±7.5 | ||||
| Insettion | Adjacent Channel | > 30 | |||
| Non-Adjacent Channel | > 40 | ||||
| Passband Ripple (dB) | ≤0.30 | ||||
| Polarization Dependent Loss (dB) | < 0.30 | ||||
| Polarization Mode Dispersion (ps) | < 0.10 | ||||
| Return Loss (dB) | > 45 | ||||
| Directivity (dB) | > 50 | ||||
| Maximum Optical Power (mw) | 500 | ||||
| Operating Temperature (℃) | -5 ~ +75 | ||||
| Storage Temperature (℃) | -40 ~ +85 | ||||
| Fiber Type | Corning SMF-28 Ultra | ||||
| Connector Type | SC/UPC | ||||
| Pigtail Length(m) | 1 | ||||
| Package Dimension (mm) | 100*80*10 | ||||
1×N CWDM Mux/Demux Module
| OADM | |||||||
| ITU | Channels Number | Application Type | Central Wavelength | Fiber diameter | Fiber Length | Connector
| |
1=100G 2=200G | 4=4 Channels 8=8 Channels 16=16 Channels
| M=Mux D=DeMux | 41=1410nm 43=1430nm 45=1450nm 47=1470nm 49=1490nm 51=1510nm | 1=250um | 05=0.5m | 0=None |
Applications:
CWDM System
Add/Drop
PON Networks
CATV Links
Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
Packaging : bags&carton box
