Product Details:
|
| Mode Type: | Single Mode | Insertion Loss: | ≤ 2.5 DB |
|---|---|---|---|
| Connector Type: | SC/UPC | Nuber Of Channels: | 8 Channel |
| Wavelength: | 1515-1620nm | Passband Ripple: | ≤0.70dB |
| Return Loss: | ≥50dB | Derectivity: | ≥55dB |
| Fiber Type: | Corning SMF-28 Ultra | ||
| High Light: | wdm in optical fiber,wall mount fiber termination box |
||

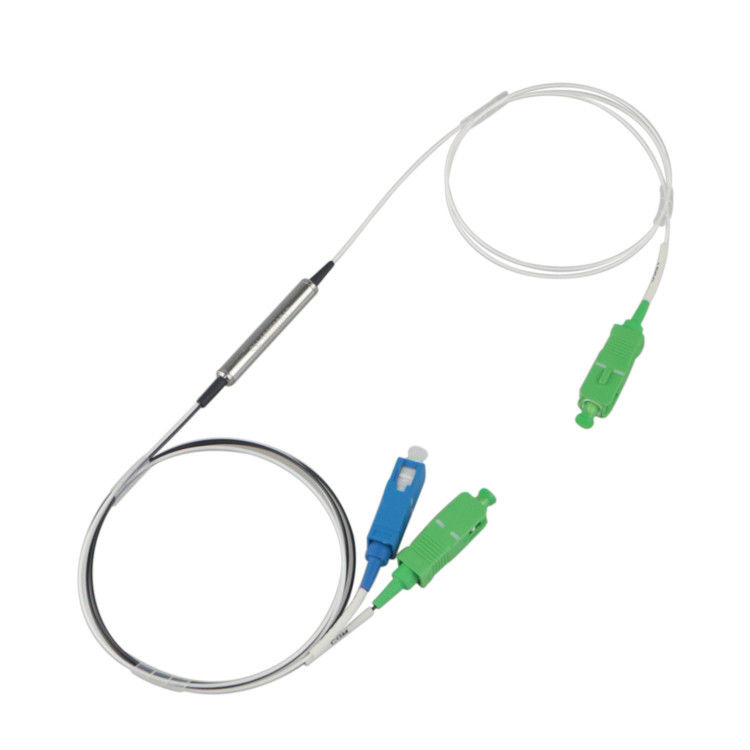

1×2 FWDM Device (3 Port) SC APC FWDM fiber optic filter wavelength division multiplexer
Wavelength-Division Multiplexing Series
1×2 FWDM Device (3 Port)
Features Applications
Low Insertion Loss
High channel Isolation
Wide pass band
High reliability and stability Epoxy free on optical path
Line monitoring
Telecom munication
Cellular Application
Fiber optical Amplifier
Access Network
Performance Specifications
| Parameters | 1×2 FWDM Device | |
| Operating Wavelength Range (nm) | N/A | |
| Pass wavelengths band[λc] (nm) | 1515-1620 | |
| Reflection wavelengths band[λc] (nm) | 1260-1360&1480-1500 | |
| Pass Channel Insertion Loss (dB) | ≤0.80 | |
| Reflection Channel Insertion Loss (dB) | ≤0.70 | |
| Channel Ripple (dB) | ＜0.3 | |
| Isolation (dB) | Pass Channel | ＞30 |
| Reflection Channel | ＞20 | |
| Insertion Loss Temperature Sensitivity (dB/℃) | ＜0.005 | |
| Polariation Dependent Loss (dB) | ＜0.1 | |
| Polarization Mode Dispersion (ps) | ＜0.1 | |
| Return Loss (dB) | ＞50 | |
| Directivity (dB) | ＞55 | |
| Connector Type | COM,1550:SC/APC 1310/1490:SC/UPC | |
| Fiber Length (m) | 1.0 | |
| Fiber type | Corning Single mode SMF-28 | |
| Maximum Optical Power (mw) | 300 | |
| Operating Temperature (℃) | -20～+75 | |
| Storage Temperature (℃) | -40～+85 | |
| Package Dimension (mm) | 5.5*34 | |
1×N CWDM Mux/Demux Module
|
OADM
|
|||||||
| ITU | Channels Number | Application Type | Central Wavelength | Fiber diameter | Fiber Length |
Connector
|
|
|
1=100G 2=200G |
4=4 Channels 8=8 Channels 16=16 Channels
|
M=Mux D=DeMux |
41=1410nm 43=1430nm 45=1450nm 47=1470nm 49=1490nm 51=1510nm |
1=250um |
05=0.5m |
0=None |
Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
Packaging : bags&carton box
