3 Port SC APC FWDM Fiber Optic Filter Wavelength Division Multiplexer with 1515-1620nm Wavelength and Low Insertion Loss

Brand Name:	New Light
Model Number:	FWDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Mode Type:

Single Mode

Insertion Loss:

≤ 2.5 DB

Connector Type:

SC/UPC

Nuber Of Channels:

8 Channel

Wavelength:

1515-1620nm

Passband Ripple:

≤0.70dB

Return Loss:

≥50dB

Derectivity:

≥55dB

Fiber Type:

Corning SMF-28 Ultra

Supply Ability:

1000000

Highlight:

wdm in optical fiber

wall mount fiber termination box

Product Description

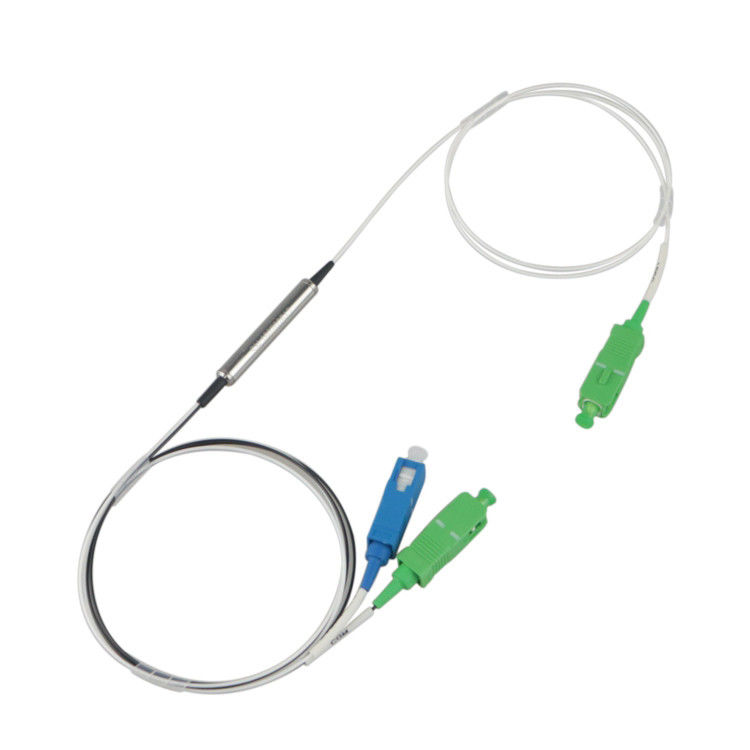

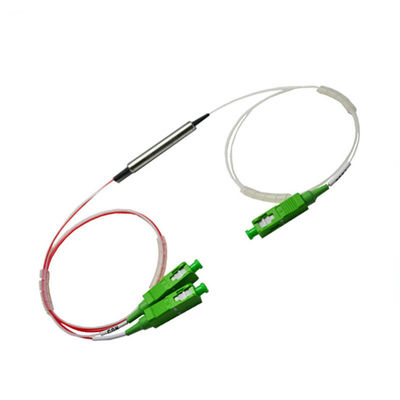

3 Port SC APC FWDM Fiber Optic Filter Wavelength Division Multiplexer 1*2 FWDM Device

1*2 FWDM Device (3 Port) SC APC FWDM fiber optic filter wavelength division multiplexer

Wavelength-Division Multiplexing Series

1*2 FWDM Device (3 Port)

Features & Applications

Key Features

Low Insertion Loss
High Channel Isolation
Wide Pass Band
High Reliability and Stability
Epoxy Free on Optical Path

Applications

Line Monitoring
Telecommunication
Cellular Applications
Fiber Optical Amplifier
Access Network

Performance Specifications

Parameter	1*2 FWDM Device
Operating Wavelength Range (nm)	N/A
Pass Wavelengths Band [λc] (nm)	1515-1620
Reflection Wavelengths Band [λc] (nm)	1260-1360 & 1480-1500
Pass Channel Insertion Loss (dB)	≤0.80
Reflection Channel Insertion Loss (dB)	≤0.70
Channel Ripple (dB)	＜0.3
Isolation (dB) - Pass Channel	＞30
Isolation (dB) - Reflection Channel	＞20
Insertion Loss Temperature Sensitivity (dB/℃)	＜0.005
Polarization Dependent Loss (dB)	＜0.1
Polarization Mode Dispersion (ps)	＜0.1
Return Loss (dB)	＞50
Directivity (dB)	＞55
Connector Type	COM, 1550: SC/APC 1310/1490: SC/UPC
Fiber Length (m)	1.0
Fiber Type	Corning Single mode SMF-28
Maximum Optical Power (mw)	300
Operating Temperature (℃)	-20 to +75
Storage Temperature (℃)	-40 to +85
Package Dimension (mm)	5.5 * 34

1*N CWDM Mux/Demux Module Options

Parameter	Options
Channels Number	4 Channels, 8 Channels, 16 Channels
Application Type	Mux, DeMux
Central Wavelength	1410nm, 1430nm, 1450nm, 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm
Fiber Diameter	250um, 900um, 2.0mm, 3.0mm, Other
Fiber Length	0.5m, 1.0m, 1.5m, 2.0m, Other
Connector	None, FC/APC, FC/PC, SC/APC, SC/PC, ST, LC, Other

Compliance & Standards

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS Compliant

Packaging & Shipping

Packaging: Bags & carton box
Shipping: International Express via FedEx, DHL, UPS, TNT and EMS, by air or by sea. Please notify us in advance if you have a preferred carrier.
