    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: domectic
    Certification: CE,ISO
    Model Number: KF-6471

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: can be negotiated
    Packaging Details: carton box
    Delivery Time: 2-10 working days after received payment
    Payment Terms: T/T, Western Union, MoneyGram, paypal
    Supply Ability: 100 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: KF - 6471 Auto , Half And Manual Fiber Optic Cable Single Fibre Splicing Machine Operation Mode: Auto, Half And Manual
    Return Loss (dB): ≥60dB Fiber Diameter: Cladding Diameter: 80µm~150µm,

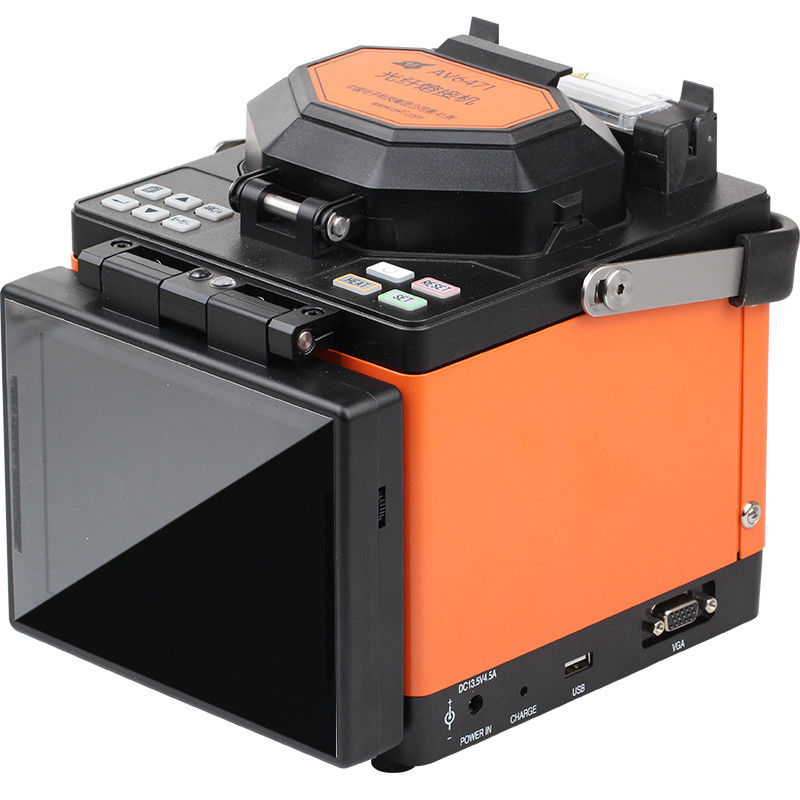

    KF - 6471 Auto , half and manual Fiber Optic Cable Single Fibre Splicing Machine



    KF-6471 Optical Fiber Fusion Splicer adopts a brand new design. Its powerful function and super low splicing loss fully satisfies the requirements for fiber splicing of backbone and FTTX. Its environmental adaptability is good since its lightweight body and exquisite design.



    With new fiber imagery system and digital design, image display is more delicate and clearer. Real-time embedded operation system provides

    user-friendly operation interface and more useful functions. Built-in large capacity Li-on battery supports long time operation in the field.



    Real-time match system for temperature, humidity and air pressure makes it flexibly adapt the changing environment and obtain low insertion loss after splicing in harsh environment.



    Application:

    FTTx FTTH Fiber cable construction

    Fiber cabling repair

    Fiber line maintenance



    Features:



    ● Lightweight and 5.7 inch high definition LCD digital monitor;

    ● High efficiency: 8 seconds for splicing and 25 seconds for heat shrinking;

    ● Automatically splicing after closing shield, automatically heating after closing heating cover;

    ● Display X/Y axis meanwhile, magnification up to 304 times

    ● Real time calibrating system

    ● Built-in high capacity Li-on battery, supports 220 times splicing and heating.









    Parameters

    Specifications

    Align Mode

    Advanced Profile Alignment (PAS)

    Operation Mode

    Auto, Half and Manual

    Fiber Types

    Singe Mode (ITU-T G.652)

    Multimode (ITU-T G.651)

    Dispersion shifted (ITU-T G.653)

    Non-zero dispersion shifted (ITU-T G.655)

    Average Splicing Loss

    SM: 0.02dB

    Fiber Types

    Average Splicing Loss

    MM: 0.01dB

    DS & NZDS: 0.04dB

    Return Loss (dB)

    ≥60dB

    Fiber Diameter

    Cladding diameter: 80µm~150µm

    Fiber Cleave Length

    Coating diameter: 100µm~1000µm

    8~16mm (coating diameter < 250µm)

    16mm (coating diameter 250 ~ 1000µm)

    Splicing Time (s)

    8s (Typical Splicing Time)

    Heating Time (s)

    30s (Typical Heating Time)

    Data Transmission

    USB & VGA

    Heat-Shrinkable Tube

    40mm, 60mm and a series of micro Heat-Shrinkable Tubing

    Magnification

    Vertical 152 times, horizontal 304 times.

    Screen Display

    5.7 inch, 640*480 LCD

    Backlight

    Built-in super High-brightness LED supply convenience for night work



    General Specification



    Power Supply

    Built in 11.1V Li-on Battery with AC Adaptor

    Alternating Current: 100~240V,50/60Hz, 30mW;

    Direct Current: 13.5V/4.5A

    Battery Life

    Support 200 times splicing and heating on one charge (3.5hrs)

    Battery Lifetime

    Cycle life up to 300~ 500 times, replaceable.

    Electrode Lifetime

    >4000 times, replaceable

    Tension Test (N)

    2N

    Operating Temp. ()

    -10℃~50℃

    Relative Humidity

    0~95%(40℃, non considering )

    Work Altitude

    0~5000m

    Weight (Kg)

    2.3kg(Without battery), 2.8kg(with battery)

    Dimensions (mm)

    160(L)×150(W)×140(H) (mm)





    Packing

    item name Qty

    1

    Fusion Splicer

    1 Set

    2

    Fiber Cleaver

    1 PC

    3

    AC Power Adapter

    1 PC

    4

    AC Power Cord

    1 PC

    5

    Spare Electrode

    1 Pair

    6

    Cooling Tray

    1 PC

    7

    Alcohol Pump Bottle

    1 PC

    8

    Blower Brush

    1 PC

    9

    CFS-2 Fiber Optic Stripper

    1 PC

    10

    User’s Manual (CD)

    1 PC

    11

    Carrying Case

    1 PC





    Additional tools



    Auto , Half And Manual Fiber Optic Tools Fiber Optic Cable Single Fibre Splicing Machine
