Product Details:
|
| Product Name: | FTTH KF-115 Handheld 8 Sec Splicing Time , 4.3 Inch Digital LCD Screen Fusion Splicer | Splicing Type: | SM, MM, DS, NZDS |
|---|---|---|---|
| Heat Time: | ≤30s | Cleaved Length: | 8～16mm |
| High Light: | fiber optic tool kit,fiber optic splicing tool kit |
||

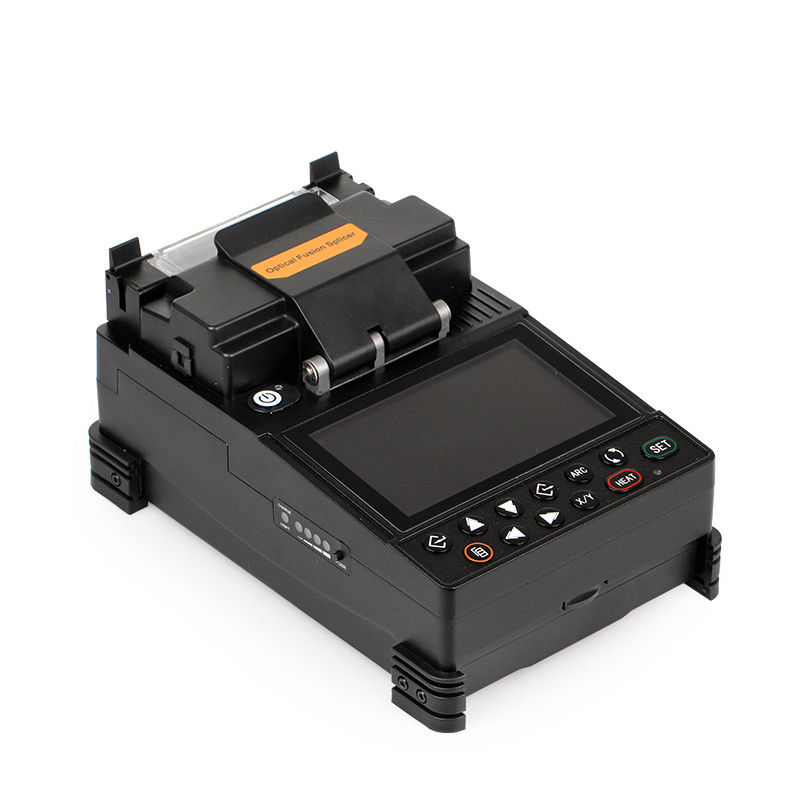

FTTH KF-115 Handheld 8 sec splicing time , 4.3 inch digital LCD screen Fusion Splicer
KF-115 Handheld Fusion Splicer, with high performance price ratio, With smart appearance, reliable quality,
KF-115 is a special design for the installation,operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction,inspection, maintenance of fiber cable.
Features
● Used for FTTH and ordinary fiber project
● 8 sec splicing time and 30 sec heat time
●Core to core alignment by PAS technology
●300 X or Y view, 150 X and Y view
● 4.3 inch digital high quality LCD screen, observe X and Y view at same time
● Three in one fixture, splicing single fiber, cable indoor and pigtail
● Built in large capacity lithium battery of 200 times splicing and heating
● Small size and light weight, 1.6KG including battery
|
Model |
KF-115 Handheld Fusion Splicer |
|
Splicing Type |
SM, MM, DS, NZDS |
|
Splicing Loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
|
Return Loss |
>60dB |
|
Splicing Mode Fiber Alignment |
Manual, Half Auto, Auto Core to Core Alignment by PAS technology |
|
Applicable Fiber |
Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
|
Splicing Time |
≤9s |
|
Heat Time |
≤30s |
|
Cleaved Length |
8～16mm |
|
Fiber Image/ Magnification |
300/150 |
|
View Display |
4.3 inch digital high quality LCD screen |
|
Tension Test |
Standard 2N (option) |
|
Heat Shrinkable Sleeve |
60mm, 40mm and serials heat Shrinkable Sleeve |
|
Battery Capacity |
300 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
|
Battery Life |
Cycling charge 300-500 times, easy to replace battery |
|
Electrodes Life |
3000, easy to replace electrodes |
|
Power Source |
≤20W |
|
Interface |
USB Convenient data download and software update |
|
Construction Lighting |
Built in high brightness, wide range of lights, easy to operate at night |
|
Power supply |
Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-2 40V, output: DC13.5V/4.5A |
|
Operating Condition |
0-5000m above sea level, Temperature: -10-60℃, Humidity:0～95%RH (No dew) |
|
Weight |
1.6KG (including battery), 1.1KG (excluding battery) |
|
Dimension (LxWxH) |
200mm(L)×130mm(W)×98mm(H) |
standard configuration
| No |
Name |
Qty |
| 1 |
Fusion Splicer (KF-115) |
1 set |
| 2 |
Fiber Cleaver |
1 pc |
| 3 |
Fiber Stripper |
1 pc |
| 4 |
AC Adaptor |
1 pc |
| 5 |
Li Battery |
1 pc |
| 6 |
Charger |
1 pc |
| 7 |
Spare Electrodes |
1 pair |
| 8 |
Cooling Tray |
1 pc |
| 9 |
User Manual CD |
1 pc |
| 10 |
Carrying Case |
1 pc |
