ABS /PPT Black Horizontal Type Fiber Optic Joint Box 24 - 96 Fiber With Splicing

Brand Name:	New Light
Model Number:	2 in 2 out
MOQ:	1
Price:	7.9~40
Packaging Details:	export packing
Payment Terms:	T/T, Western Union, MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

ABS / PPT

Size:

440*170*110mm

Fiber Count:

12-96 Fiber

Color:

Black Color

Supply Ability:

10000

Highlight:

ofc joint enclosure

fiber optic joint box

Product Description

ABS /PPT material black horizontal type fiber optic joint box 24 - 96 fiber with splicing

This horizobtal type is made of ABS /PPT material , it is black color . it can be ues for 12-96 fiber of distribution cable and 144fiber of ribon fiber .

It is 2 in and 2 out type , fixed by screw , can resistant of fall of .

It can contain 1-4 pcs of splicing tray . the splicing tray have 12 fiber ,24 fiber .so that it can be use for 12 fiber , 24 fiber ,48 fiber ,96 fiber as your requirements

Feature :

Aging resistance: It has good stability to heat, heat radiation, air, ozone and so on.

Corrosion resistance: Strong resistance to dilute acid, salt water, oxidant, aliphatic hydrocarbons, etc.

Sealing technology: Re-opening seal assembly is used to ensure good airtight and waterproof performance.

Mechanical properties: can withstand harsh conditions such as vibration, impact, cable tensile distortion and strong temperature changes

Locking device: no special tools are required for easy installation and repeated opening.

Different functions: 2 in 2 out

Continuation function: It adopts a laminated clamshell structure, and it is not necessary to disassemble other splicing discs during operation.

According to the standard: YD/T814.1-2013.

Product name	ABS /PPT material black horizontal type fiber optic joint box 24 - 96 fiber with splicing
Protection level	IP68
Scope of application	12 core to 96 core
Gross weight	4 kg
size	440170110mm
Max cable diameter	Φ14mm
In/out port count	2 in 2 out
Main material	ABS / PPT
Scope of use	Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature	- 40 °C ~ + 60 °C
Service life	≥20 years
Application scope	FTTH / FTTB / FTTX Network
Atmospheric pressure	70kPa~106kPa
Insulation resistance	>2*10MΩ/500V(pc)
Tensile strength	>1200N

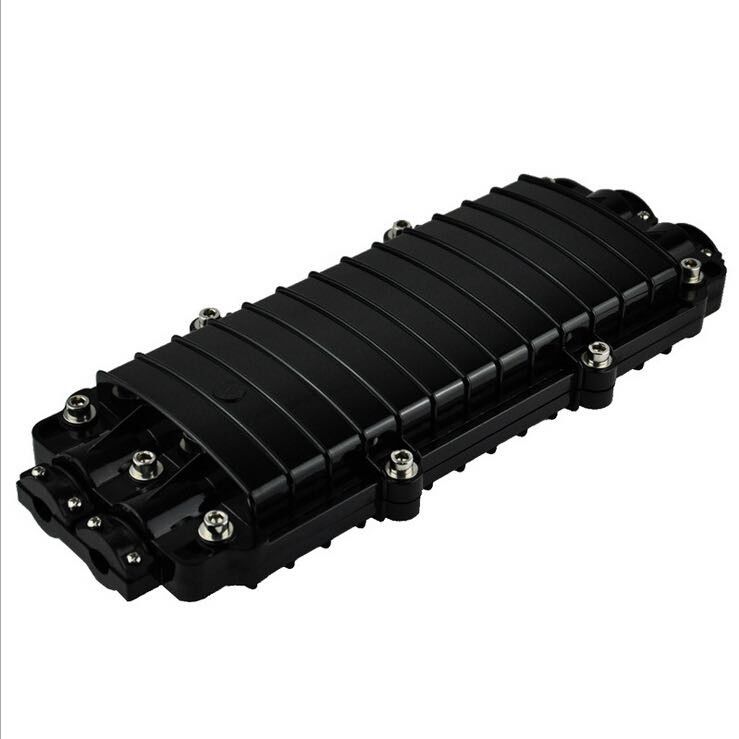

ABS /PPT Black Horizontal Type Fiber Optic Joint Box 24 - 96 Fiber With Splicing 0

ABS /PPT Black Horizontal Type Fiber Optic Joint Box 24 - 96 Fiber With Splicing 1
