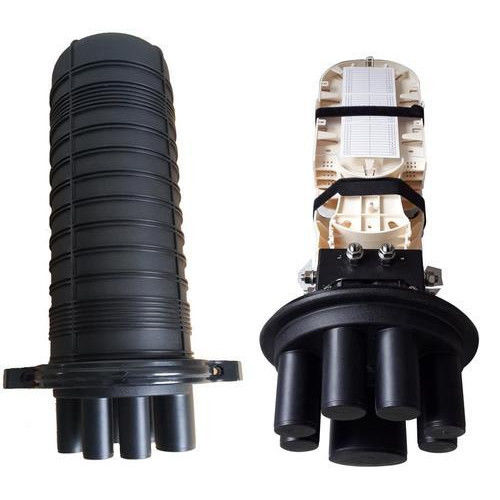

96 FTTH Vertical Type Splice Fiber Optic Joint Enclosure Fiber Management

96 FTTH Vertical Type Splice Fiber Optic Joint Enclosure Fiber Management

    • 96 FTTH Vertical Type Splice Fiber Optic Joint Enclosure Fiber Management
    • 96 FTTH Vertical Type Splice Fiber Optic Joint Enclosure Fiber Management
    • 96 FTTH Vertical Type Splice Fiber Optic Joint Enclosure Fiber Management
  • 96 FTTH Vertical Type Splice Fiber Optic Joint Enclosure Fiber Management

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: New Light
    Certification: ISO,RoHS , CE
    Model Number: 2 in 2 out

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: opp bag + carton box
    Delivery Time: 2-10 working days after received payment
    Payment Terms: T/T, Western Union, MoneyGram,paypal
    Contact Now
    Detailed Product Description
    Material: PP Size: 440*190mm
    Max Capacity: Splice Cores 96 Cores / Trays 4*24f Cable Entrance: 1x Oval Port / 3 X Round Port
    Sealing Mechanison: Heat-shrinkable Seal

    96 FTTH Fiber management fiber optic water proof vertical type splice closure







    vertical type splice closure Features


    Heat shrinkable sealing structure.
    High quality industrial plastic body material.
    1 oval hole and 3 round holes for cable entrance. Suitable for cable diameter 5mm-25mm.
    Suppor t aerial,underground,pipeline,man holes,hand holes. Protection level reaches IP68.
    360 degrees access, fiber bending > 40mm. Maximum capacity: 96 fibers.
    Number of splice trays: 4 pcs x 24F.



    vertical type splice closure parameter



    material



    size max capacity cable entrance Sealing Mechanism Weight Color

    Strengthen Polymer

    Plastic

    H*D(mm)

    440*190

    Splice Cores
    96 Cores

    Trays 4x24F

    1 x oval por t
    3 x round por t

    Heat-Shrinkable

    Seal

    2.3kg Black



    vertical type splice closure Applications:


    Suitable for bunchy & ribbon fibers
    Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
    It's especially applicable to FTTH optical fiber distribution
