Waterproof Outdoor Fiber Optic Joint Enclosure for 24 Core with ABS Material

Brand Name:	New Light
Model Number:	2 in 2 out
MOQ:	1
Price:	7.9~40
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material

Material:

Installation Type:

Pole-moungting / Direct Buried

Fiber Count:

24 Core

Weight And Size:

2.1kg 460**180*110mm

Material:

Alimunium Alloy/PC (Polycarbonate)

Color:

Black Joint Box

Max Capacity:

24 Core,96 Fibers,48 Core

Type:

Horizontal

Supply Ability:

10000

Highlight:

fiber optic joint box

optical fiber joint closure

Product Description

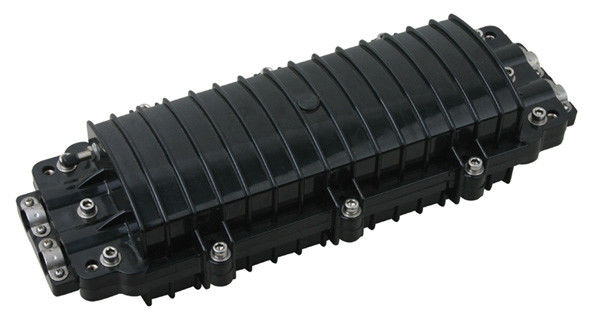

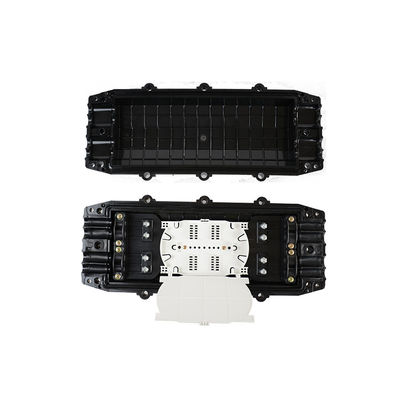

Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material

This waterproof outdoor fiber optic joint enclosure is designed for 24-core applications and constructed from durable ABS material. The enclosure material can be customized according to specific requirements, with options including ABS, PC, ABS+PC, and poly materials. Minimum order quantities apply for custom materials or colors.

Product Specifications

Specification	Details
In and Out Ports	Four ports (two input, two output)
Fiber Optical Cable Diameter	Small port: Φ8~Φ17.5, Big port: Φ10~Φ17.5
Fiber Melting Capacity	Single core: 1~12 cores (extendable to 16 cores); Ribbon beam: 24 cores
Maximum Capacity	Single-core: 72 cores; Ribbon beam: 144 cores
Sealing Method	Mechanical Sealing / Heat-shrinkable sealing
Sealing Tape	Unvulcanized self-adhesive sealing tape
Installation Applications	Aerial, pole-mounting, wall-mounting and direct buried
Material Construction	Closure body: Super ABS/PPR material; Bolts: Stainless steel
Working Environment	Temperature: -5°C to +40°C, Humidity: ≤85% (at +30°C), Pressure: 70Kpa-106Kpa
Weight and Dimensions	Weight: 2.1kg, Size: 460180110(mm)

Included Components

Insulated rubber tape: Two rolls of waterproof tape
Splice cassette: One set of 12 core cassette
Cable fixing device: Two stainless steel bolt sets
Internal hexagonal wrench: Two sets
Heat shrinkable tube: One package
Stainless steel tie: One set

Packaging Information

Packaging Aspect	Details
Packing Method	Packed by carton, then covered with waterproof membrane
Standard Quantity	8 or 10 sets per carton (5% tolerance or as required)
Carton Specifications	Weight: Approximately 24kg, Size: 515425575mm

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-unit orders incur higher costs.

What is the price?

Pricing is quantity-dependent. We provide our best pricing upon receiving your quantity requirements, with competitive rates for larger orders.

Can you quote FOB price?

While we can provide FOB pricing, most shipments are typically sent via air carriers (DHL, TNT, UPS, FEDEX). We recommend providing detailed specifications and quantity for comprehensive pricing including freight. EXW or CFR pricing is often more suitable.

How is your quality assurance?

Our production follows IEC and European standards in near dust-free workshops using imported equipment. All products undergo 100% testing before delivery.

What is your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock, and we accommodate urgent orders.

What is your warranty policy?

Patch cords carry a 2-year warranty from delivery date for non-artificial damage. For artificial damage, we provide free repairs with customer responsible for freight costs.

What is your packaging standard?

We use international export packaging and can print customer logos upon request.

Do you offer OEM/ODM services?

Yes, as a manufacturer we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request a sample?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer. For higher-value products, sample charges apply but are refundable upon order placement.

How do I place an order?

1. Contact us with product specifications and quantity
2. We provide pricing and lead time
3. Upon acceptance, we issue Proforma Invoice
4. Production begins after payment receipt
5. We confirm shipping details and provide tracking
6. We prioritize long-term partnership satisfaction

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
