Product Details:
|
| Connector Type: | MTP Low Insertion Loss | Mode Type: | Single Mode |
|---|---|---|---|
| Core Type: | 8 Core | Cable Color: | Yellow |
| Insertion Loss: | Low Insertion Loss ≤ 0.3dB | Cable Type: | G652D PVC |
| Application: | FTTX, CATV, LAN, Telecom/network, GPON | Cable Length: | Customized |
| High Light: | mpo fiber cable,mpo to mpo cable |
||

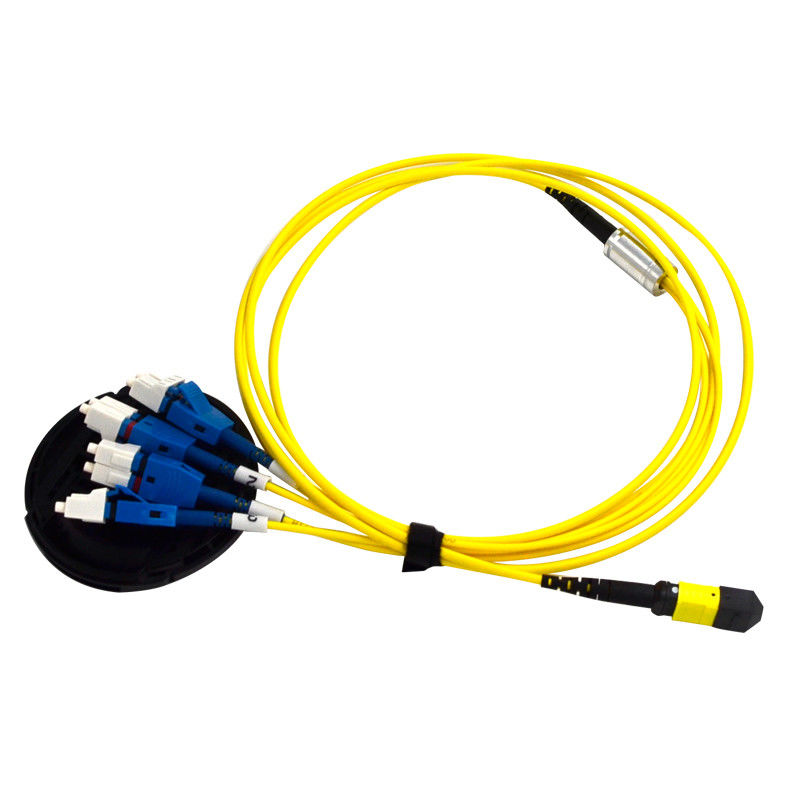

Low loss MTP to uniboot 4 x LC duplex mpo patch trunk cable G652D PVC jumping cable
This MTP- LC uniboot patch cord is low insertion loss standard connector , The international color of low insertion loss MTP connector is yellow , and MTP connector is Original Uscome brand . Other MPO connector only can called MPO .
Another connector in the patch cord is 4 x LC uniboot . it have two fiber core inside of each cable . it can save lots of space and have the same function of data transmission with 2.0 / 3.0mm cable LC .
The length and the connector type can be customized according to your request during the distribution work .
We also have 8 core MPO - LC 0.9mm cable patch cord , 8 core MPO -LC 3.0mm patch cord . 12core MPO - LC 0.9mm cable patch cord , 12 core MPO -LC 3.0mm patch cord ,24 core MPO - LC 0.9mm cable patch cord , 24 core MPO -LC 3.0mm patch cord ,etc .
100% factory tested with traceable test data
- Comply Telcordia GR-326 Core, TIA 604-18 and IEC(61754-3) standards
Ultra high fiber count cabling solution
- Support 400G transmission for Hyperscale Data Center
Available in different fiber modes including singlemode(OS2) & multimode (OM1 ~ OM5) with customized length and structure
- Satisfies client's needs in different industries
Stringent manufacturing process
- Superior optical performance to satisfy customers' need
Parameter
| products name | Low loss MTP to uniboot 4 x LC duplex mpo patch trunk cable G652D PVC jumping cable |
| mode type | single mode |
| cable count | 8 core ( can be 4/8/12/16/24/32 core ) |
| core type | G652D ( OM1/OM2/OM3-150/OM3-300/OM4/OM5) |
| cable color | Yellow ( can be customized according to your request ) |
| cable diameter | 3.0 ( can be 3.0 and customized diameter ) |
| patch cord length | 3 meter ( can be customized according to your request ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.3dB ( low insertion loss can be ≤ 0.35dB ) |
| return loss | ≥25 dB |
| wave length | 1310/1550 |
| core type | 9/125um |
| connector type | female |
| connector color | Yellow |
| ferrule material | plastic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
Connector you can choose :
Related products:
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
