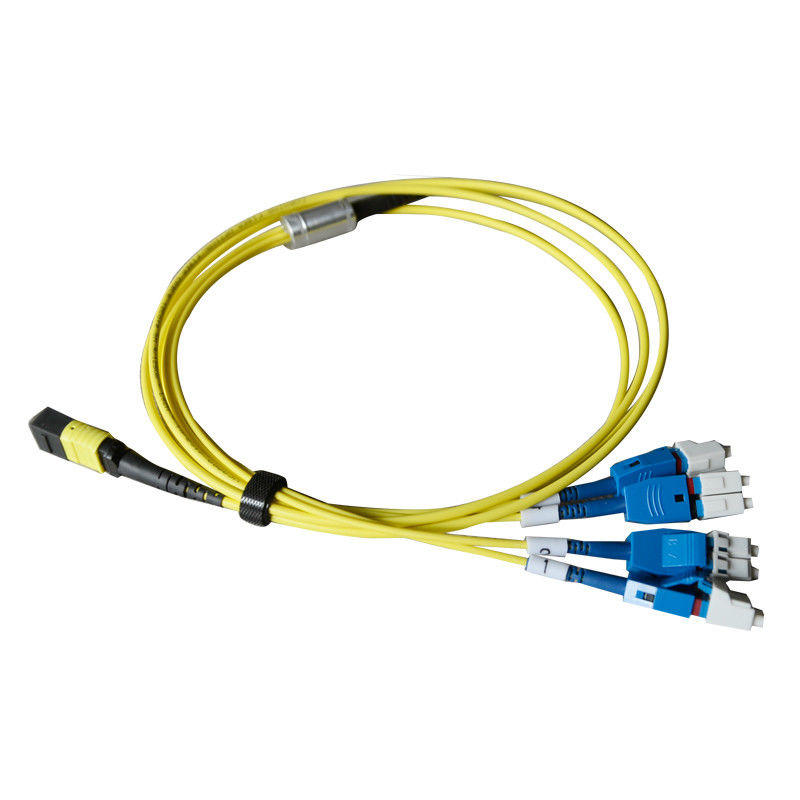

8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable

8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable

    • 8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable
    • 8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable
    • 8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable
  • 8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: New Light
    Certification: CE , ISO , RoHS
    Model Number: MPO / MTP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Price: can be negotiated
    Packaging Details: OPP bag + carton box
    Delivery Time: 2-7 working days ( according to your quantity )
    Payment Terms: T/T, Western Union, MoneyGram , paypal
    Supply Ability: 500 pcs per day
    Contact Now
    Detailed Product Description
    Connector Type: MTP Low Insertion Loss Core Type: 8 Core
    Insertion Loss: Low Insertion Loss ≤ 0.3dB Cable Length: Customized
    Fiber Type: SM Connector Type: MPO-MPO/MPO-LC
    Jacket: PVC/LSZH



    Low loss MTP to uniboot 4 x LC duplex mpo patch trunk cable G652D PVC jumping cable



    MPO to LC breakout cables are available in two types; fibre cables over multimode which are used in the transmission of 40G SR4 or 100G SR4 and 12 fibre cables which are used in 10G/25G duplex networking.

    Complete Connect’s M400 MPO to LC breakout cable is an 8 fibre cable with a polarity that enables one QSFP+ transceiver (or QSFP28 transceiver) to be connected to either 4 x SFP+ transceivers (SFP28) or four LC ports within patch panels or MPO cassettes.



    More information :



    New Light  MTP- LC uniboot patch cord is low insertion loss standard connector , The international color of low insertion loss  MTP connector is yellow , and MTP connector is Original Uscome brand  . Other MPO connector only can called MPO .



    Another connector in the patch cord is 4 x LC uniboot . it have two fiber core inside of each cable . it can save lots of space and have the same function of data transmission with 2.0 / 3.0mm cable LC  .



    The length and the connector type can be customized according to your request during the distribution work .



    We also have 8 core MPO - LC 0.9mm cable patch cord  , 8 core MPO -LC 3.0mm patch cord  . 12core MPO - LC 0.9mm cable patch cord , 12 core MPO -LC 3.0mm patch cord  ,24 core MPO - LC 0.9mm cable patch cord , 24 core MPO -LC 3.0mm patch cord ,etc  .





    FEATURES AND APPLICATIONS


    100% factory tested with traceable test data
    - Comply Telcordia GR-326 Core, TIA 604-18 and IEC(61754-3) standards



    Ultra high fiber count cabling solution
    - Support 400G transmission for Hyperscale Data Center



    Available in different fiber modes including singlemode(OS2) & multimode (OM1 ~ OM5) with customized length and structure

    - Satisfies client's needs in different industries



    Stringent manufacturing process
    - Superior optical performance to satisfy customers' need







    8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable



    Parameter



    products name  Low insertion loss 8 fiber MTP to uniboot 4 x LC MTP trunk cable mpo to lc breakout cable
    mode type  signle mode
    cable count  8 core ( can be 4/8/12/16/24/32 core )
    core type G652D  ( OM1/OM2/OM3-150/OM3-300/OM4/OM5)
    cable color  yellow  ( can be customized according to your request )
    cable diameter  3.0 ( can be 3.0 and customized diameter )
    patch cord length  3 meter ( can be customized according to your request )
    out jacket material  LSZH ( can be PVC or LSZH )
    insertion loss  ≤ 0.3dB
    return loss  ≥25 dB
    wave length  1310/1550nm
    core type  9/125um
    connector type  female
    connector color  yellow (Aqua / Magenta /beige are ok )
    ferrule material  plastic
    operater temperature  -40~ +85℃
    cable print  standard print ( can customized )
    OEM/ODM  acceptable
    warranty  3 years after delivery
    Delivery time  2-15 working days ( according to your quantity )





    Connector you can choose :

    8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable



    Related products:

    8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable

    8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable

    8 Fiber MTP To Uniboot 4 X LC MTP Trunk Cable Mpo To Lc Breakout Cable



    How to order



    1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
    2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
    3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
    4. Coating material : PVC / LSZH
    5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
    6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
    7. Patch cord length : according to your requirement

    8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
