Single Mode Fiber Optic enclosure , SC / FC Patch Panel For Fiber Optic Cables

Brand Name:	New light
Model Number:	24 /48 core ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T, Western Union, MoneyGram ,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Aplication:

Data Centers,pre-terminated Installations

Front Panel:

LC , SC , ST , FC , E2000

Size:

19 Inch

Interface:

Powder Coated

Product Name:

24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel

Tray:

12/24/48/72/96 Fiber

Weight:

Material:

Phosphor Bronze

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Type:

2U,draw Type Fiber Optic Path Panel,1U,Singlemode Or Mutil Mode

Supply Ability:

10000 per day

Highlight:

fiber optic parts and accessories

fiber optic accessories

Product Description

19inch 12 core SC / FC single-mode fiber optic rack mount patch panels

Product description:

The Fiber Optic Terminal Box is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements. We provide is a kind of high quality, micro sized fiber optical termination box made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment. The box can only be installed in the indoor rack mount chassis.

Note: This box does not come with any adapters and pigtails. If you need them, we can install them for you with few

Angled FPP 12 port FC fiber panel s is Slide type box is ranging from 12 ports to 48 ports.

It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.

The rack mount patch panel with 4 cable entry ports on the back maximum is design in sliding structure.

At the back of the box, there are 2 cable fixing bayonets.

The spice tray inside the box is made of ABS material which available for 0.9mm, 2.0mm &3.0mm Fiber Cable.

Each Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.

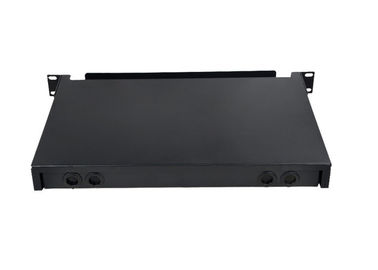

Single Mode Fiber Optic enclosure , SC / FC Patch Panel For Fiber Optic Cables 0

Features:

MTP/MPO standard compliant multifibre connector
LC (SFF data center standard), SC discrete interface
OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)
12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
Polarity A (standard), B or C
Factory terminated and tested
High performance zirconia sleeve adaptors

Parameter		Unit	FDF-1U	FDF-2U	FDF-3U
Fiber Capacity		Core	≤24	≤48	≤72
Number of Tray		PCS	1	2	4
	Height		1U	2U	3U
Dimension	Width	mm	482	482	482
	Depth	mm	305	305	305
Remark			Rack Mount	Rack Mount	Rack Mount

Applications:

· Telecommunication networks

· Local Area Networks

· FTTH

· CATV networks

· Active device termination

Features & Benefits:

· Low excess loss & high performance

· Retractable splicing tray

· Convenience and ease of handling

· Indoor use, outdoor use customizable

Projects	Parameter
Operating temperature	-25℃~+40℃
Storage temperature	-25℃~+55℃
Relative humidity	≤85％(+30℃)
Air pressure	70Kpa~106Kpa
Color	Black

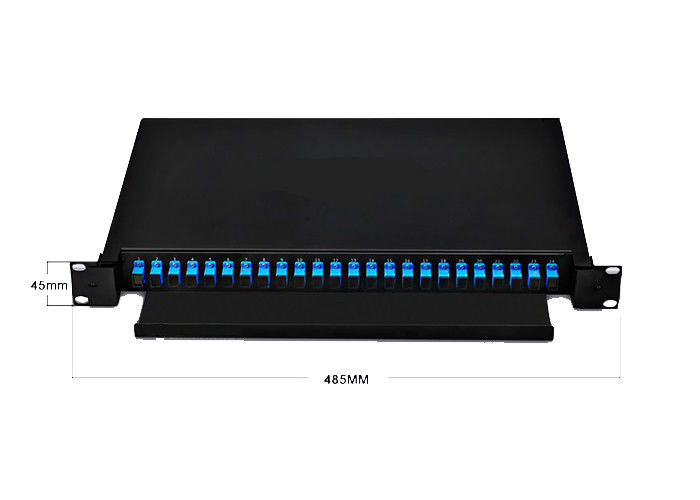

Single Mode Fiber Optic enclosure , SC / FC Patch Panel For Fiber Optic Cables 1

Dimension:

Model	fiber quantity	Height	Dimension(LxWxH)
rack mount	12 /24 /48 /96 core	1U	430354.144mm

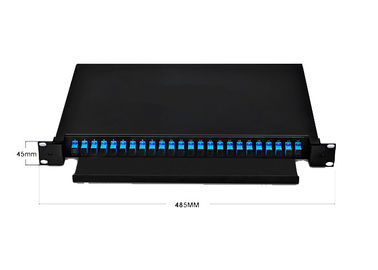

Single Mode Fiber Optic enclosure , SC / FC Patch Panel For Fiber Optic Cables 2
