|Place of Origin:||ShenZhen , China|
|Brand Name:||New Light|
|Certification:||CE , ISO , RoHS|
|Model Number:||LC / APC , LC / PC|
|Minimum Order Quantity:||100pcs|
|Price:||can be negotiated|
|Packaging Details:||OPP bag + carton box|
|Delivery Time:||2-7 working days after receive payment|
|Payment Terms:||T/T, Western Union, MoneyGram , paypal|
|Supply Ability:||12000 pcs / day|
|Connector Type:||LC ( Can Be E2000, SC, FC, ST)||Mode Type:||SM / MM|
|Cable Color:||12 Colors Or One Color||Cable Diameter:||0.6mm / 0.9mm|
|Cable Length:||Can Be Customized||Insertion Loss:||≤0.25dB|
|Return Loss:||APC≥65dB; PC≥55||Delivery Time:||2-7 Working Days|
|Payment Term:||30% Deposit In Advance , 70% Balance Paid Before Delivery|

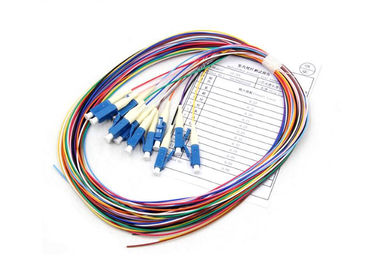

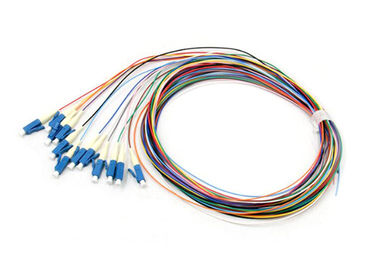

LC Connector 0.9mm cable 12 colors Single Mode Fiber Optic Pigtail
Fiber optic pigtails Overview
Optic fiber pigtail is the most basic component in fiber communication system.By different connector types and different types of optical cable composed of a variety of patch cord, it provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length, 12 colors fiber optic pigtails are consists of 12pcs of Simplex pigtail.12pcs is a unit. Meets Telcordia GR-326 Core and ROHS requirements.
● LAN wiring between different buildings of the enterprise
● Communication base wiring, wiring box wiring
● Optical signal connection in computer room of residential area, industrial area and commercial building
● Optical fiber communication system, cable television network, telecommunications network
● Data center system networks
● High quality Ferrule
● Low insertion loss, high return loss
● Good interchangeability and durability
● Products can be customized according to customer requirements
● Compatible with Telcordia GR-326-core
● Length can be customized
● The connector could be SC, FC, LC, ST, MU, and E2000etc.
● The cable could be G652D, G657A1, G657A2 ,G655, OM1, OM2, OM3, OM4 etc.
● Tight buffer, semi-tight buffer. Loose buffer are available
|Fiber count||12||Fiber Mode||9/125μm|
|Connector Type1||LC||Connector Type2||Unterminated|
|Fiber Mode||SM||Breakout length||1.5m|
|Operating temperature||-40~75°C||Storage temperature||-45~85°C|
Geometric Specification (only for 3D interferometer tested)
|Type||Vertex offset(um)||Curvature radius(mm)||Feber Height(nm)||Angle offset(°)|
|2.5mm UPC||≤50||10~25||(-50, +50)||None|
|2.5mm APC||≤50||5~12||(-50, +50)||8±0.2|
|1.25mm UPC||≤50||7~25||(-50, +50)||None|
|1.25mm APC||≤50||5~12||(-50, +50)||8±0.2|

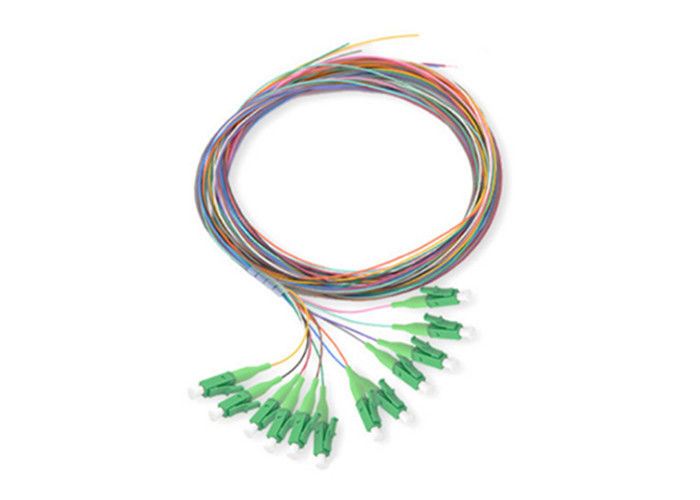

Sketch Map(LC Connector and 12 colors cable)
New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.
Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.
Company have high tech technology, professional R & D team, advanced productionequipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.Products with high reputation and feedback from all customers!
Please contact us if any we can support and cooperate together!
Payment term and delivery
1. Payment : T/T , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity )after received payment .
5. Warranty : 1 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
