1U Fiber Optic Patch Panel Rack Mount Fiber Enclosure Inside Cabling Multimode

Brand Name:	New light
Model Number:	48 /96 fiber ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T, Western Union, MoneyGram ,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Weight:

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Type:

2U,draw Type Fiber Optic Path Panel,1U,Singlemode Or Mutil Mode

Application:

FTTH FTTB FTTX Network,Telecom,CATV,LAN

Installation:

Rack Mount,Desktop/wall Mounting

Color:

Black,Grey,customized

Supply Ability:

10000 per day

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

1U Rack Mount Fiber Enclosure Inside Cabling multimode fiber optic patch panel

Product description:

1U Rack Mount Fiber Enclosure Inside Cabling multimode fiber optic patch panel are available with LC duplex adapters and basic splice management kit which include the splice trays and sleeves. The fiber optic sliding rack mount patch panels are specially designed with a working tray that provides the perfect working platform, even after the patch panels are already installed in the distribution frame. The working tray of the patch panels can be adjusted to 10 degrees or even lowered to 45 degrees working angle which provides simple installation or easy maintenance and access.

Learn more ,pls link :

https://youtu.be/n0NzAOHr10s

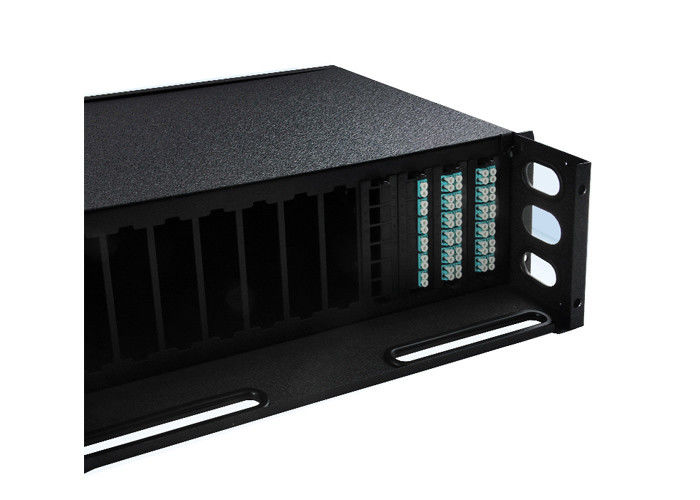

1U Fiber Optic Patch Panel Rack Mount Fiber Enclosure Inside Cabling Multimode 0

1U Fiber Optic Patch Panel Rack Mount Fiber Enclosure Inside Cabling Multimode 1

1U Fiber Optic Patch Panel Rack Mount Fiber Enclosure Inside Cabling Multimode 2

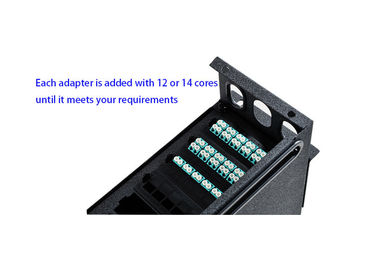

There different models to fit for 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ,e2000 etc . Related fiber accessories and pigtails are optional.

1U Fiber Optic Patch Panel Rack Mount Fiber Enclosure Inside Cabling Multimode 3

Application:

1. Telecommunications subscriber loop

2. Fiber to the home (FTTH)

3. LAN/WAN

4. CATV

Features:

Used to the branch connection of optical cable termination

19'' Standard Structure, Rack mounting

Available for the installation of adaptors

Drawer Structure, Easy for Operation.

Compact design for space saving

Easy for management and operation

Standard size, light weight and reasonable structure

Mechanical and environmental characteristics:

Projects	Parameter
Operating temperature	-25℃~+40℃
Storage temperature	-25℃~+55℃
Relative humidity	≤85％(+30℃)
Air pressure	70Kpa~106Kpa
Color	Black

Dimension:

Model	fiber quantity	Height	Dimension(LxWxH)
rack mount	12 /24 /48 /96 core	1U	430354.144mm

1U Fiber Optic Patch Panel Rack Mount Fiber Enclosure Inside Cabling Multimode 4
